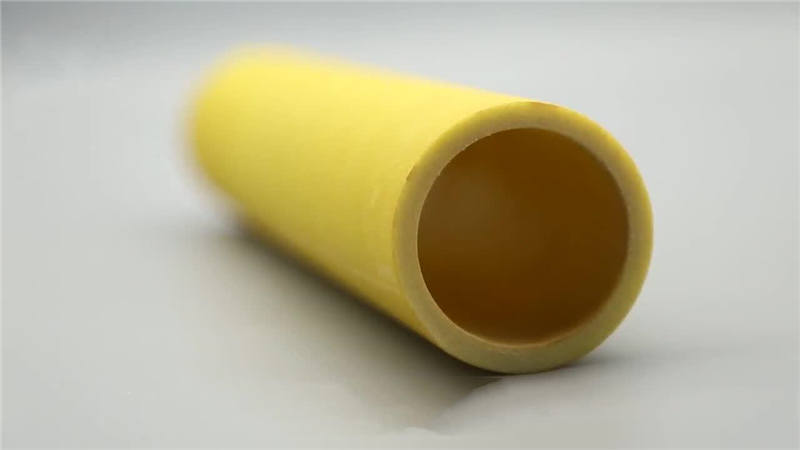

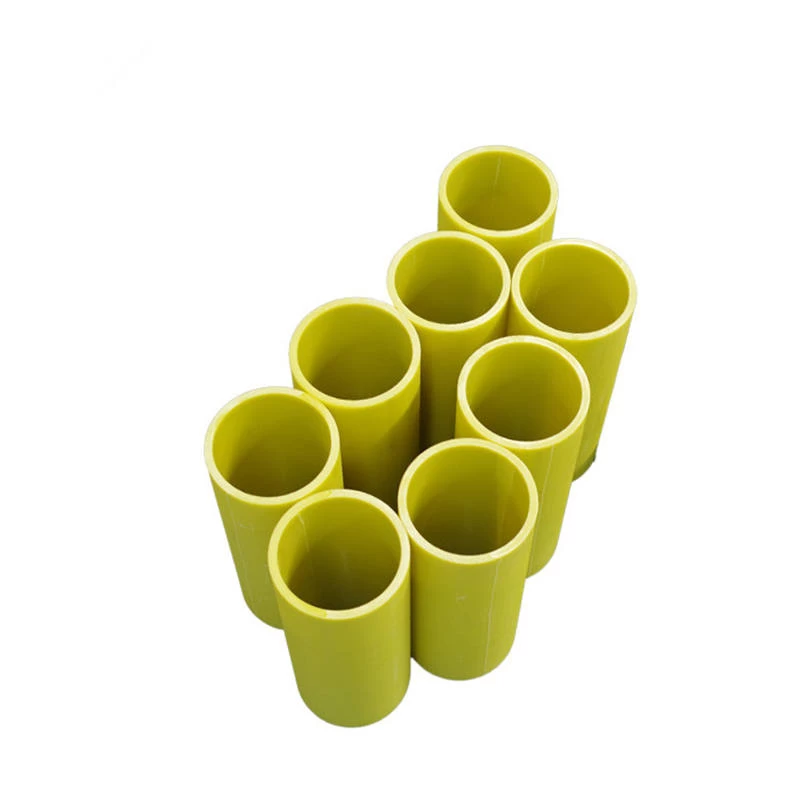

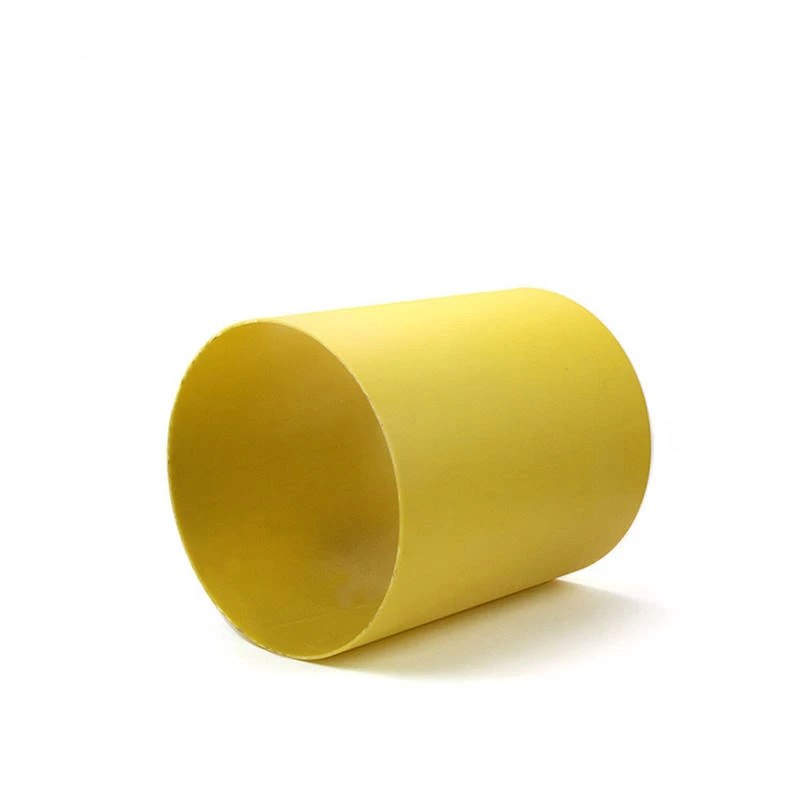

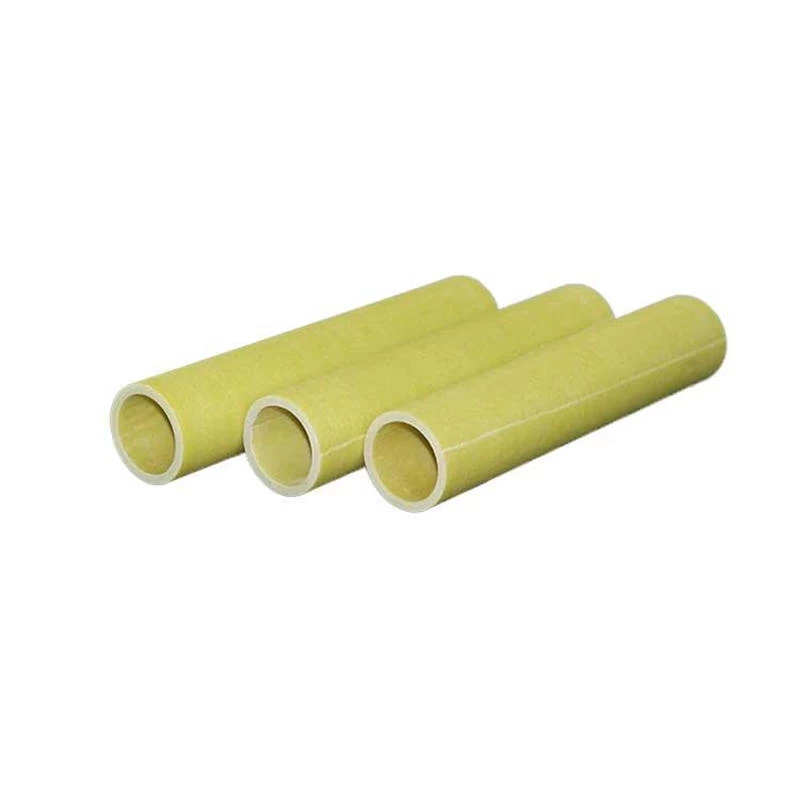

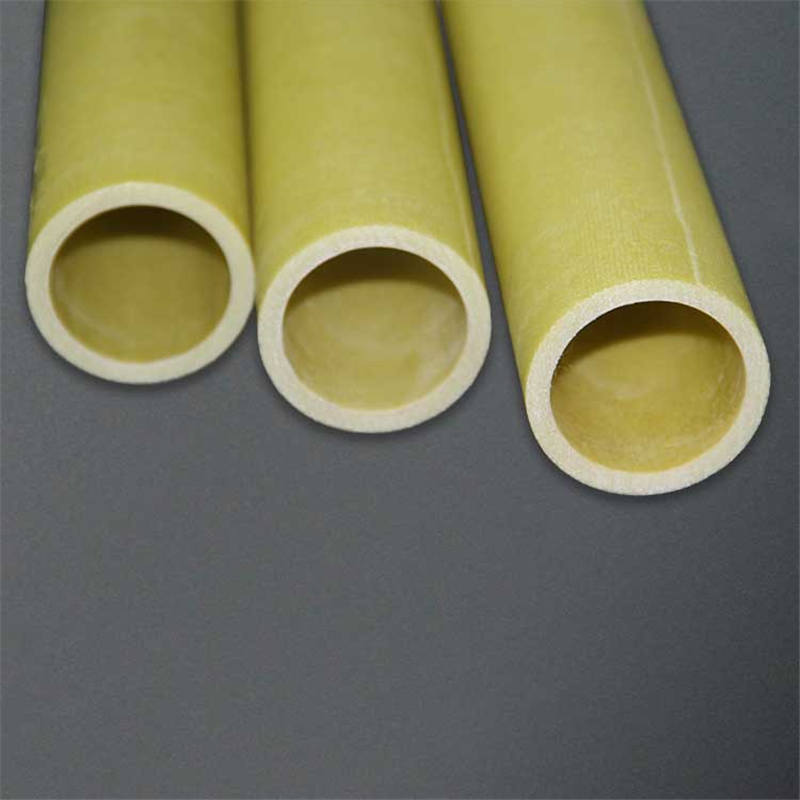

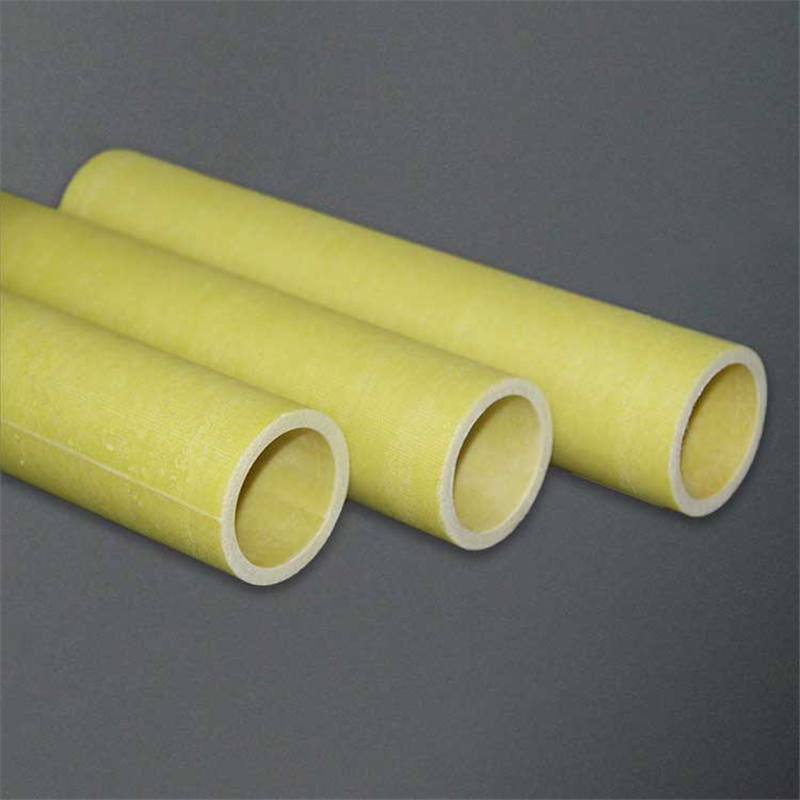

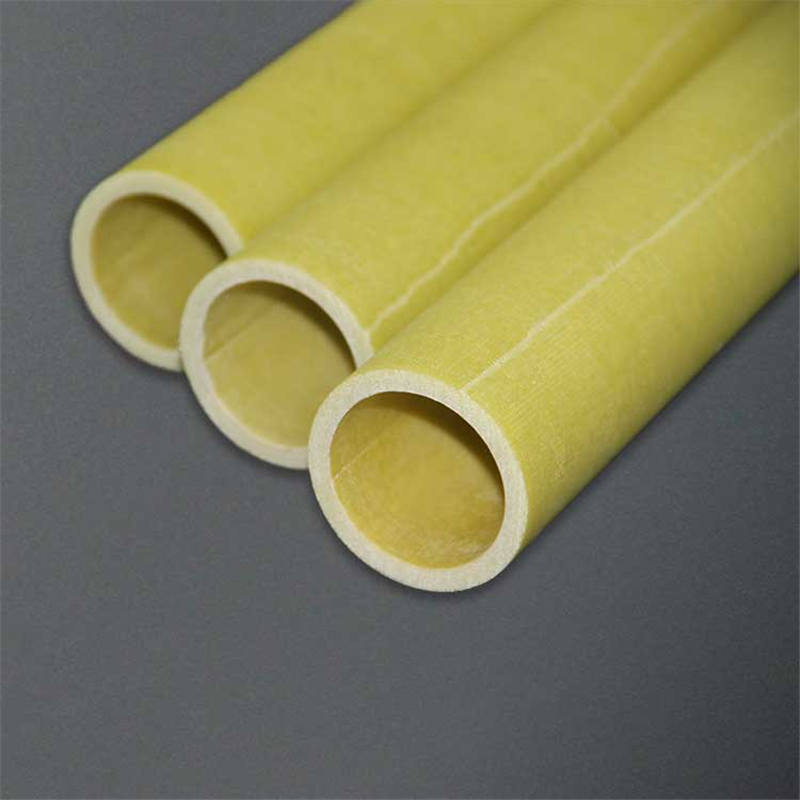

Nema Grade G10 FR4 G11 tubing are made of alkali-free glass fabric and binded with epoxy resin, cast to specific sizes, and then molded or ground to desired specifications.
G10 FR4 G11 tubes also have excellent chemical and electrical resistance under dry and wet conditions.G10 FR4 G11 tubes also exhibit high flexural, impact resistance, excellent mechanical and bonding strength at temperatures up to 130℃.
Suitable for being used as insulation structural parts of mechanical, electrical and electronic equipment. Applications include mast, heat exchanger, coil and inductor.The G10 fiberglass tube is ideal for spacers and standoffs.G10 FR4 G11 tubes are also suitable for bushings.G10 FR4 G11 tubes are available in both standard and custom sizes.
FR4 G10 G11 Epoxy Tube Properties:
|
Item
|
Test method
|
Unit
|
Values
|
|
Physical properties
|
color
|
|
----
|
///
|
|
density
|
IEC 60893-2 8.1
|
g/cm3
|
1.85-2.00
|
|
water absorption
|
IEC 60893-2 8.2
|
%
|
≤ 0.5
|
|
Mechanical properties
|
Tensile strength
|
IEC 60893-2 5.7
|
Mpa
|
≥400
|
|
Flexural Strength(perpendicular)
|
IEC 60893-2 5.1
|
≥650
|
|
Compressive strength
|
parallel
|
IEC 60893-2 5.3
|
≥ 290
|
|
perpendicular
|
≥200
|
|
Shearing strength
|
IEC 60893-2 5.6
|
≥ 89.7
|
|
Impact strength(Charpy)
|
IEC 60893-2 5.5
|
Kj/m2
|
≥ 475
|
|
Electrical properties
|
Volume Resistivity
|
IEC 60089
|
Ω·m
|
≥1.0 x 1012
|
|
Surface Resistivity
|
Ω
|
≥ 1.0×1014
|
|
Electric strength perpendicular to lamination (90℃ in oil)
|
IEC 60893-2 6.1.2
|
kV/mm
|
≥ 10.0
|
|
Breakdown Voltage parallel to lamination
|
KV
|
≥ 45
|
|
Arc Resistance
|
IEC 61621:1997
|
Sec.
|
≥ 180
|
|
Thermal properties
|
Coefficient of Thermal Expansion
|
ASTME 228-11
|
1/K
|
≤2×10-5
|
|
coefficient of heat conduction
|
GB/T 10297-1998
|
W/(m2×K)
|
≤10.79
|
FAQ:
Q:What is g10 fr4?
A:G10 / FR4-epoxy glass fiber laminate
※ The non-alkali glass cloth for electrical engineering is impregnated with epoxy phenolic resin, which is a plate-shaped laminate made by hot pressing
※ Features
Class F (155 ℃) insulating material
Has high mechanical properties and dielectric properties, good heat resistance and moisture resistance, and has good machinability.
※ Purpose
Suitable for insulating structural parts in motors and electrical equipment, including various switches, electrical insulation, printed circuit boards, printed carbon film resistors, potentiometers, power distribution cabinets, computer drilling pads, metal fixtures, PCBs The test stand is made and can be used in wet environment conditions and transformer oil, which is extremely widely used
Q:What is the difference between g10 and fr4?
A:G10 FR4 laminate grades are produced by inserting continuous glass woven fabric impregnated with an epoxy resin binder while forming the sheet under high pressure.G10 and FR4 have extremely high mechanical strength, good dielectric loss properties, both wet and dry. The main difference between NEMA Grades G10 and FR4 is that FR4 is a fire retardant grade of G10. Therefore, FR4 may be substituted where G10 is called out except in applications where halogens are not desired. G10 can never be substituted where FR4 is called for.
Q:What color is g10?
A:The Natural color is Light Green,and common colors include yellow and black.But customized colors are available.
Q:At what temperature does fr4 burn?
A:FR4 is a code for a flammable material grade, which means a material specification that resin materials must be able to extinguish themselves after burning. Generally, the Tg of FR4 is about 130 degrees -140 degrees, but if it is only a short time Such as 1-3 minutes of high temperature time, basically the material can withstand. But if it is a long time at high temperature carbonization will occur
Q:Does g10 absorb water?
A:For the water retention/absorption of G10 material, this isn't an issue either. it specifies a water retention/absorption percentage of 0.001 or less (0.1%) for a piece of G10 that is submerged in water for 24 hours. The number for linen Micarta is somewhere in the 0.006 range, or half-a-percent weight gain after a 24 hour soak. In other words, not much...
