Introduction

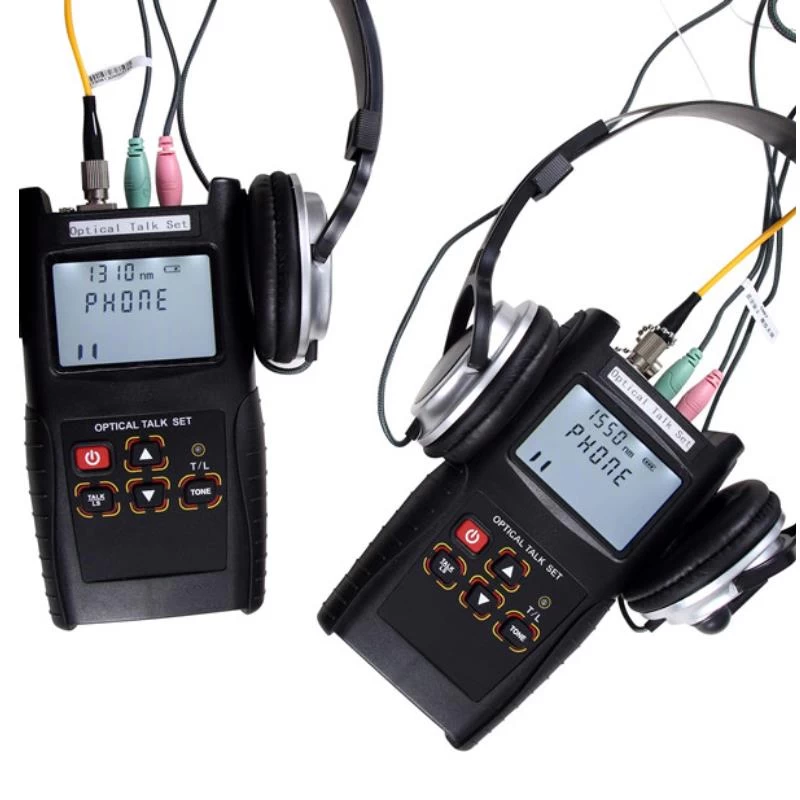

S601 is one intelligent and efficient
instrument that combines in one set the functions of both a digital optical
phone and a stabilized light source.
It is widely used in operations of
installation, optical testing, maintenance and fiber attenuation value testing
in data network, CATV and telecommunication network.
It can carry out full-duplex communication
with high quality connection and not be affected by distance.
Features
-
Full-duplex digital communication with
high quality conversation connection and low background noise.
-
Together with optical clip-on coupler,
enables on line communications available
-
Combining functions of both a digital
optical phone call and a stabilized light source.
-
Large LCD display with backlight
-
Low battery power indication
-
Laser source have the modulation of 270Hz,
330Hz, 1KHz, 2KHz.
Specifications
|
Type
|
S601
|
|
Wavelength(nm)
|
1310(A)/1550(B)
|
|
Fiber type
|
SM
|
|
Dynamic range(dB)
|
45
|
|
Distance(km)
|
120
|
|
Laser Device type
|
FP-LD
|
|
Output adjustment(dB)
|
1
|
|
Output power(dBm)
|
-5～-15
|
|
Output stability(dB,30min,20℃) ¹
|
<0.05
|
|
Modulation
|
CW, 270Hz, 330Hz, 1KHz, 2KHz
|
|
Connector type
|
FC/PC
|
|
Battery
|
3*AA,1.5V
|
|
Battery operation time(h) ²
|
30(Talk set function),50(laser source
function)
|
|
Work temperature (℃)
|
-10～+60
|
|
Storage temperature (℃)
|
-25～+70
|
|
Dimension(mm)
|
161×90×44
|
|
Weight(g)
|
225
|
Remark:
1.Laser
source in modulation, may influence the stability of the output power, this is
the normal case.
2.The battery operation time is defined under the back light off, if the
backlight on, the operation time may shorter.
