High Flow DC Motor Small Water Pump 12V

THERMO Small Water Pump is a brushless DC motor design with dry-running protection, over-current protection, blocked protection, over-voltage protection, under-voltage protection, reverse protection, constant power and over-temperature protection. Its can be used for water circulation, water booster etc.



High Flow DC Motor Small Water Pump 12V



A small water pump is a small-sized pump designed to be submerged in water. It is typically used for water circulation or transfer tasks that require a compact and portable solution. These pumps are usually electrically powered and feature a sealed motor to prevent water damage. They are specifically designed to work efficiently underwater.  Its a high flow water pump with 15L/min Max, 6M Head, Low Voltage 12V that under body safety, IP68 waterproof.



The feature of THERMO Mini Submersible Water Pumps are:



Compact and small size with light weight 535g

Long lifetime ≥200,000 Times (15S ON, 15S OFF)

Lower noise  ≤40dB@1m

Dry-running protection

Over-current protection

Blocked protection

Over-voltage protection

Lower-voltage protection

Over-temperature protection

Constant power

Reverse protection

l PWM Control & FG Signal Customization

Static seal design to prevent leakage

l Liquid temperature range from 0~50℃, Ambient temperature range from -25~55℃

DC Motor Pump

Thermo DC Pumps

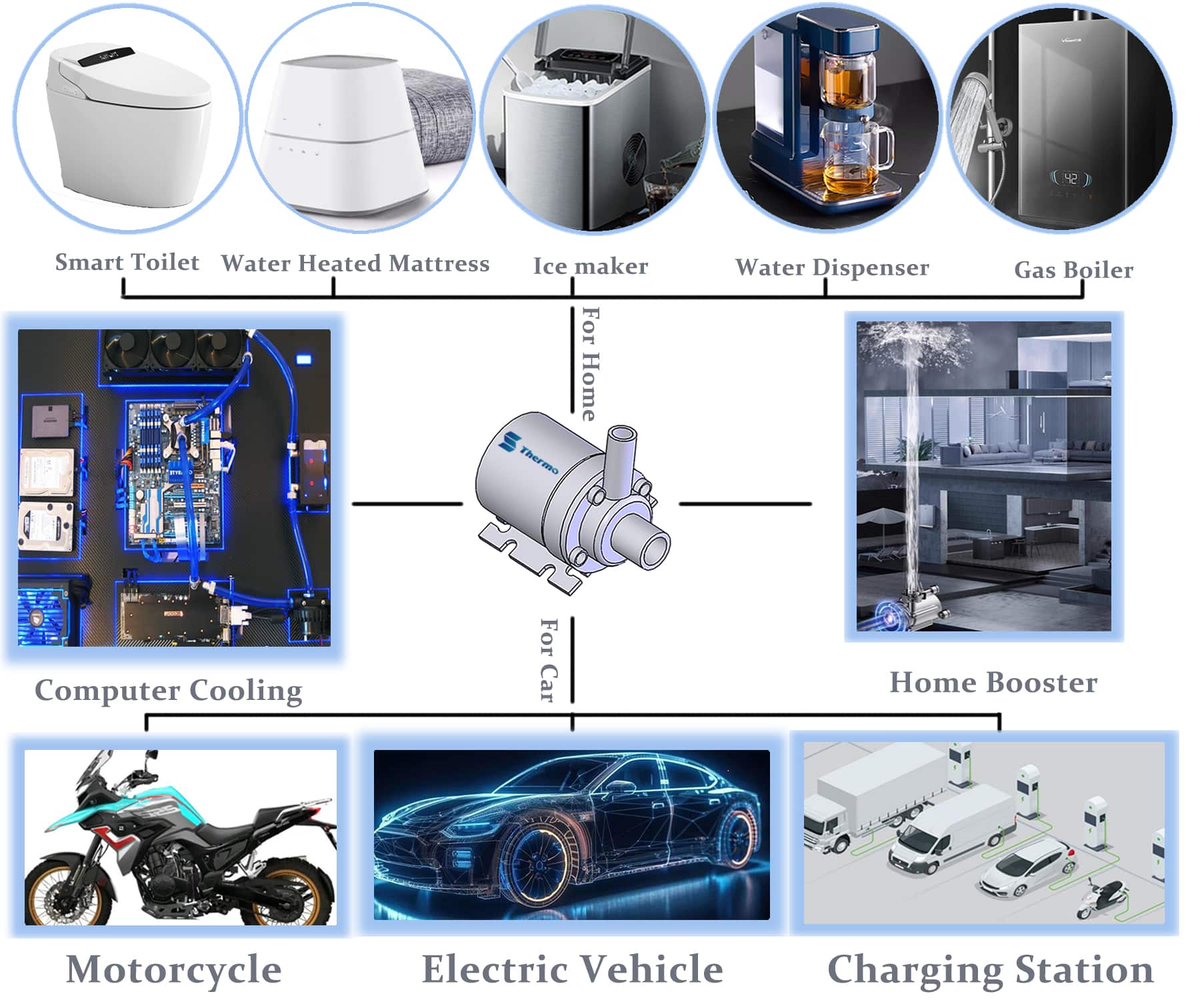

Thermo Pumps win a good reputation in the market after several years. Its with widely applications including: bidet toilet, water heated blanket, water heater, gas boiler electric vehicle, liquid cooled ultra-fast charging, computer cooling, motorcycle, aquarium, ice maker, water dispenser, coffee machine, beverage machine, dishwasher and others kitchen appliances.




Product Tags 12 volt dc pump submersible          small dc water pump          motor pump 12v          dc motor with pump          12 dc pump          dc submersible
