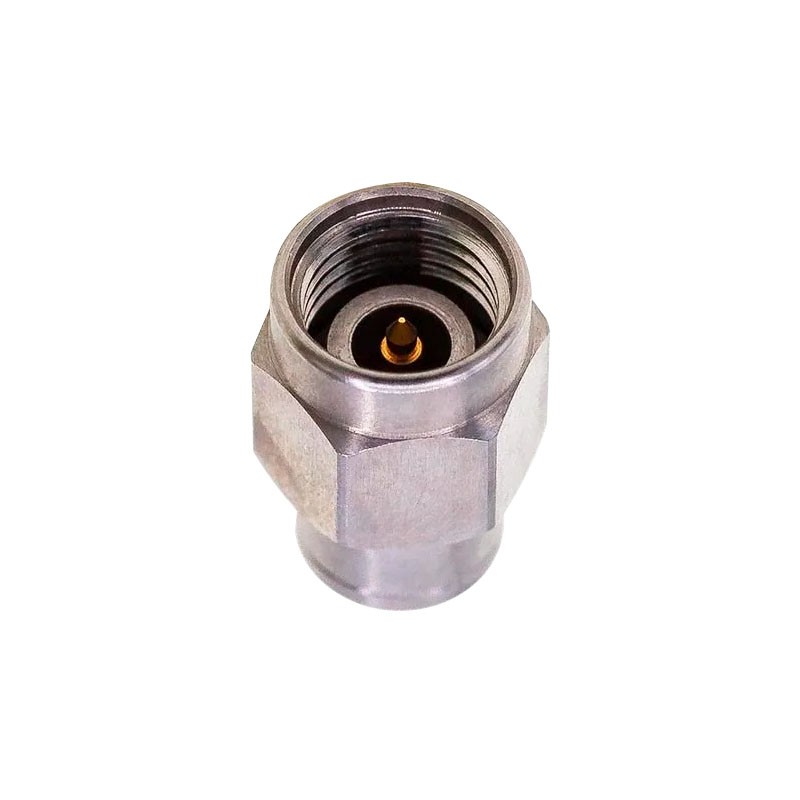

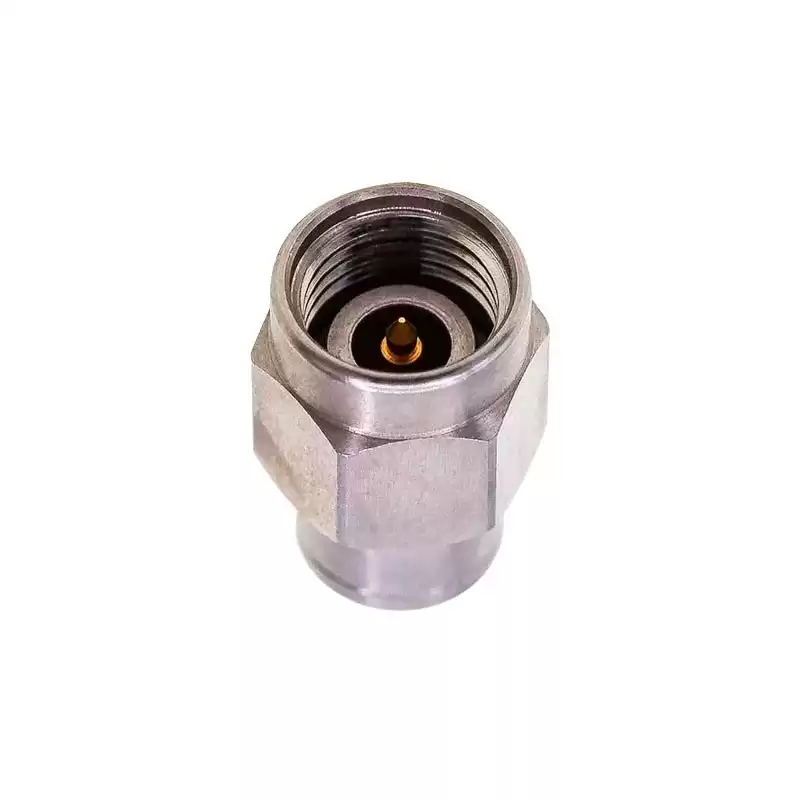

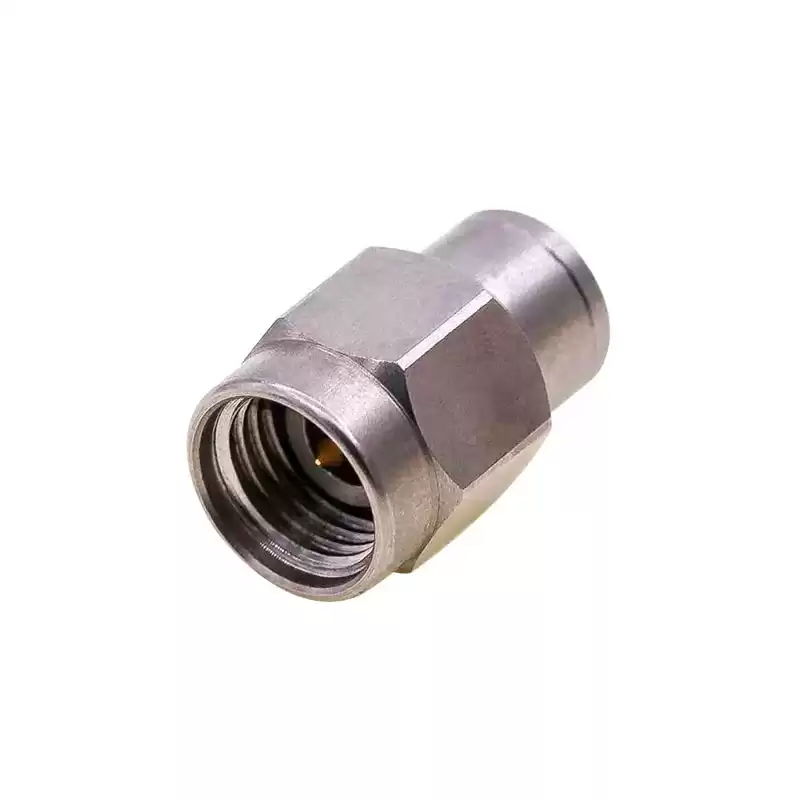

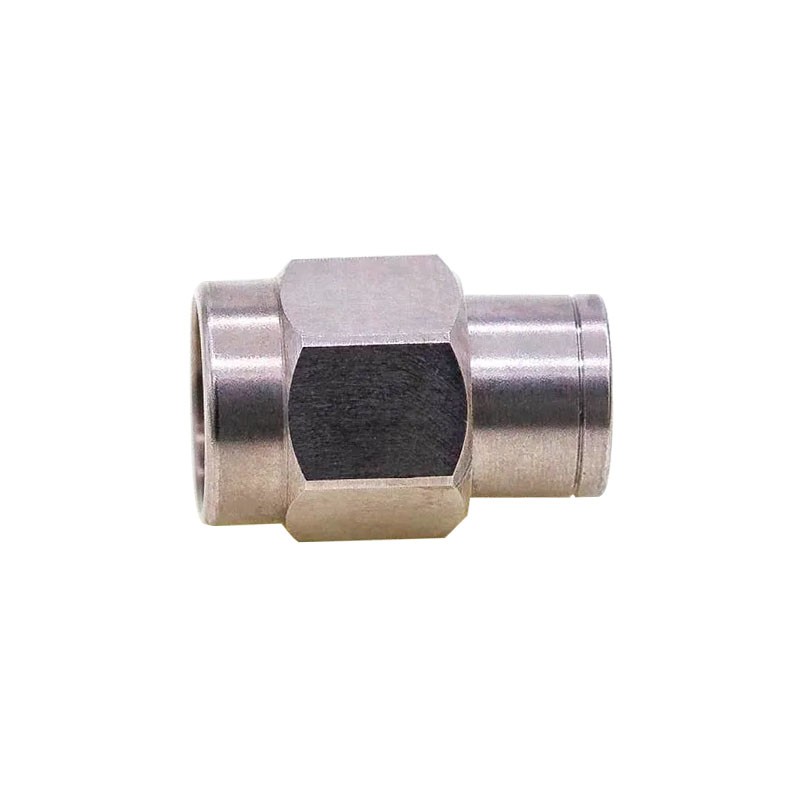

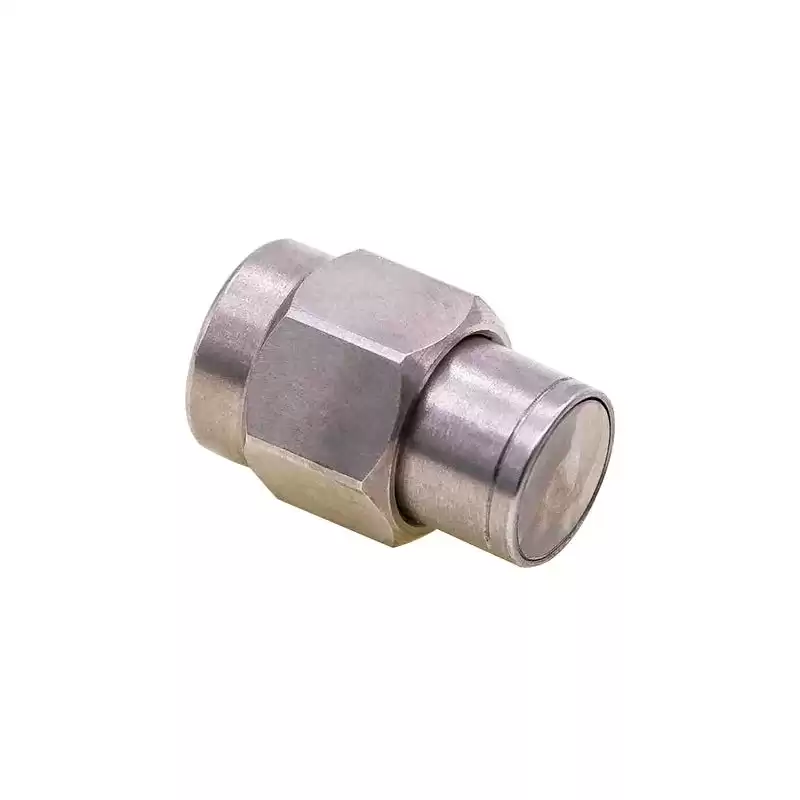

High Frequency 0.5W DC-18G/40G RF Coaxial Terminator 50ohm 2.92mm Male Termination Load
The 2.92mm Male dummy load (also known as 2.92mm Male termination or 2.92mm Male RF load) has maximum frequency up to 40GHz. This ROHO's Termination is a RF load rated to maximum 2W and has a 50ohm impedance;Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~18GHz/40GHz |
| Connector |
2.92mm Male |
| VSWR |
≤1.2 |
| Power |
0.5W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Stainless Steel,Passivate |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
