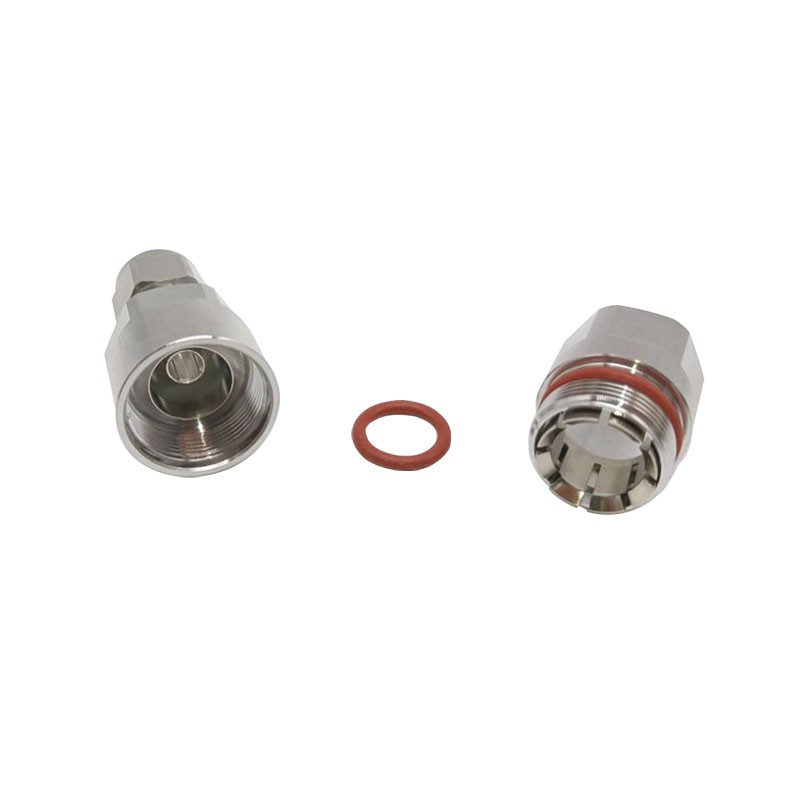

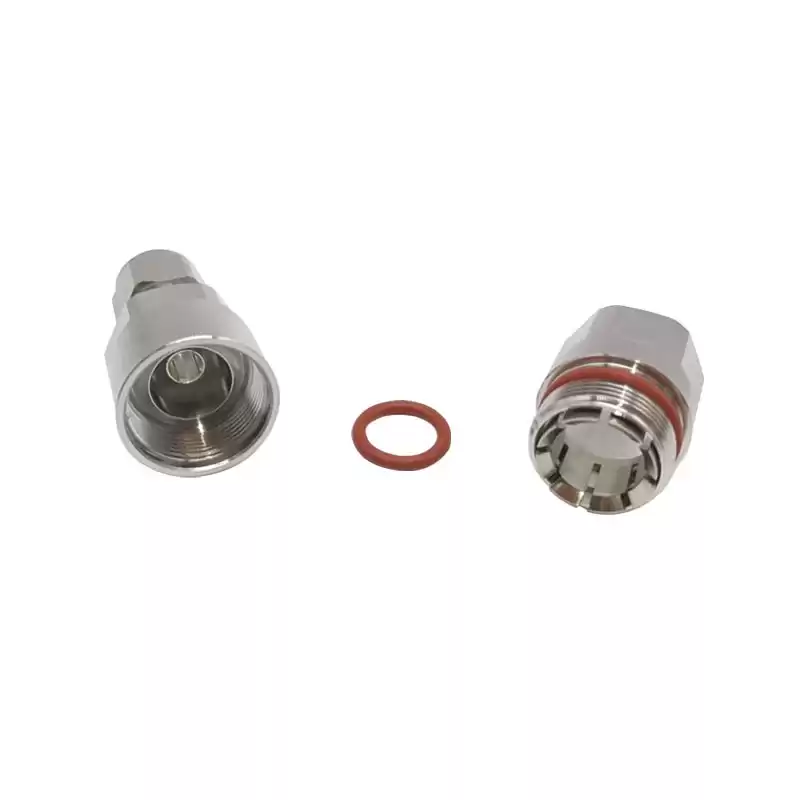

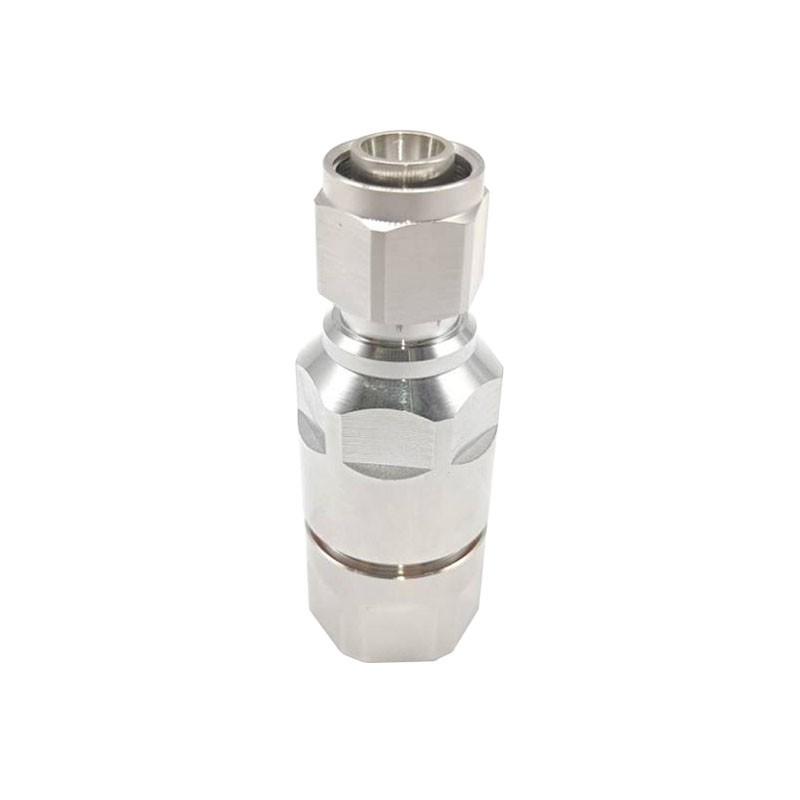

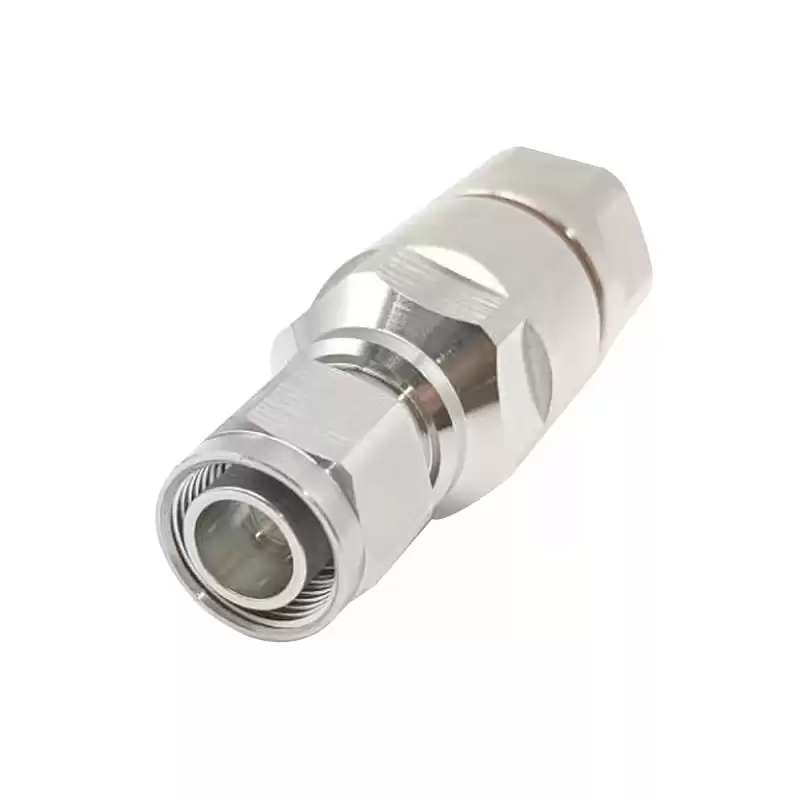

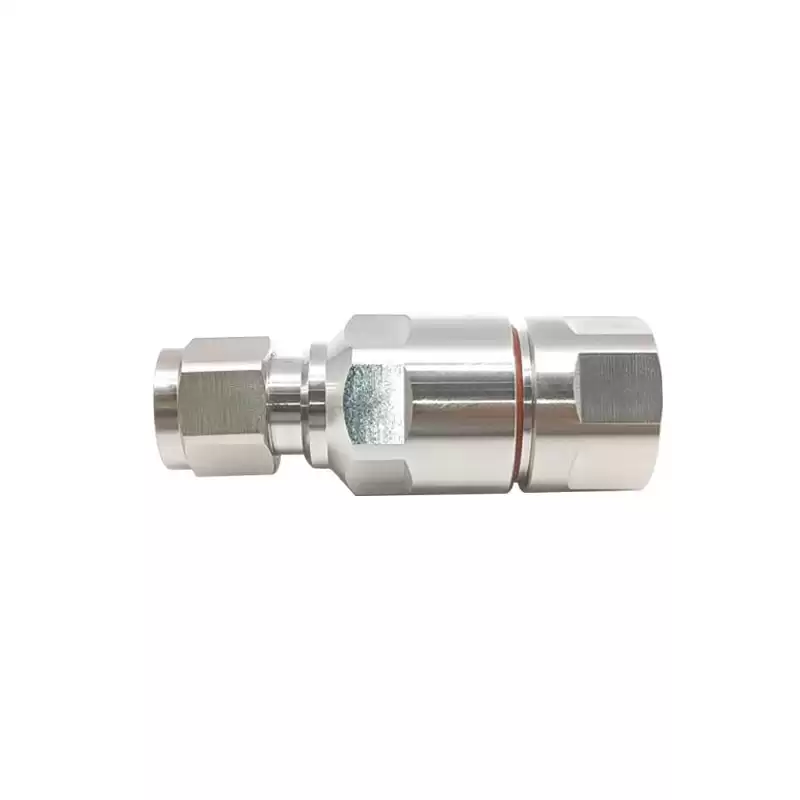

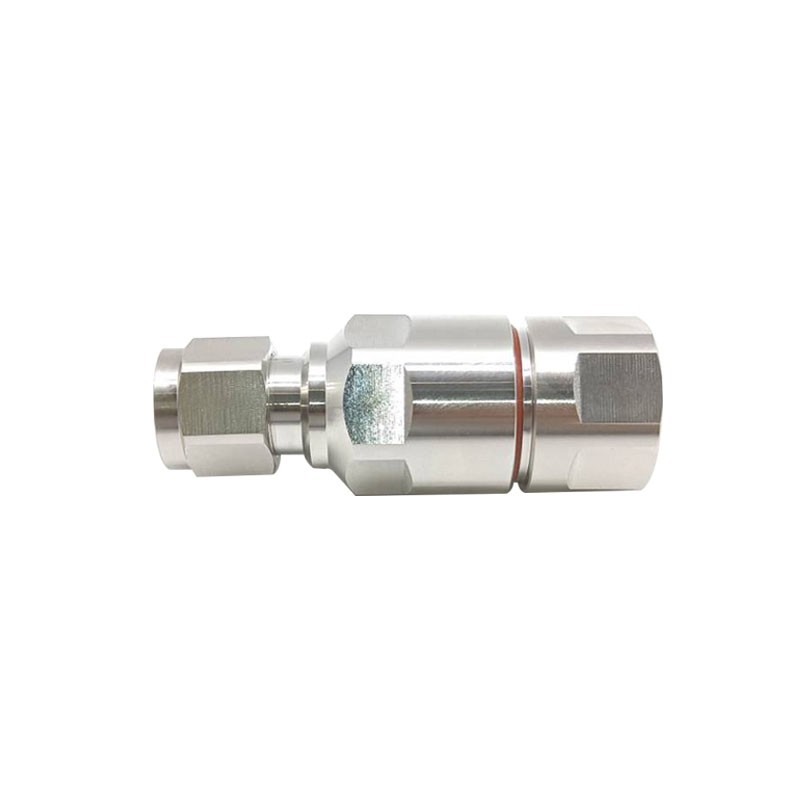

High Frequency 2.2-5 Male RF Coaxial connector for Super flexible 1/2 Cable
The 2.2-5 RF connectors are designed to meet the needs of applications which require low PIM in order to avoid interference in network quality during high speed data transmission. It offers flexibility in installation with the ability to blind mate；This RF coaxial connectors are lightweight and can accommodate various cable types. The robust design makes these connectors ideal for both indoor and outdoor applications.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50 Ohm |
| Frequency Range |
DC 3 - 20 GHz |
| Voltage Rating |
500 Volts RMS Continuous |
| Dielectric Withstanding Voltage |
1500 VRMS Min |
| Insulation Resistance |
3000 MΩ Min |
| Center Contact Resistance |
2 mΩ Max |
| Outer Contact Resistance |
1 mΩ Max |
| RF Leakage |
-100 dB Max (DC - 3 GHz) |
| Insertion Loss |
.03 √(f(GHz)) dB Max |
| Passive Intermodulation (PIM) |
-166 dBc |
| Power Handling |
250 W |
| ENVIRONMENTAL DATA |
|
| Temperature Range |
-40⁰C to +85⁰C |
| MATERIAL DATA |
|
| Bodies |
Brass--ternary alloy plating |
| Pin contacts |
Brass--Au/Ag plating |
| Socket contacts |
Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules |
Copper--ternary alloy plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Small Cells
- Mobile Networks
- Distributed Antenna Systems (DAS)
- Low Power Base Stations
