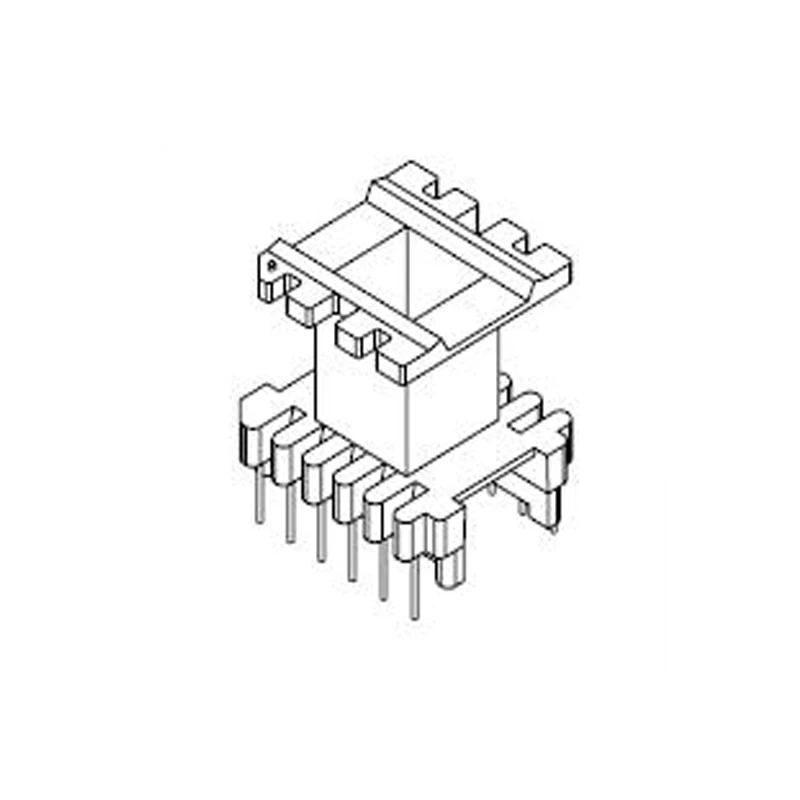

High Frequency EE40 Switching Transformer 6+6 Pins Bobbin

EE40 power supply transformer. Vertical chape EE40 6+6 pin bobbin. Bobbin Size=32.2mmX28.0mmX30.3mm. Pin pitch=5.0mm. Parallel distance=22.5mm. We have bobbin tooling. EE40 electronic transformer used for electrical equipment, medical equipment, communication equipment, UPS and other electronic equipment industry.



Hot selling EE40 vertical transformer bobbin with wire slot 6+6 pins, we supply matched ferrite cores.


Quick Details

Part Number: MCT-EE/EI40

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: High Frequency EE40 Switching Transformer 6+6 Pins Bobbin

Applications: SMPS transformer,UPS,Audio frequency transformer,flyback transformer.

Product Range: Transformers,filters,coils,bobbins,cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

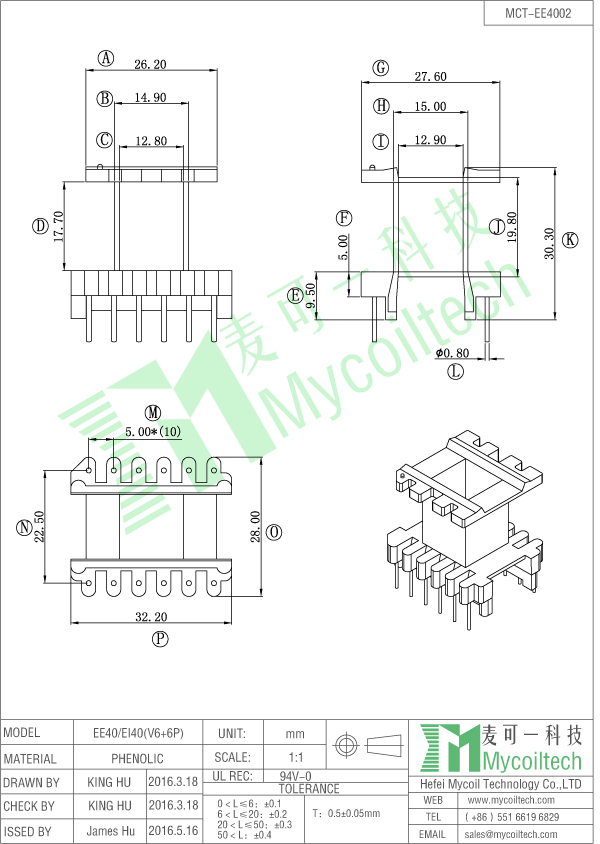

Product Specification

Power supply transformer factory


For more details, please contact us.
