High Frequency EE55 Flyback Transformer Frame

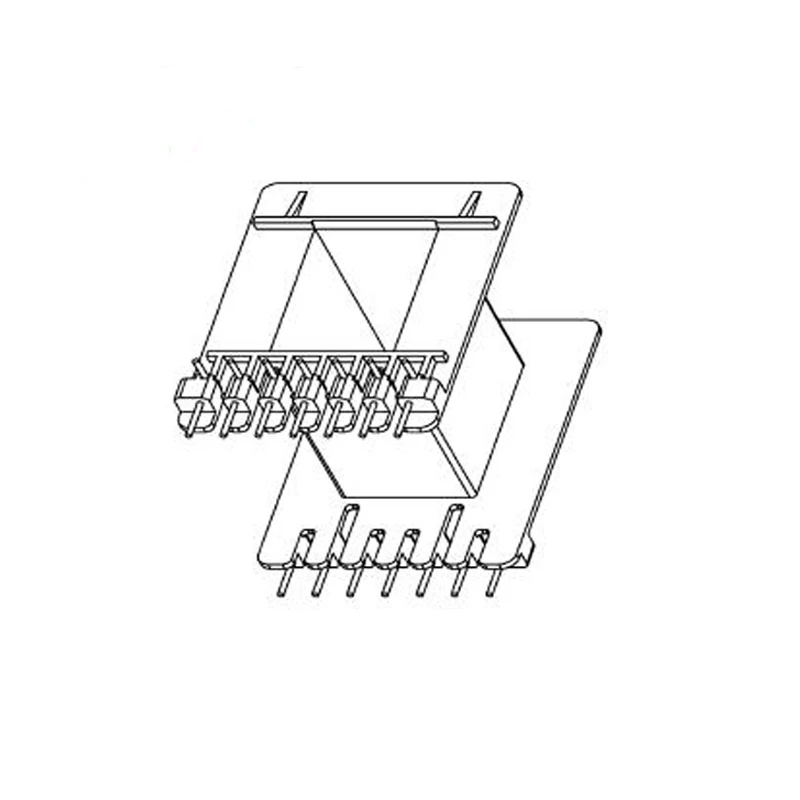

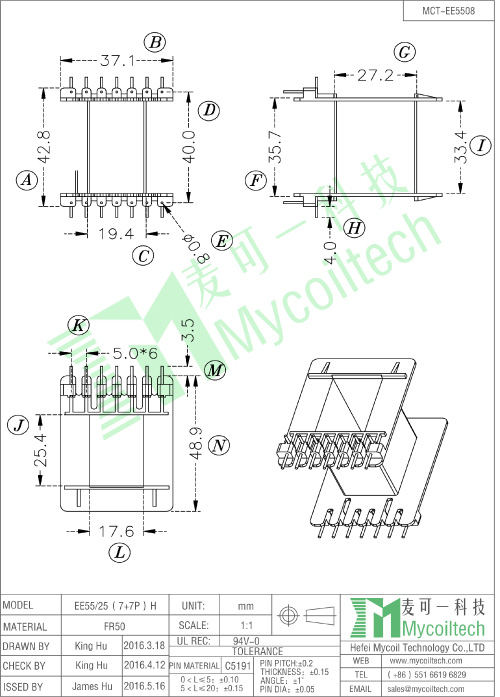

Magnetic core EE55 bobbin 7+7 pins horizontal type bobbin. Parallel Distance=40.0mm. Pin pitch=5.0mm. Bobbin size=48.9mmX37.1mmX35.7mm. EE series ferrite cores widely used in power transformers and low signal applications, welcome customized transformer and inductors.

Facebook Twitter Pinterest LinkedIn 分享

Horizontal EE55 coil former, one section 7+7 pin bobbin, supply EE/EF type ferrite cores, sample is available for testing.


Product Specification

EE55 high frequency bobbin


Welcome customized transformers:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
