High Frequency Electrical Power UU35 Common Mode Choke Inductor

UU35 common mode choke has compact and light weight, low profile in vertical core layout. Both a standard winding and a sectional winding for higher frequency noise is available.



MCTL35U Series Standard Winding EMI Suppression Filters For AC Power Lines have many applications, such as switching power supplies, communications equipments, household appliances, computers switching power supply, medical equipments, electronic components, lighting equipments.


UU common mode choke mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. If you are looking for ferrite common mode choke coils/filter inductor, you can find it by different electrical parameters, such as inductance, rated current and DCR. We also can design as your requirements, you just offer us your specification or drawings.


Quick Details

Part No: MCTL35 Series Standard Winding

Brand name: MCT

Rated voltage:85~265VAC,50/60Hz

Custom made: Available

Insulation resistance:100MΩ @500VDC

Logo: Can be customized

Turns ratio:1:1±2%

Packing: Carton,can custom

Hi-pot: 2500VAC/1mA/60Sec

Certification: ISO9001,ROHS,CE

Testing frequency:1KHz/0.25V

OEM: Available

Operating temperature:-40°C~+105°C

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: High Frequency Electrical Power UU35 Common Mode Choke Inductor

Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Specification

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTL35U047A175

47.0

0.520

1.75

MCTL35U033A200

33.0

0.375

2.00

MCTL35U022A250

22.0

0.250

2.50

MCTL35U010A350

10.0

0.150

3.50

MCTL35U005A450

5.60

0.090

4.50

MCTL35U003A550

3.30

0.050

5.50

MCTL35U001A700

1.50

0.030

7.00

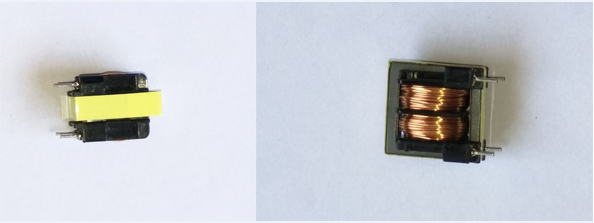

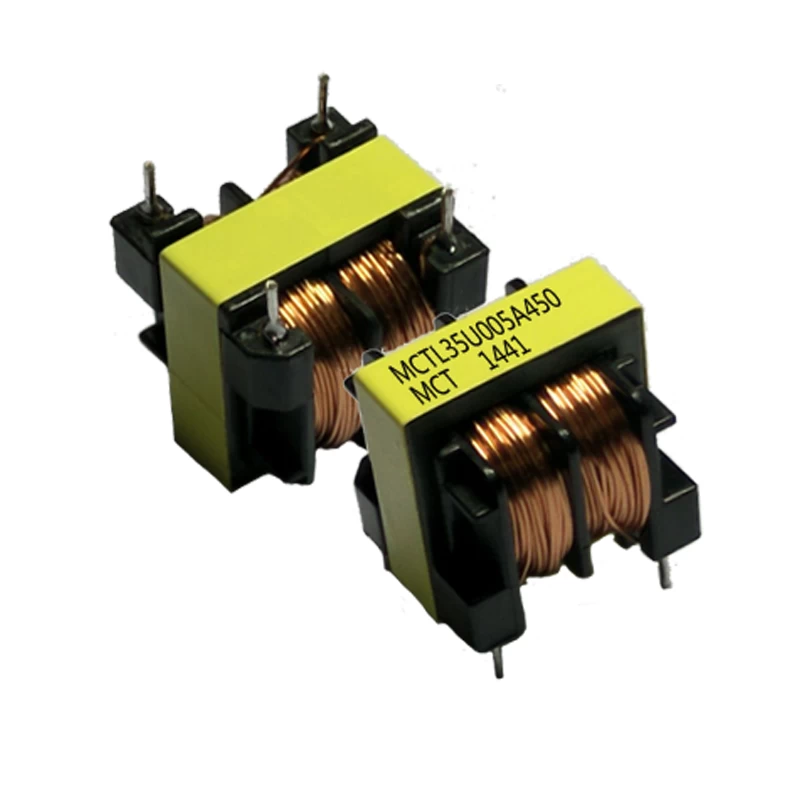

 UU35 Common Mode Choke Coils Inductor

Different appreance is also customied designed by our engineers!


If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Lily Yu
