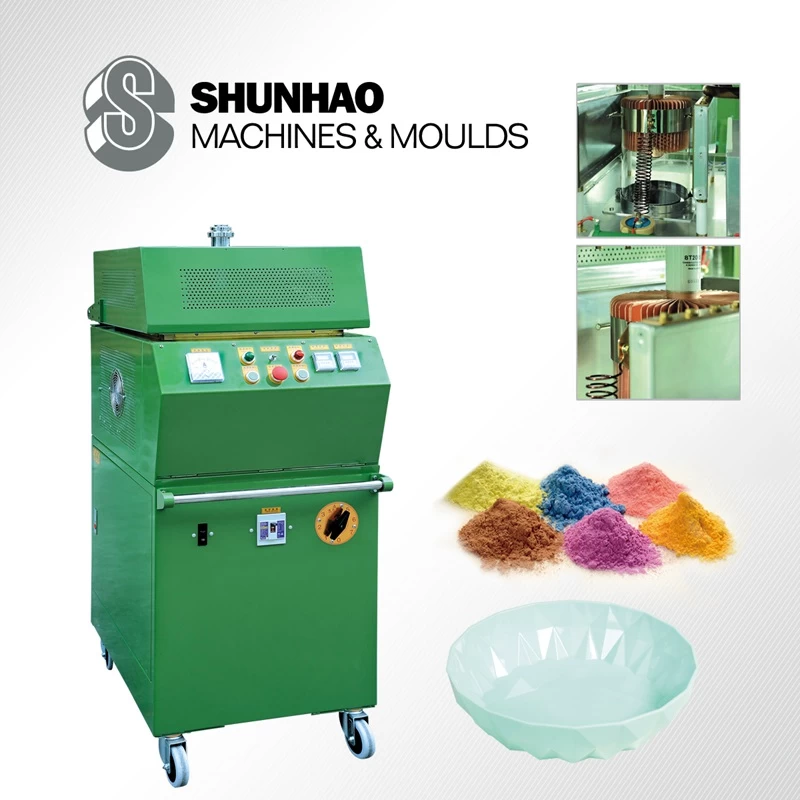

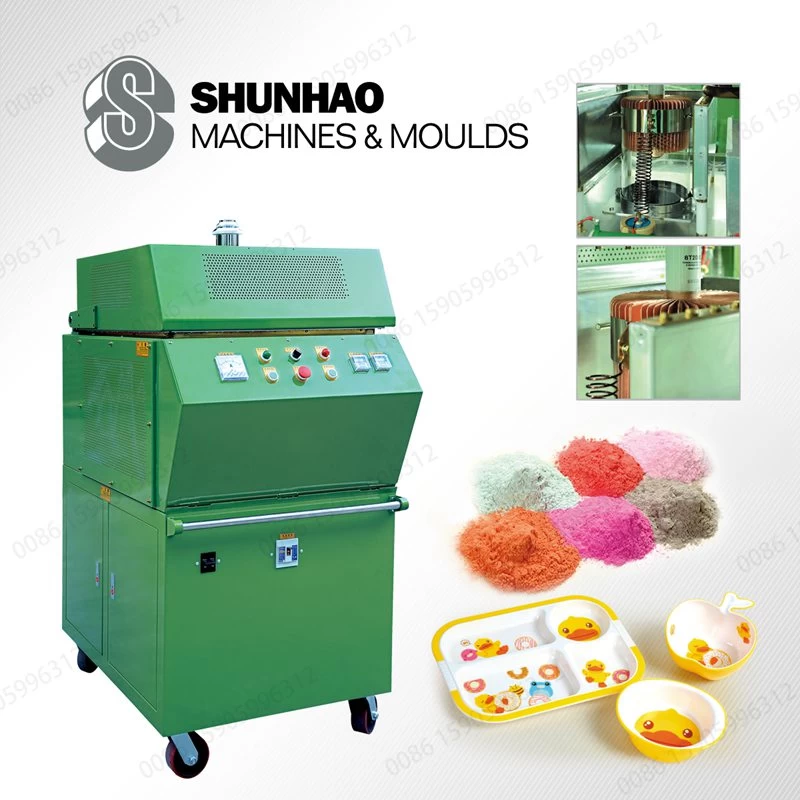

5KW HIGH FREQUENCY PREHEATER
Drying Material Reference Amount
500g raw material
240g raw material
High frequency preheater range of use
1. Widely used in bakelite; Preheat electrical parts and melamine molding
2. Widely used in semiconductor IC; The charger; Forming of electronic devices
Characteristics of high frequency preheater
1. Motor type upper cover closing mechanism, large opening angle of upper cover, correct locking position, and strong operability.
2. Simple panel, easy to operate, extremely convenient storage of raw materials, less adjustment parameters can be operated by anyone.
3. Multiple safety functions and equipment guarantee devices.
* Multiple safety machine backup/high voltage grounding/upper cover locking confirmations witch/high cycle delay guarantee to close.
* Double guarantee device for main and secondary power switch.
* On the generator vacuum tube, there is a cooling air pressure guarantee switch.
* Abnormal startup can be prevented in the Oscillation circuit.
4. Three layer dust filter protection device
Technical Parameters
|
No
|
Content.
|
HGY-520
|
|
1
|
Output
|
5KW
|
|
2
|
Power Source
|
3Φ220V
380V
415V
|
|
3
|
Power Input
|
11KVA
|
|
4
|
Oscillation Frequency
|
62MHZ
|
|
5
|
Vacuum Tube
|
7T699RB
|
|
6
|
Voltage Switching
|
3-stage
|
|
7
|
Time
|
999.9S
|
|
8
|
Preheating Power
|
110℃ Within 60 secs
|
|
9
|
Phenolic Resin
|
1200gr
|
|
10
|
Melamine Moulding
Compound
|
1000gr
|
|
11
|
Urea Moulding
Compound
|
1000gr
|
|
12
|
Electrode Size
|
310×360m/m
|
|
13
|
Electrode Spacing
|
30-70m/m
|
|
14
|
Machine Dimensions (W
D H)
|
600×850×1520
|
|
15
|
Machine Weight
|
260kg
|
■ PS: Specifications subject to change without notice.
