Product Name
698-3800MHz Panel Directional Antenna in High Gain
Product Features
◆ with Wide Frequency Band 698-3800MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Gain with 7dBi
◆ Widely used for In-building Solutions
Panel Antenna Operates From 698 MHz to 3800 MHz With a Nominal 7 dBi Gain 4.3-10 Female Input Connector
Antenna from Maniron is featured in our extensive in-stock radio frequency directional antenna selection.It has a frequency range of and 7 dBi gain.
Technical &Mechanical Specifications
|
Model No.
|
MNA-738-7dBi-41F
|
|
|
|
Freq(MHz)
|
698-960
|
1710-2700
|
3200-3800
|
|
Gain(dBi)
Front to back ration
|
5±1dBi/12dB
|
7±1dBi/12dB
|
7±1dBi/18dB
|
|
Beam width
|
H 90±15°/V:85°
|
H 70±15°/V:65°
|
H 55°/V:45°
|
|
Polarization
|
Vertical
|
|
|
|
PIM@2X33dBm
|
≤-150dBc@2x33dBm
|
|
|
|
Impedance
|
50 ohm
|
|
|
|
Maximum power(W)
|
50
|
|
|
|
Connector
|
4.3-10-Female
|
|
|

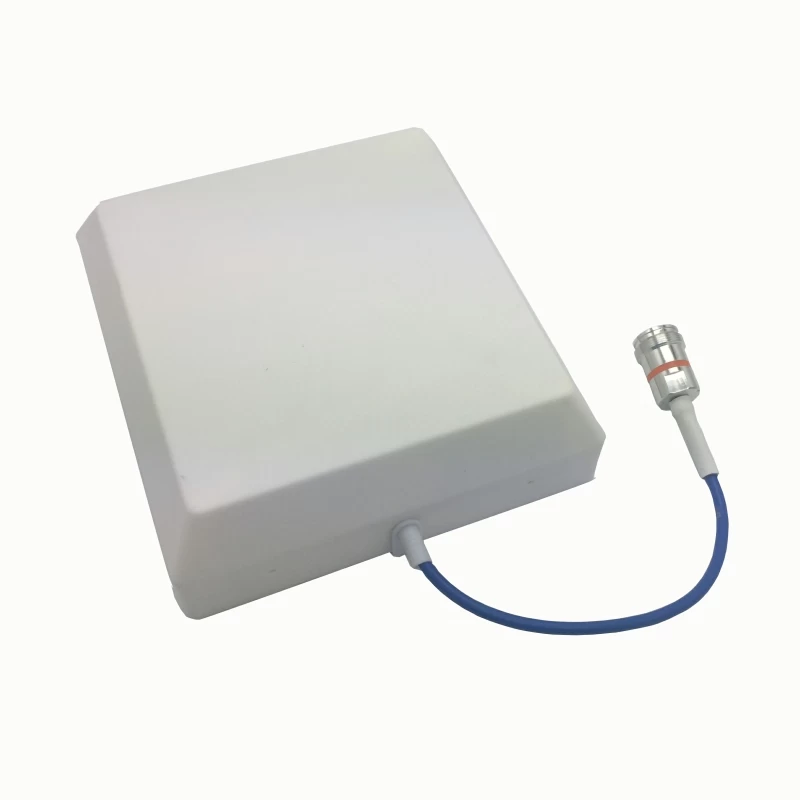

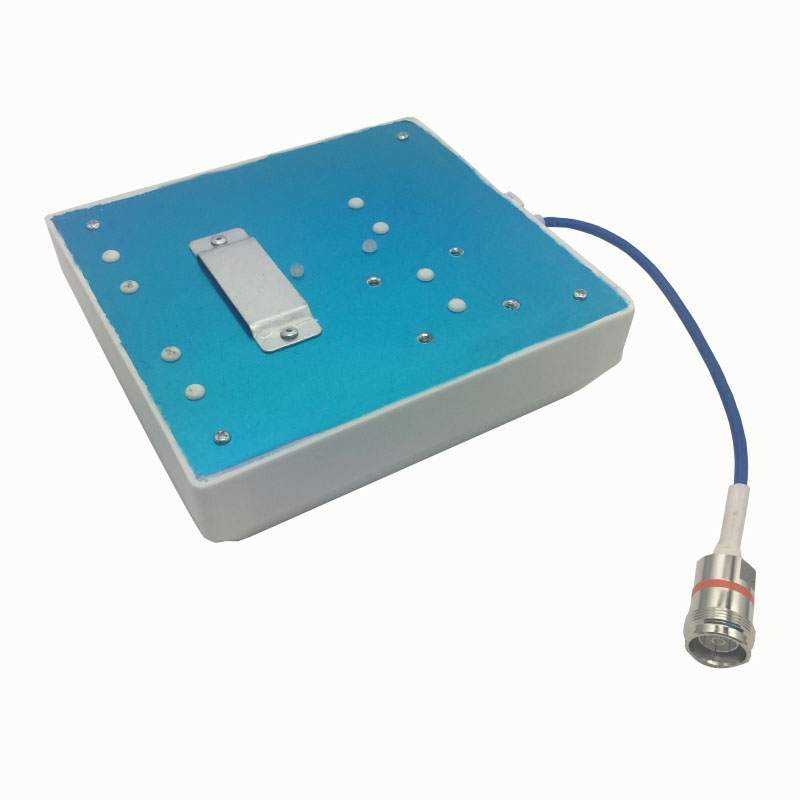

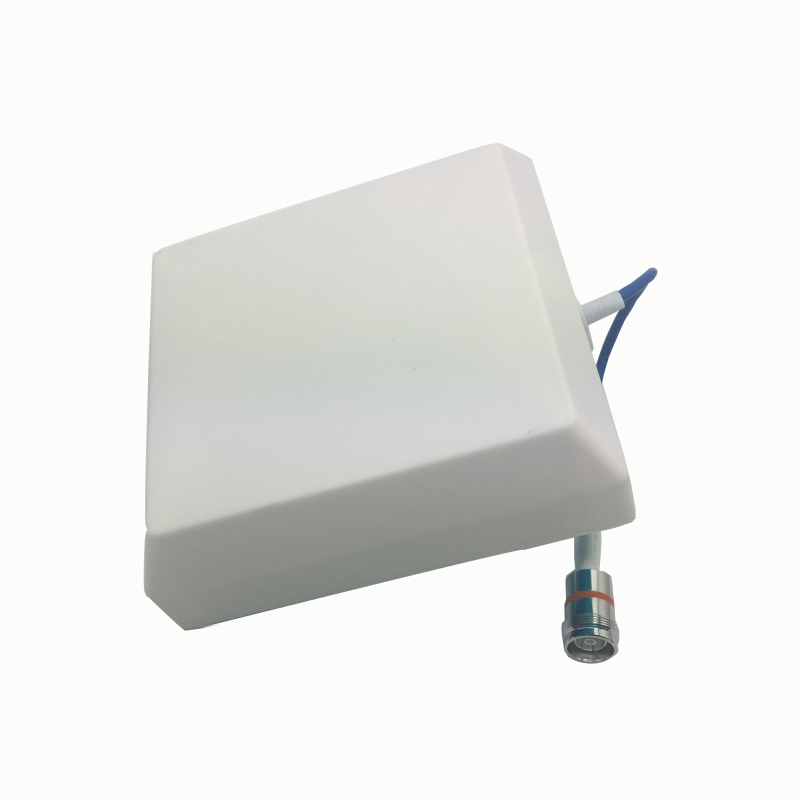

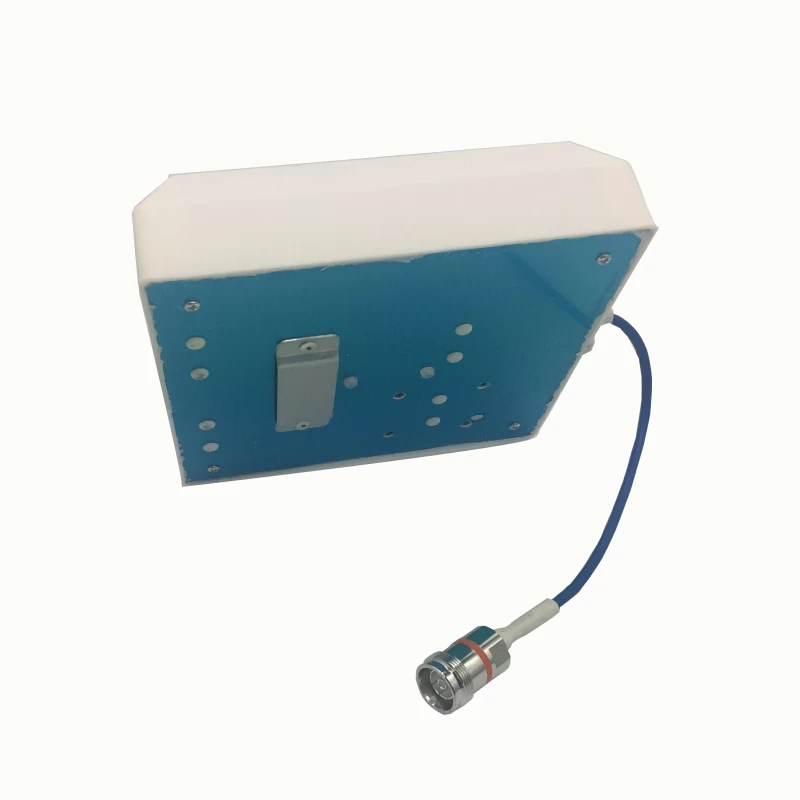

Products Pictures
