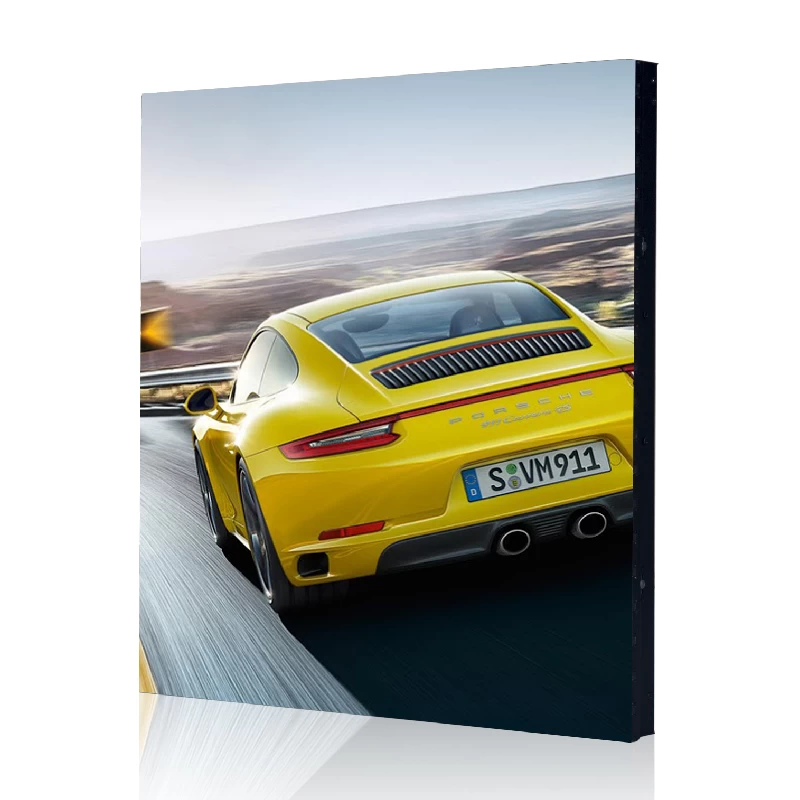

High Refresh 2200Hz High Gray Scale P33.33 Outdoor Waterproof IP65 Transportation LED Signs
Features of 1066x1066mm cabinet size outdoor transportation screen P33.33:
1、High brightness reach to 5000cd/㎡.
2、High waterproof and dust-proof with IP65.
3、Using different control system according to the different size and different environment.
4、Q5 for outdoor usage with big viewing angle.
5、With double door design, could use in different applications.
SPECS
Pixel Pitch
|
33.33mm
|
LED Package
|
Q5
|
Pixel Density
|
900 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 5000cd/㎡ @ white color
|
Refresh Rate
|
Up to 2200Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
266x266mm
|
Cabinet Size
|
1066x1066mm
|
Cabinet Material
|
Iron
|
Viewing Distance
|
33-100M
|
Drive Mode
|
static
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
