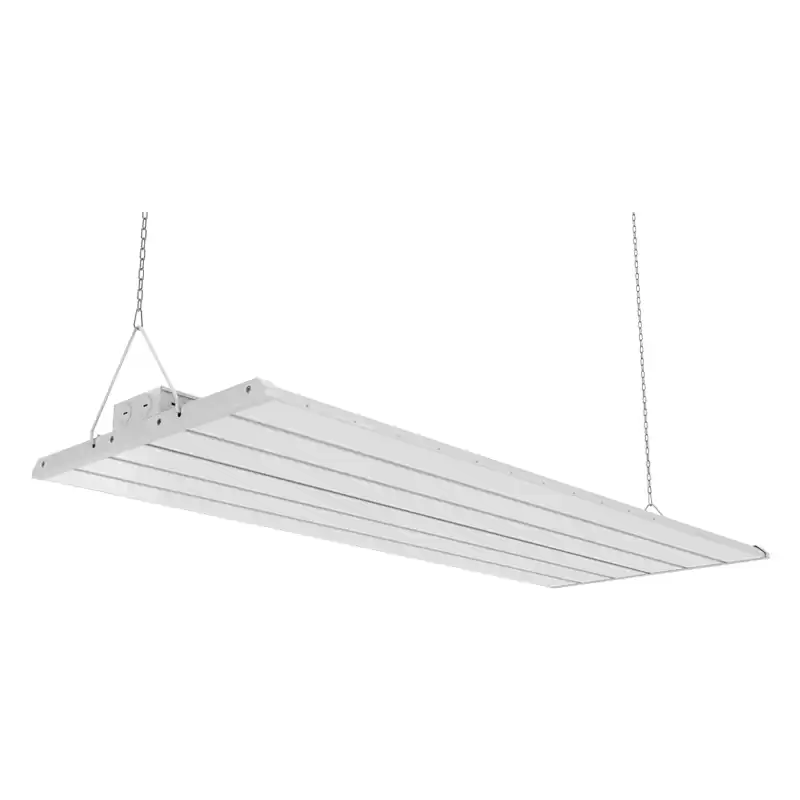

High Lumen 1-10V Dimmable LED Linear High Bay
The LED linear high bay light is an ideal choice for high-performance, long-life replacement of HID and linear fluorescent high bay lights. Various color temperatures and light uniformity will ensure comfortable and safe conditions. Therefore, it maximizes the productivity of warehouses, large shops and stadiums, and other industrial and commercial venues. The use of special structure and thermoelectric separation technology can increase the efficiency of the lamp to 140lm/W and help extend the service life. It provides the Bluetooth controller based on Tuya technology, which can be used in conjunction with MORSTAR wireless lighting control system to control fixtures.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.
FEATURES:
• Input voltage: 120V-277V, 100V-347V, 347-480V
• Power factor: > 0.95; THD: <20%
• 1-10V dimming standard; Flicker-free
• Samsung Led chip lifetime: L70 > 100,000 hours; CRI> 82
• Environmental working temperature: -20°C / -4°F to 50°C /122°F
• UL certification 1598: suitable for dry and humid places
• CCT: 4000K / 5000K. Providing crisp and invigorating lighting resembling daylight for warehouses, stadiums, and industries, etc.
• V-hook and chain mounting accessories included
|
SPECIFICATION
|
LHB1D-80W
|
LHB1D-110W
|
LHB2D-165W
|
LHB3D-220W
|
LHB5D-225W
|
LHB5D-300W
|
|
Power Consumption
|
80W
|
110W
|
165W
|
220W
|
225W
|
300W
|
|
Equivalent Wattage
|
175W HID
|
250W HID
|
400W HID
|
750W HID
|
750W HID
|
1000W HID
|
|
Lumens Delivered
|
11,200 lm
|
15,400 lm
|
22,100 lm
|
30,800 lm
|
31,500 lm
|
42,000 lm
|
|
Efficacy
|
140 lm/W
|
|
CRI
|
>82
|
|
Color Temperature
|
4000K / 5000K
|
|
Input Voltage
|
120-277V, 100-347V, 347-480V
|
CONSTRUCTION:
• 22 gauge durable steel housing
• High impact frosted white acrylic lens
• White polyester powder coat finish
RECOMMENDED USE:
• Warehouses
• Retails
• High Bay and Low Bay applications
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.
APPLICATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American. And we have LED lighting distribution warehouses in California, Texas and Michigan.
6. Can you design a new model?
- Yes, we can open new mould according to your drawings and produce.
7. Any suggestion? Please contact us.
