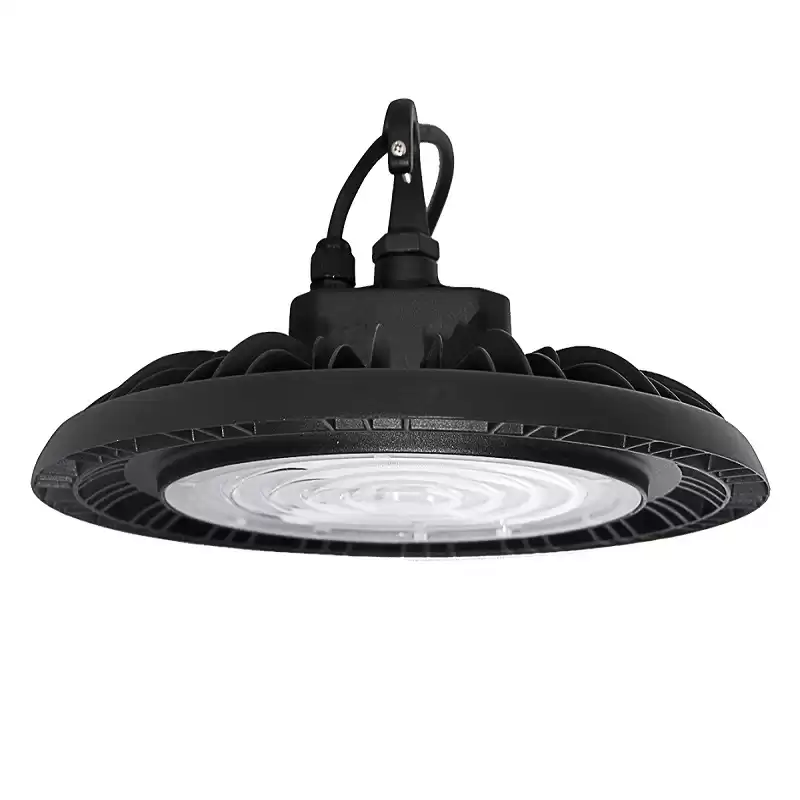

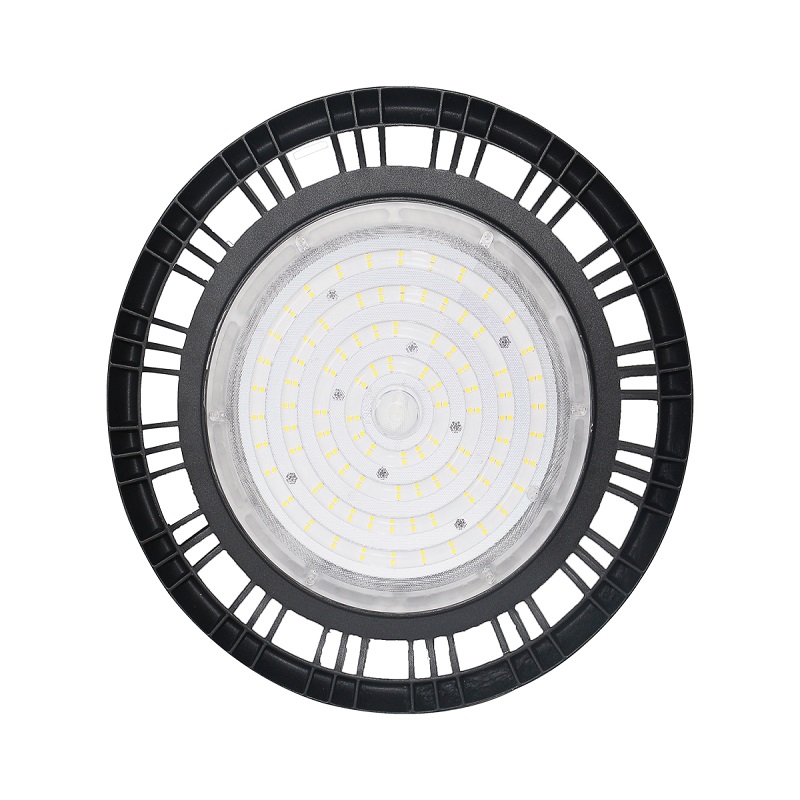

High Lumen Dimmable and Slim LED UFO High Bay Light
Combining long life and outstanding efficacy up to 130Lm/W, MORSTAR 400B series UFO high bay light offers a cost -effective solution to maximize energy and maintenance savings. These fixtures instantly deliver brilliant white light, eliminating long warm-up times experienced with HID fixtures that easy-to-install LED UFO high bay luminaires to have a sleek, robust design that meets a variety of application needs.
FEATURES:
• Perfect heat dissipation, die-casting aluminum UFO shape body.
• Phillips 3030 LED chip with efficacy of 130 lm/w.
• Private mould, light weight, good quality.
• High transmittance PC lens.
• Different reflect shade is optional.
• Beam angle: 60°/90°/120°.
• Motion sensor, 1-10V dimming for option.
|
SPECIFICATION
|
HHB401B-100W
|
HHB402B-150W
|
HHB403B-200W
|
HHB404B-240W
|
|
Power Consumption
|
100W
|
150W
|
200W
|
240W
|
|
Equivalent Wattage
|
250W HID
|
400W HID
|
700-800W MH
|
800-1000W MH
|
|
Lumens Delivered
|
13,000 lm
|
19,500 lm
|
26,000 lm
|
31,200 lm
|
|
Efficacy
|
130 lm/W, 150 lm/W
|
|
CRI
|
70
|
|
Color Temperature
|
3000K /4000K /5000K / 5700K
|
|
Input Voltage
|
100-277V
|
CONSTRUCTION:
• Die-casting aluminum UFO shape body
• High transmittance PC lens
• Private mould

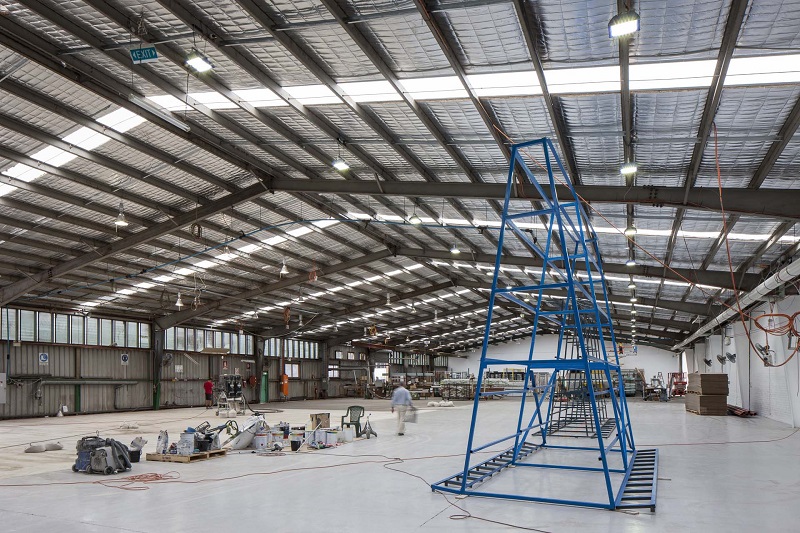

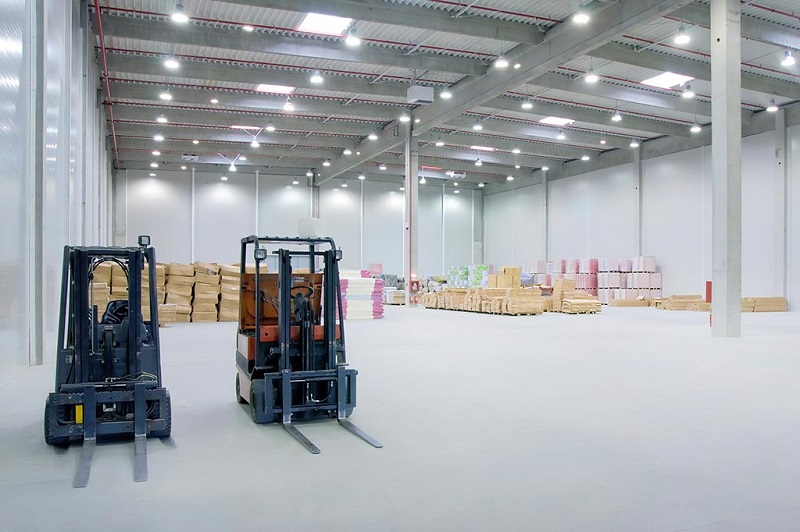

RECOMMENDED USE:
• Industrial & Warehouse Lighting
• Factories Lighting
• Sport Halls, Airports Lighting etc.
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 122°F.
APPLICATION：
