High Lumen IP65 Waterproof LED Parking Garage Canopy

The LED parking garage canopy with a sleek appearance, frosted lens and high lumen output, it's the best match to replace HID luminairesand suitable for garages, parking, perimeter lighting and entryways. Ourcanopies are the perfect alternativeto the typical square.



High Lumen IP65 Waterproof LED Parking Garage Canopy


The LED parking garage canopy light delivers up to 8,000 lumens for an energy-efficient replacement of 250W MH canopy lights.Traditional style does not detract from current building aesthetics. The economical 05B Series parking garage canopy light provides years of maintenance-free general illumination for commercial and industrial applications. Ideal for entrances, parking garage, covered walkways, and loading docks.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.


FEATURES:

• Input voltage: 120V-277V, 347V-480V
• Replacing 100W MH-250W MH
• Lumen ouput from 3750-8000lm with efficacy up to 135lm/W
• Environmental working temperature: -40°F to 104°F

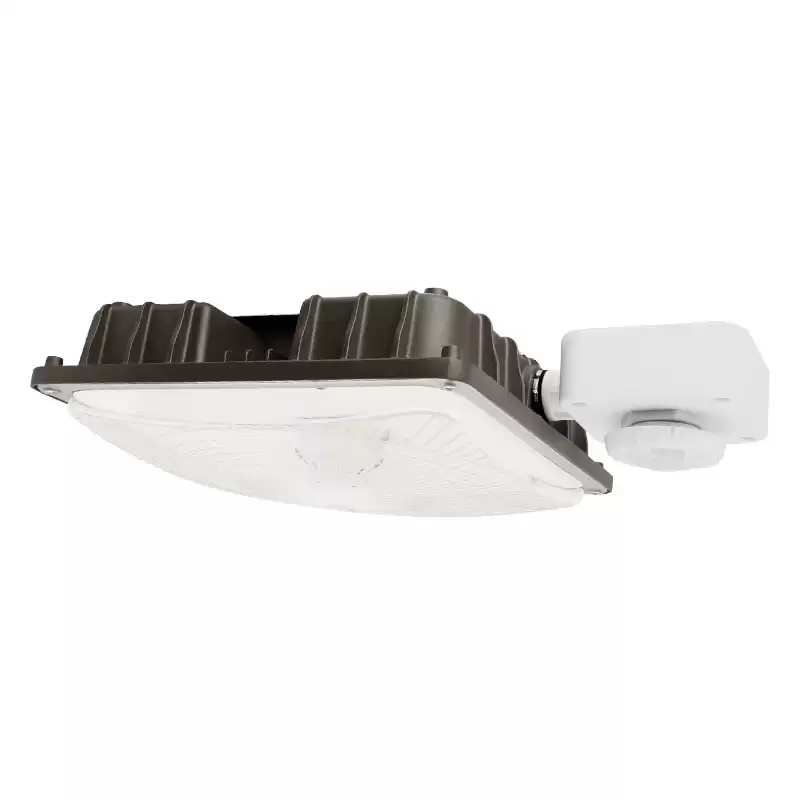

• Provide with a PIR sensor ideal for parking garage and optional for emergency battery
• Sealed die-casting design suitable for indoor and outdoor applications
• UL/CUL wet location listed


SPECIFICATION

EGC05B-27W

EGC05B-40W

EGC05B-60W

Power Consumption

27W

40W

60W

Equivalent Wattage

100W MH

175W MH

250W MH

Lumens Delivered

3,800 lm

5,450 lm

8,200 lm

Efficacy

135 lm/W

CRI

>80

Color Temperature

4000K /5000K

Input Voltage

120-277V , 347-480V


CONSTRUCTION:
• Durable, die-cast aluminum housing with heat dissipating fins
• Has Polycarbonate optical lens with high impact and heat-resisting
• White, dark bronze or black polyester powder-coat finish


RECOMMENDED USE:
• Retail and grocery
• Parking structures
• Walkways


WARRANTY:

7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 104°F.


APPLICATION:

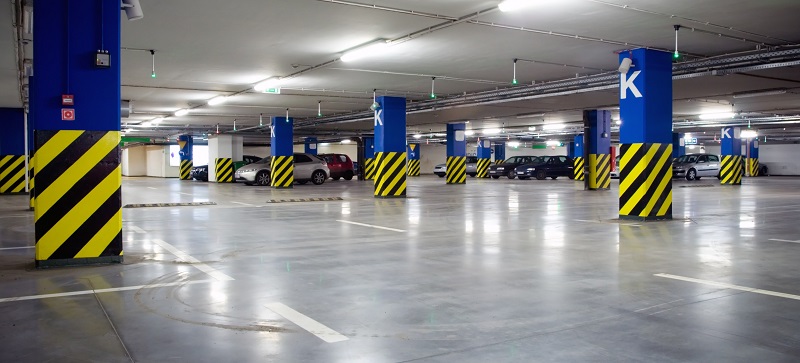

Parking LED Canopy Light


FAQ:
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in  California,Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
