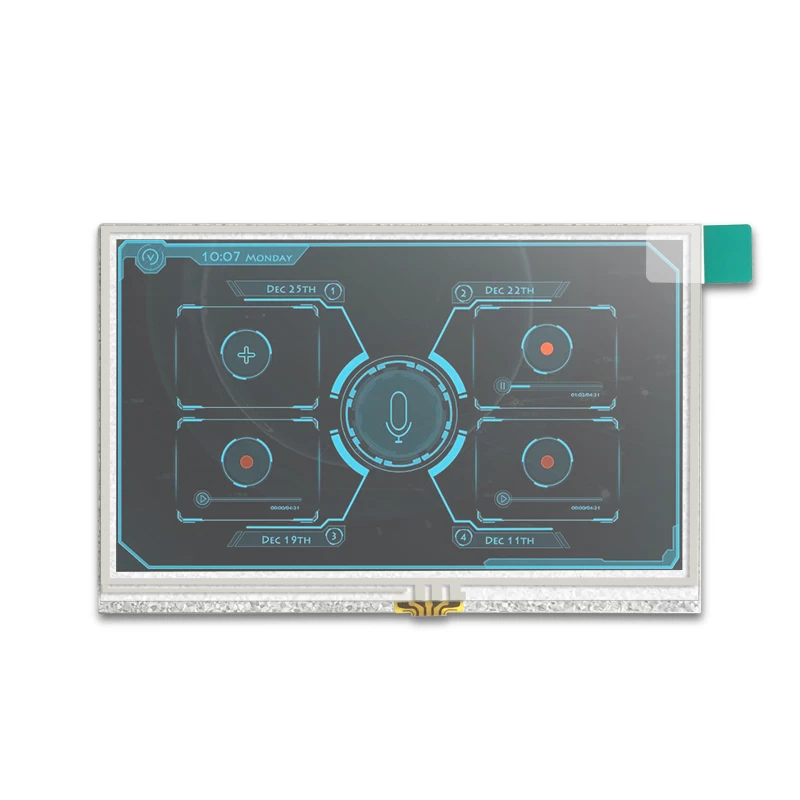

High luminance 480x272 resolution 4.3 inch ips lcd display with RTP
|
Specification
|
|
Part No.
|
TST043WQHS-67P
|
|
Outline Dimension(mm)
|
105.5 (H)*67.2(V)*3.05(T)(Exclude FPC)
|
|
Active Area(mm)
|
95.04 (L)* 53.86 (W)
|
|
Resolution(dots)
|
480*RGB*272
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
480RGB(H)xRGBx272(V)
|
|
Touch panel
|
with RTP
|
|
Driver
|
ST7282
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
IPS, WQVGA 4.3 inch IPS TFT
|
|
Brightness
|
900~1000 nits
|
|
View direction
|
ALL
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
