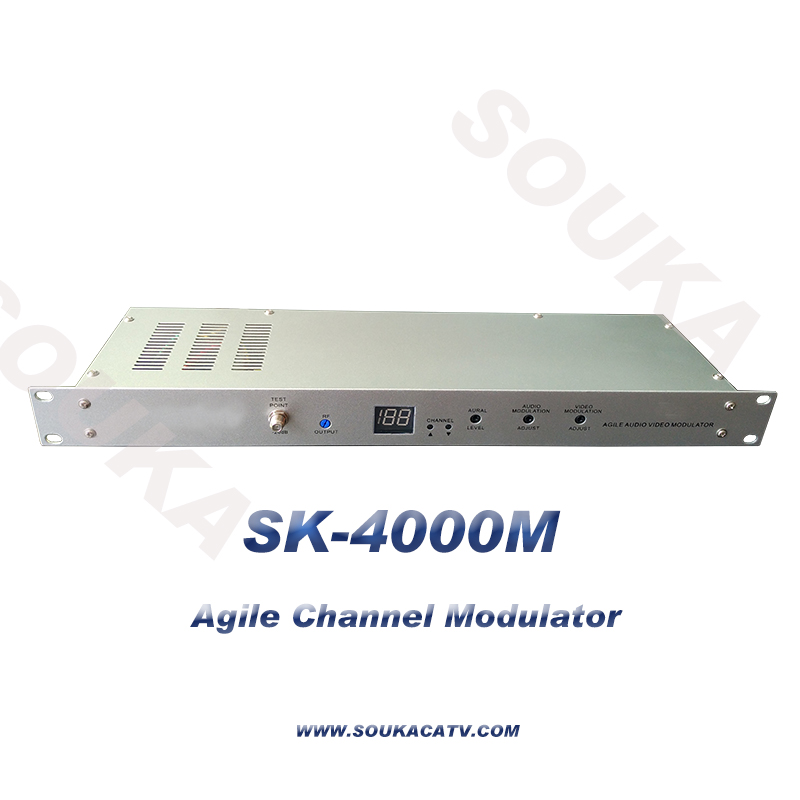

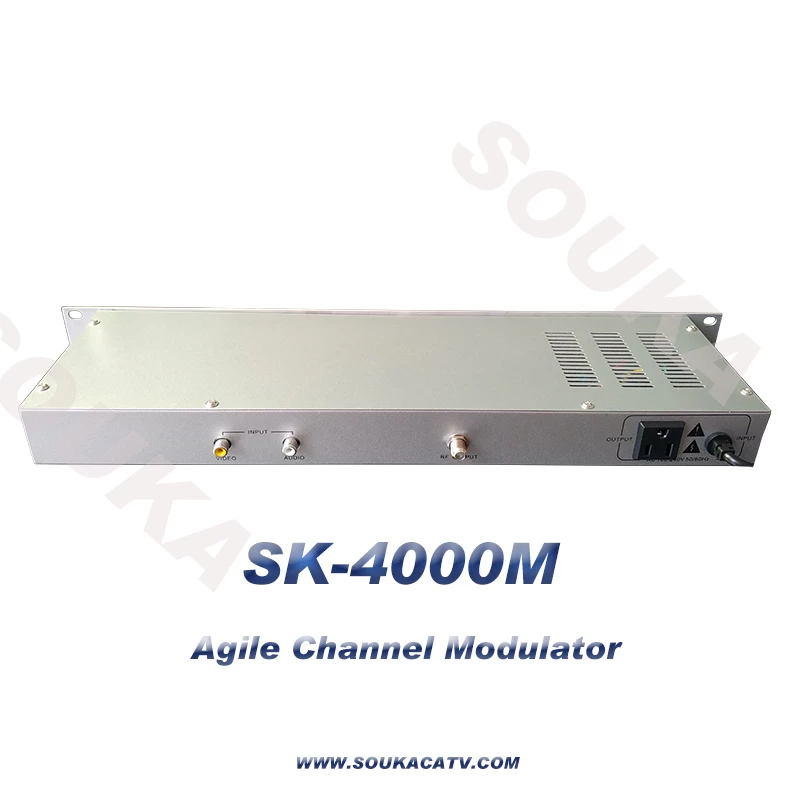

SK-4000M
The SK-4000M single agile modulator is commercial grade, SAW filtered, freuency agile modulator specifically designed to meet the hightes CATV performance standards. All channels are easily selected using front panel buttons and verified with an EASY-TO-READ LED channel display.
Features:
1. High output level 120dBμV
2. SAW filtering for maintenance free adjacent channel configuration
3. Low out-of-band noise
4. LED Display. Front panel control for easy installment
5. Excellent video and audio linearity for superior picture quality
6. Standard 19” housing for standard rack
|
RF
|
|
Output
Frequency:
|
45-860MHz
|
|
Output
Level :
|
120dBuV
|
|
Output
Impedance:
|
75
Ω
|
|
Frequency
Accuracy:
|
±5KHz
|
|
Sideband
Suppression:
|
≥
60dB
|
|
A/V
Ratio :
|
-10dB
|
|
Video
|
|
Input
Level:
|
0.6-1.5Vp-p
|
|
K
Value:
|
4%
MAX( 2T Pulse )
|
|
Differential
Gain:
|
±4%
|
|
SNR:
|
50dB
( Non-Weight)
|
|
Flatness:
|
±1dB
|
|
Differential
Phase:
|
±4°
|
|
Audio
|
|
Input Level:
|
-10 to 10dBm
|
|
Flatness:
|
±1dB MAX
|
|
SNR:
|
-60dB
|
|
Harmonic Distortion:
|
＜0.5
|
