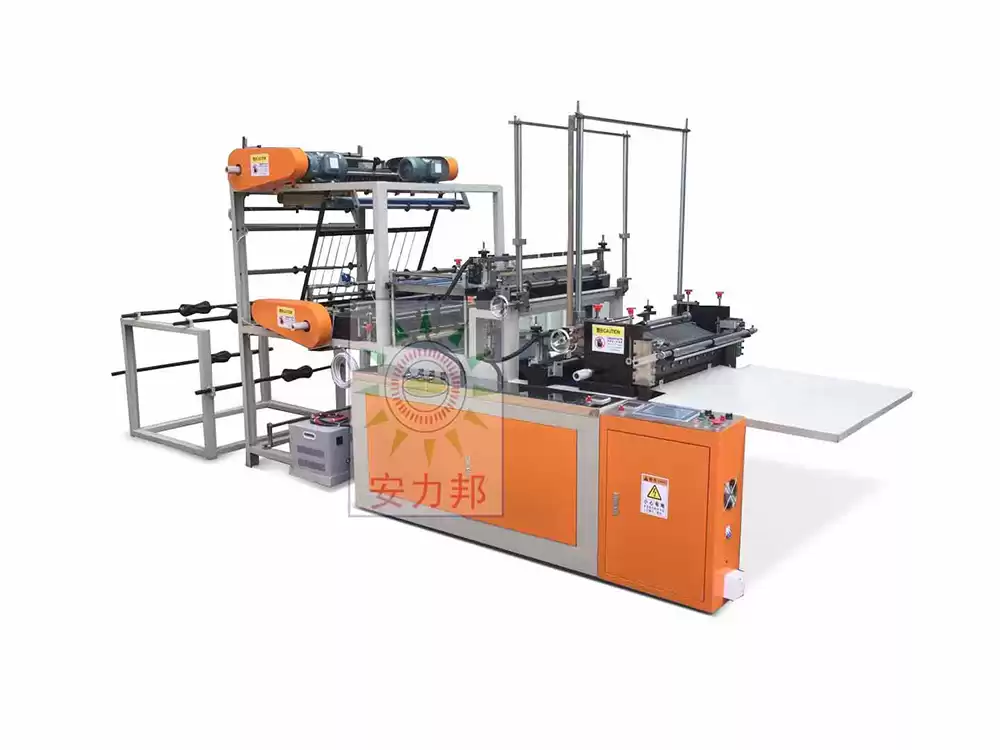

High Output Two Lanes Four Feeding Rolls Stackable Vest Bag Making Machine

1. Easy clean turn knife system
2. 2lines EPC control system
3. Easy adjust gusset device
4. Automatic tension control unwind

Facebook Twitter Pinterest LinkedIn 分享

Machine Characteristics

  1. The machine adopts full computer control system. Servo motor as fixed - length control.
  2. Arbitrary length. Color magic eye is tracking automatically, it is accurate and stable. Machine will automatically stop when missing printing mark.
  3. The machine is widely used in various industrial flat packaging pockets.

Technical Parameters



Item Unit 30 inch 32 inch 35 inch 40 inch
Max sealing & cutting width MM 260*4 300*4 330*4 900*4
Max sealing & cutting thickness MM 0.01-0.2 0.01-0.2 0.01-0.2 0.01-0.2
Length error MM 0.3 0.3 0.3 0.3
Output  PCS/MIN 20-150 20-150 20-150 20-130
Start AC Motor KW 1.5 1.5 1.5 2.2
DELTA servo motor  KW 1.0*2 1.0*2 1.5*2 1.5*2
Film feeding Frequency motor  W 500*2 500*2 500*2 500*2
Top & bottom heat sealing knife MM 760*2 810*2 890*2 1000*2
Electric heat KW 1.8*2 1.8*2 2.0*2 3.0*2
Machine standby power KW 5.0 6.0 6.0 8.0

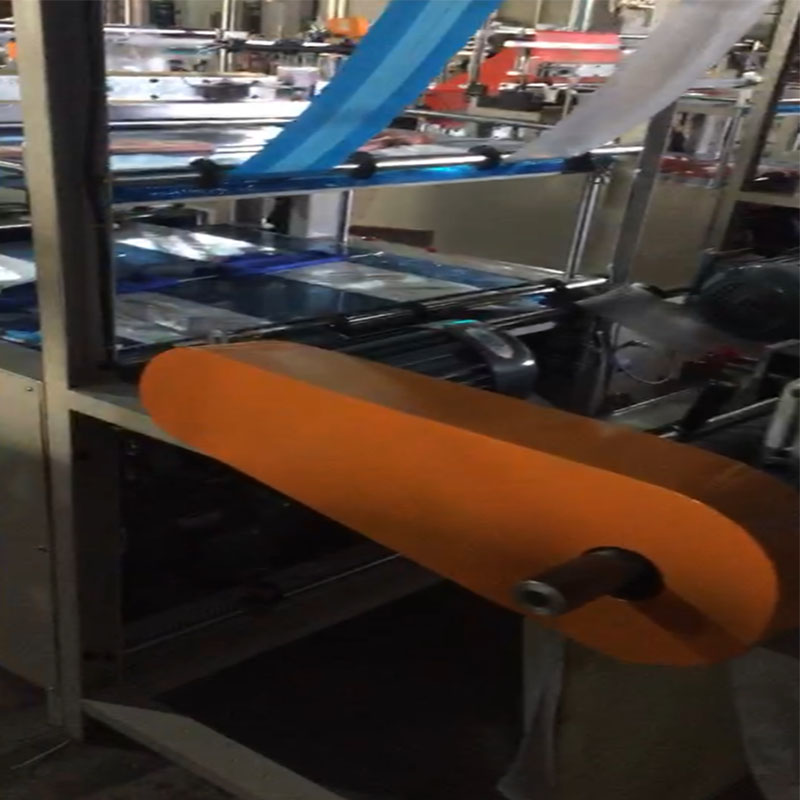

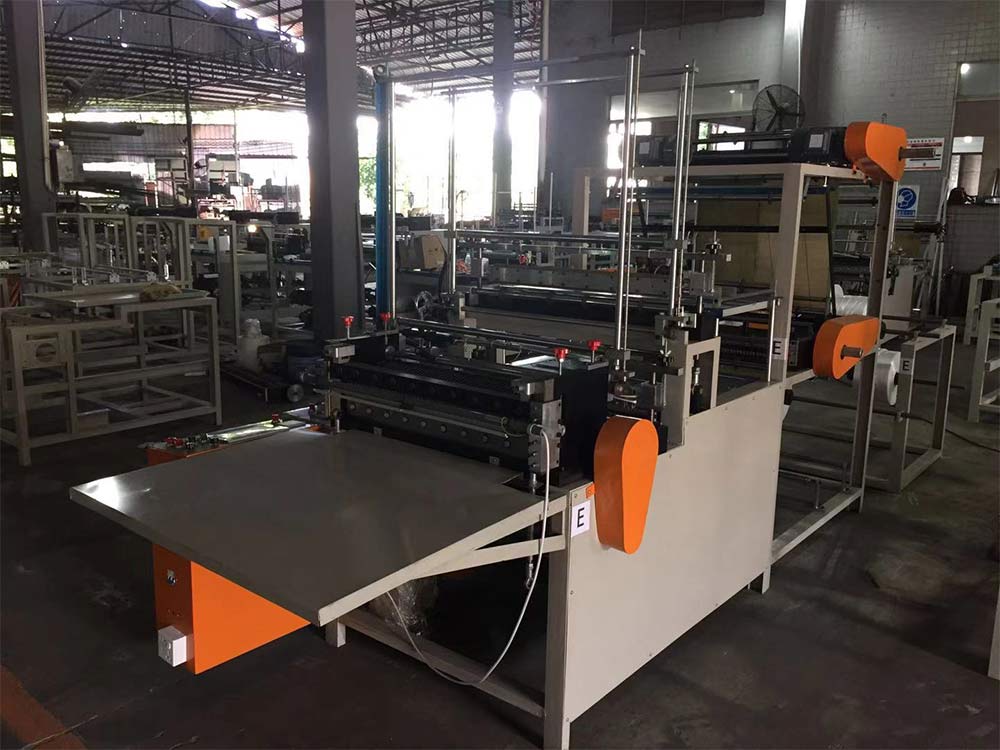

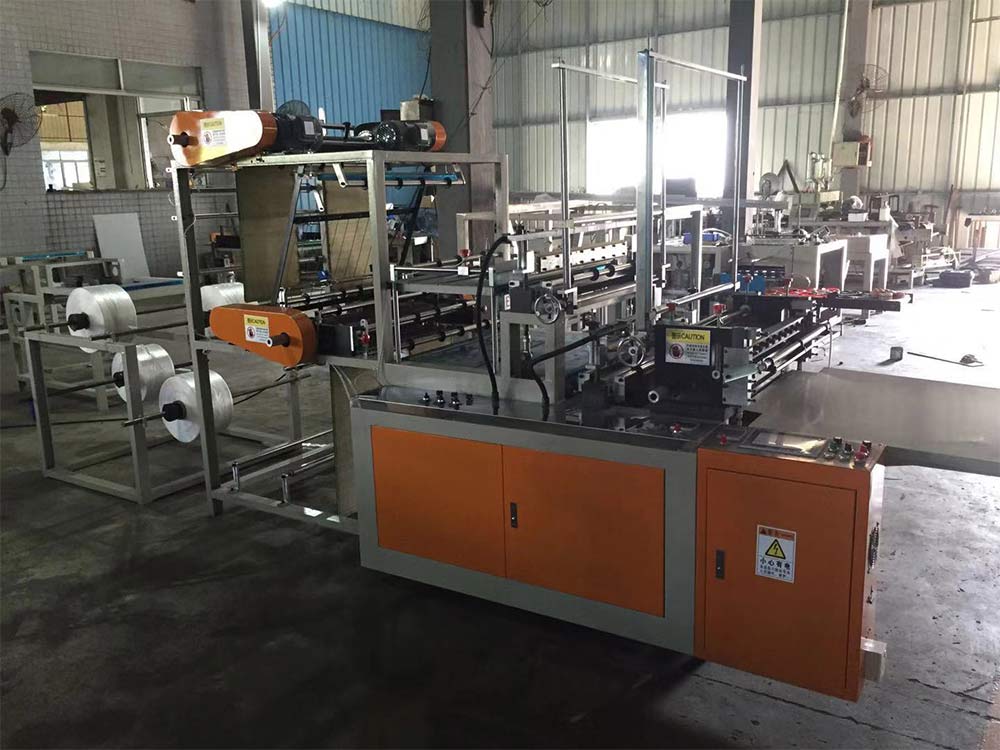

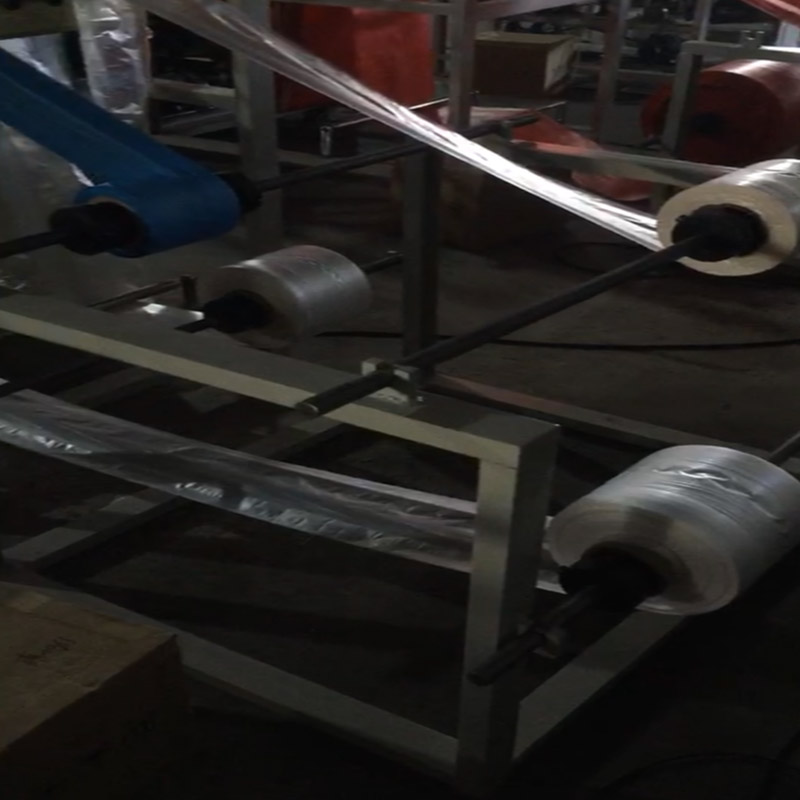

 Details Show
