GEM I GS Series batteries have been developed from decades experience of manufacturing to meet various general-purpose and commercial applications. The batteries are AGM technology based products and complied with IEC61056-1/2 and IEC60896-21/22. GEM I GS Series batteries are in compact size with sealed maintenance-free design, quite flexible for multi-positioning installation and portable handling. The batteries could be applied for many civil applications, lamp and lantern, electric toys, power tools, civil or commercial UPS systems, emergency lights, security system, high-power mobile speaker and sound equipment, etc.... Moreover, the compact but high-energy-containing design could ideally support to commercial UPS systems, especially the 12V batteries with High-Rate (HR**) marked models are in great favor for industrial and critical UPS application. GEM I GS Series batteries are everywhere.
|
|
Voltage
(V)
|
Capacity
(AH/20HR)
|
Dimension (in)
|
Weight
±5%
(lbs)
|
Dimension (mm)
|
Weight
±5%
(kgs)
|
Terminal
|
|
±0.04
|
±0.04
|
±0.08
|
±0.08
|
±1
|
±1
|
±2
|
±2
|
L (in)
|
W (in)
|
H (in)
|
TH (in)
|
L (mm)
|
W (mm)
|
H (mm)
|
TH (mm)
|
|
GS 12-4
|
12
|
4
|
3.55
|
2.76
|
3.98
|
4.14
|
3.15
|
90
|
70
|
101
|
105
|
1.43
|
F1/F2
|
|
GS 12-4.5
|
12
|
4.5
|
3.55
|
2.76
|
3.98
|
4.14
|
3.26
|
90
|
70
|
101
|
105
|
1.48
|
F1/F2
|
|
GS 12-5
|
12
|
5
|
3.55
|
2.76
|
3.98
|
4.14
|
3.53
|
90
|
70
|
101
|
105
|
1.60
|
F1/F2
|
|
GS 12-5 HR**
|
12
|
5
|
3.55
|
2.76
|
3.98
|
4.14
|
4.03
|
90
|
70
|
101
|
105
|
1.83
|
F2
|
|
GS 12-6S HR**
|
12
|
6
|
5.95
|
2.01
|
3.70
|
3.86
|
4.19
|
151
|
51
|
94
|
98
|
1.90
|
F2
|
|
GS 12-7
|
12
|
7
|
5.95
|
2.56
|
3.70
|
3.86
|
4.74
|
151
|
65
|
94
|
98
|
2.15
|
F1/F2
|
|
GS 12-7.2
|
12
|
7.2
|
5.95
|
2.56
|
3.70
|
3.86
|
4.85
|
151
|
65
|
94
|
98
|
2.20
|
F1/F2
|
|

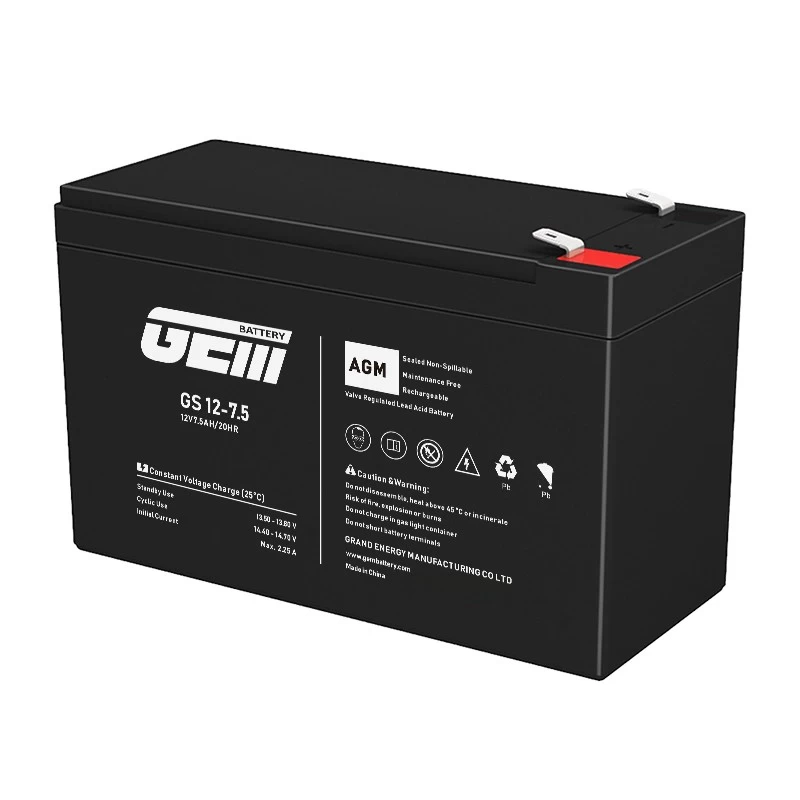

GS 12-7.5
|
12
|
7.5
|
5.95
|
2.56
|
3.70
|
3.86
|
5.03
|
151
|
65
|
94
|
98
|
2.28
|
F1/F2
|
|
GS 12-8
|
12
|
8
|
5.95
|
2.56
|
3.70
|
3.86
|
5.25
|
151
|
65
|
94
|
98
|
2.38
|
F1/F2
|
|
GS 12-9
|
12
|
8.5
|
5.95
|
2.56
|
3.70
|
3.86
|
5.62
|
151
|
65
|
94
|
98
|
2.55
|
F1/F2
|
|
GS 12-9 HR**
|
12
|
8.6
|
5.95
|
2.56
|
3.70
|
3.86
|
5.91
|
151
|
65
|
94
|
98
|
2.68
|
F2
|
|
GS 12-10
|
12
|
10
|
5.95
|
2.56
|
4.33
|
4.53
|
6.83
|
151
|
65
|
110
|
115
|
3.10
|
F1/F2
|
|

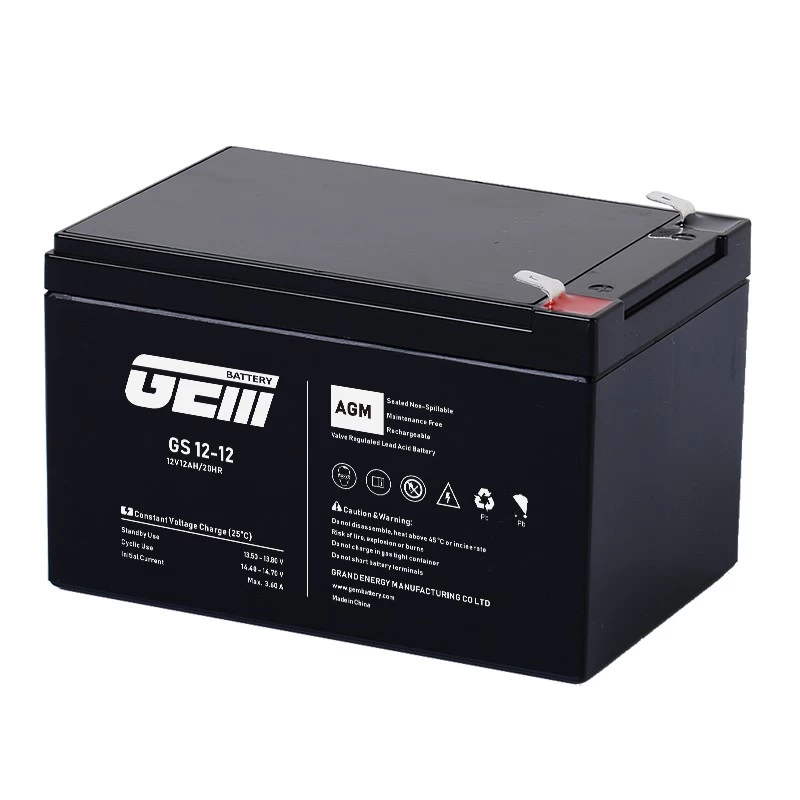

GS 12-12
|
12
|
12
|
5.95
|
3.86
|
3.70
|
3.86
|
7.28
|
151
|
98
|
94
|
98
|
3.30
|
F1/F2
|
|
GS 12-12A
|
12
|
12
|
5.95
|
3.86
|
3.70
|
3.86
|
7.94
|
151
|
98
|
94
|
98
|
3.60
|
F1/F2
|
|
GS 12-17
|
12
|
17
|
7.13
|
3.03
|
6.58
|
6.58
|
10.80
|
181
|
77
|
167
|
167
|
4.90
|
T1/M5*10
|
|
GS 12-18
|
12
|
18
|
7.13
|
3.03
|
6.58
|
6.58
|
11.02
|
181
|
77
|
167
|
167
|
5.00
|
T1/M5*10
|
|
GS 12-18B
|
12
|
18
|
7.13
|
3.03
|
6.58
|
6.58
|
11.68
|
181
|
77
|
167
|
167
|
5.30
|
T1/M5*10
|
|

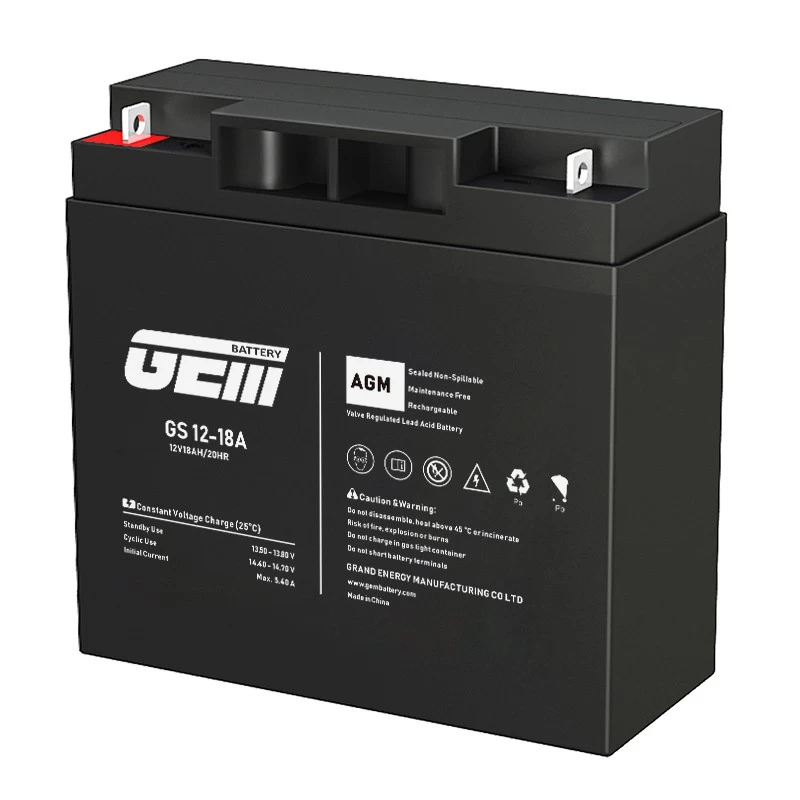

GS 12-18A
|
12
|
18
|
7.13
|
3.03
|
6.58
|
6.58
|
12.35
|
181
|
77
|
167
|
167
|
5.60
|
T1/M5*10
|
|
GS 12-18 APC
|
12
|
18
|
7.13
|
2.96
|
6.58
|
6.58
|
12.35
|
181
|
75
|
167
|
167
|
5.60
|
T1/M5*10
|
|
GS 12-20 HR**
|
12
|
20
|
7.13
|
3.03
|
6.58
|
6.58
|
12.57
|
181
|
77
|
167
|
167
|
5.70
|
T1/M5*10
|
|
GS 12-20A
|
12
|
20
|
7.13
|
3.03
|
6.58
|
6.58
|
13.45
|
181
|
77
|
167
|
167
|
6.10
|
T1/M5*10
|
|
GS 12-26L
|
12
|
26
|
6.50
|
4.93
|
6.86
|
6.86
|
17.64
|
165
|
125
|
174
|
174
|
8.00
|
T3/M6*12
|
|
GS 12-28L
|
12
|
28
|
6.50
|
4.93
|
6.86
|
6.86
|
18.30
|
165
|
125
|
174
|
174
|
8.30
|
T3/M6*12
|
|
GS 12-24
|
12
|
24
|
6.90
|
6.54
|
4.93
|
4.93
|
15.98
|
175
|
166
|
125
|
125
|
7.25
|
T3/M6*12
|
|
GS 12-26
|
12
|
26
|
6.90
|
6.54
|
4.93
|
4.93
|
16.53
|
175
|
166
|
125
|
125
|
7.50
|
T3/M6*12
|
|

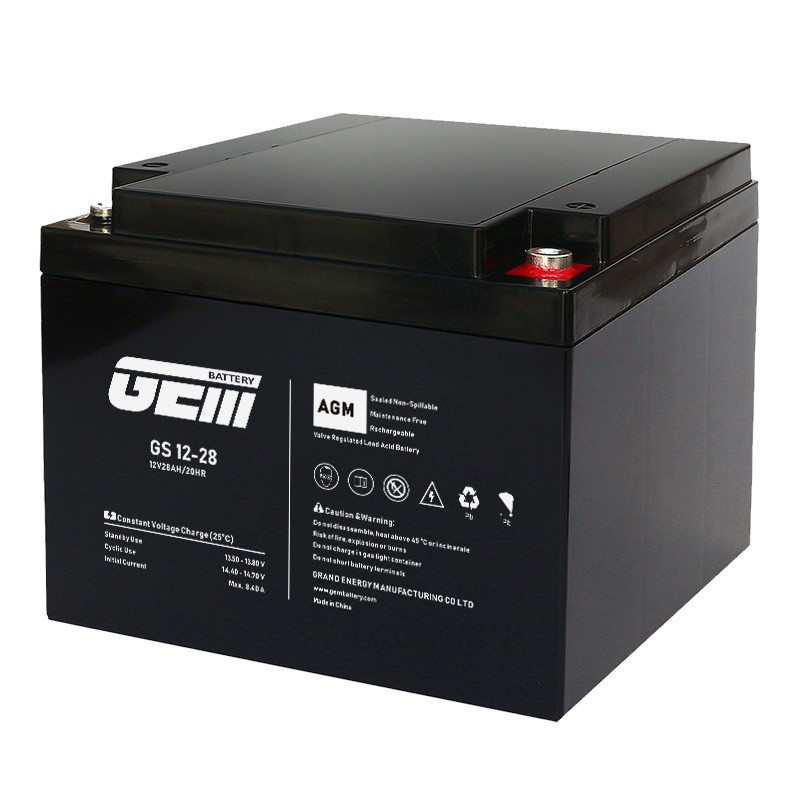

GS 12-28
|
12
|
28
|
6.90
|
6.54
|
4.93
|
4.93
|
17.42
|
175
|
166
|
125
|
125
|
7.90
|
T3/M6*12
|
|
GS 12-30
|
12
|
30
|
6.90
|
6.54
|
4.93
|
4.93
|
18.08
|
175
|
166
|
125
|
125
|
8.20
|
T3/M6*12
|
|
GS 12-30 HR**
|
12
|
30
|
6.90
|
6.54
|
4.93
|
4.93
|
18.96
|
175
|
166
|
125
|
125
|
8.60
|
T3/M6*12
|
To download the data sheet of specific model, please Contact us
