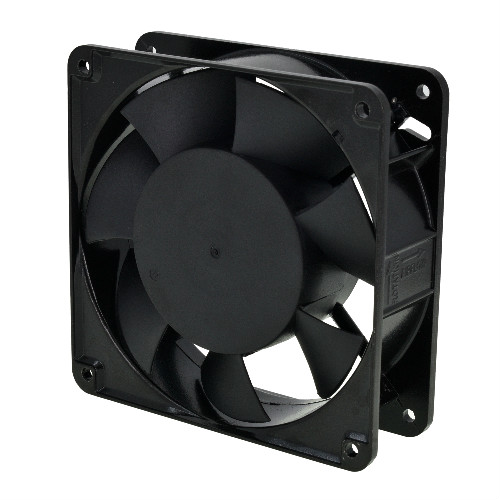

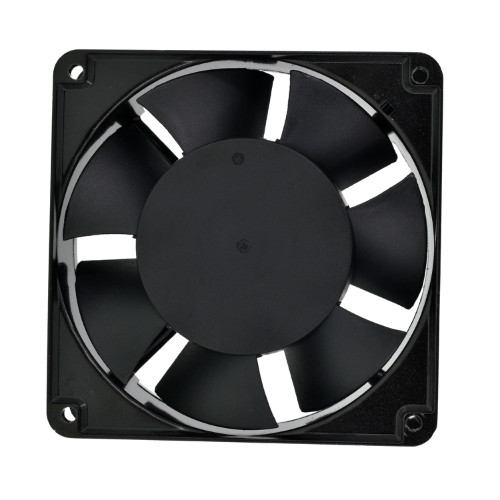

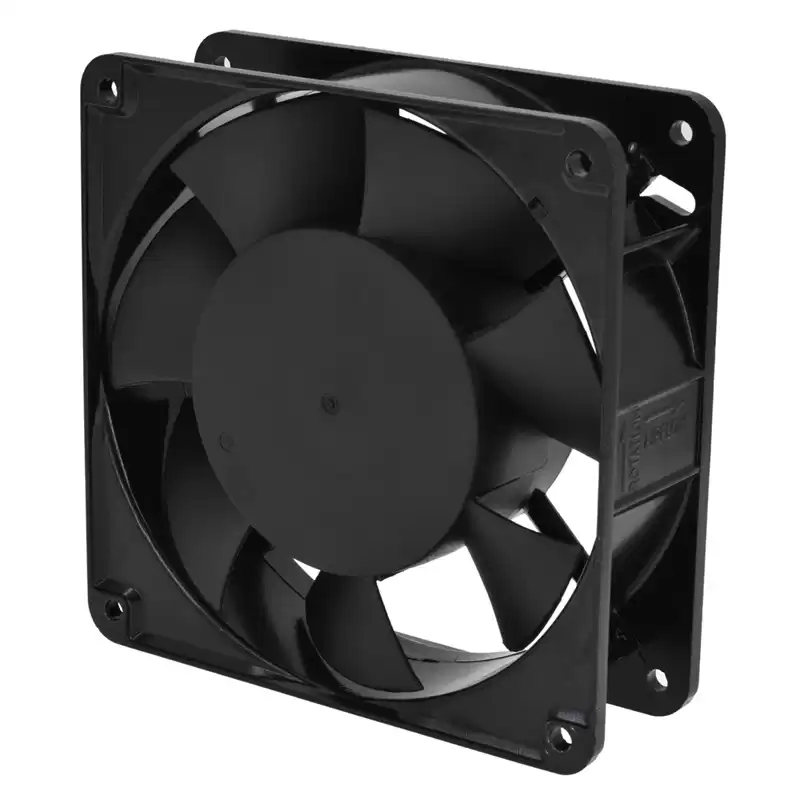

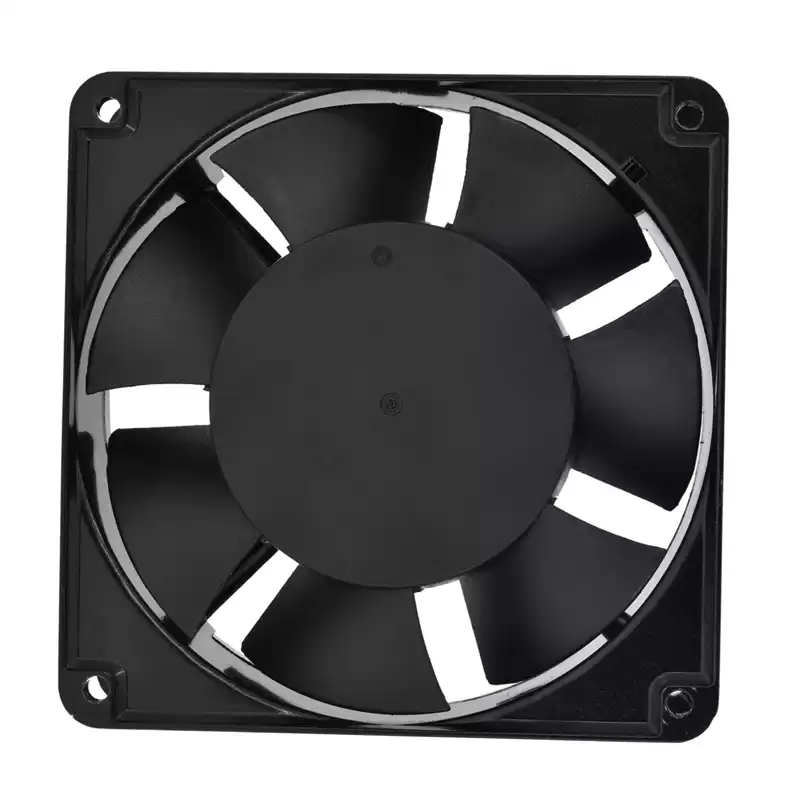

120 x 120 x 38mm Axial Cooling Fan for Cabinet Ventilation. It's an excellent choice to maintain just the right amount of cooling for these components.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

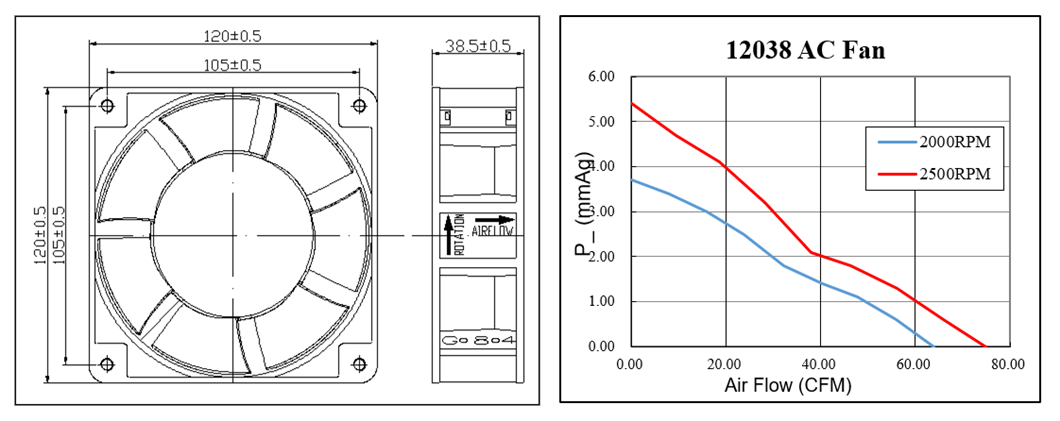

Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 38 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 1.49 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.5 mm / 4.13 in.
-

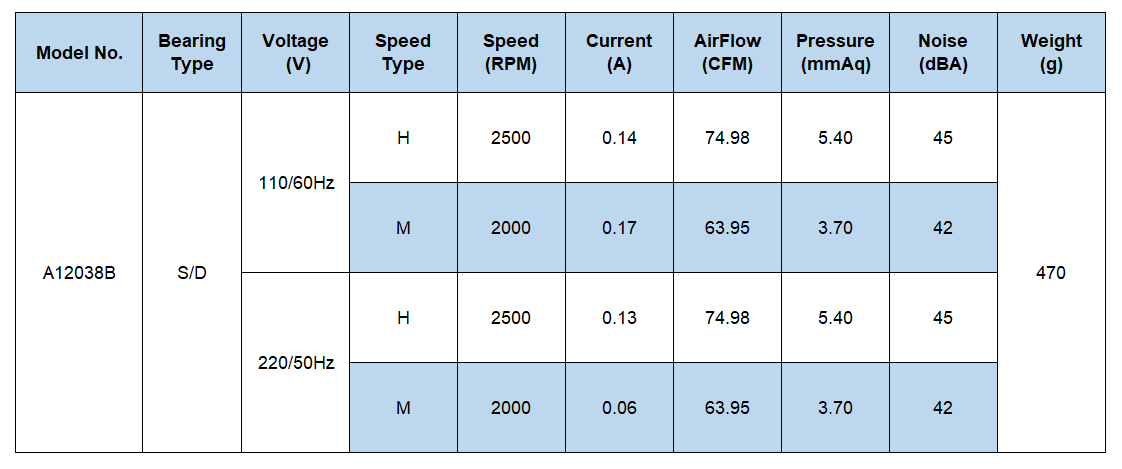

Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.17 Amp | Speed: 2000 ~ 2500 RPM | Airflow: 63.95 ~ 74.98 CFM |Noise: 42 ~ 45 dBA | Pressure: 3.70 ~ 5.40 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
AC AXIAL FAN 120x120x38mm(4.72"x4.72"x1.49")
General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Designed for projects that requires cooling or ventilation;
-
Standard AC axial cooling fans with a square housing;
-
Large air valume adopting high precision double ball bearing;
-
7 fan blades provides minimal air resistance to boost overall airflow;
-
The product supports full-size parameter setting, can provide high standard quality of fans to our customers.
More Models
These fans are available in several sizes to accommodate diverse applications — such as those found in tight spaces or difficult to reach areas.
|
Type
|
Model
|
Size
|
Type
|
Model
|
Size
|
|
AC Axial Fan
|
A08025
|
80x80x25mm(3.15"x3.15"x0.98")
|
AC Axial Fan
|
A13538
|
135x135x38mm(5.31"x5.31"x1.49")
|
|
A09225
|
92x92x25mm(3.62"x3.62"x0.98")
|
A15050
|
150x150x50mm(5.90"x5.90"x1.97")
|
|
A11025
|
110x110x25mm(4.33"x4.33"x0.98")
|
A17051A
|
170x150x51mm(6.69"x5.90"x2.0")
|
|
A12025A
|
120x120x25mm(4.72"x4.72"x0.98")
|
A17051B
|
|
A12025B
|
A18060
|
180x180x60mm(7.08"x7.08"x2.36")
|
|
A12038A
|
120x120x38mm(4.72"x4.72"x1.49")
|
A20060
|
200x200x60mm(7.87"x7.87"x2.36")
|
|
A12038B
|
A22060
|
220x220x60mm(8.65"x8.65"x2.36")
|
Application
DC/AC axial fans wide range of applications: Stage lighting, VR equipment, Intelligent Manicure machine, Projector, High-speed camera, Automotive industry, Cabinet industry, Power industry, UAV application, LED lighting industry, Hand held air detector, Charging machine.
-
Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
-
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
Long Life Cycle / Low Noise / High Efficiency;
Strict Waterproof & Dustproof Test;
CHUNGFO, the best choice for your cooling needs!
