High performance anamorphic prism

The Anamorphic prisms are used in pairs to magnify input beam size along one axis while leaving the other axis unchanged. The elliptical laser diode beams can be transferred into nearly circular.



1. What it anamorphic prism?



Anamorphic prisms are used to correct the asymmetric, elliptical beams produced by laser diodes, so that the beams are nearly circular in shape.


2.What is the advantages of anamorphic prism?



The ability of adjusting the position of the prisms allows the user to compensate for variations from one light source to another.

The prisms are more cost effective than cylindrical lenses of comparable quality.

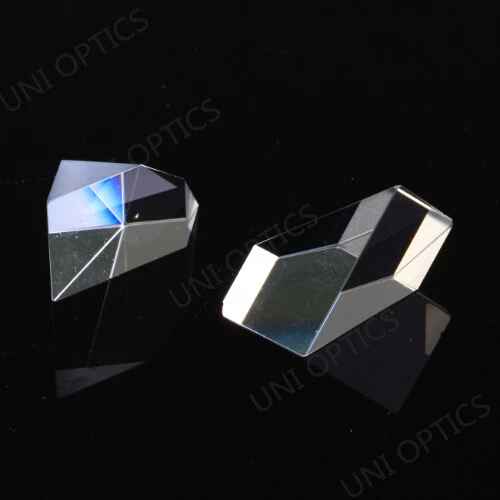

Anamorphic Prisms  Anamorphic Prisms


Specifications:

Material:  N-SF11 Grade A optical glass
Dimension Tolerance: +0.0, -0.2 mm
Clear Aperture: >80%
Flatness: l/8 @633 nm
Theta: q = 29°27±3"
Surface Quality: 60-40 scrach and dig
Coating: MgF2 single layer on perpendicular surface
