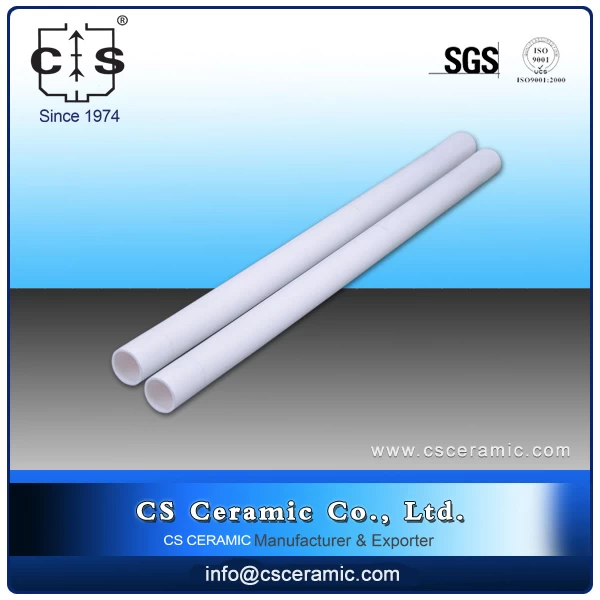

Product Item: High Performance Ceramic Combustion Tube
Product size:
|
Item NO.
|
Outside diam.(mm)
|
Inside diam.(mm)
|
Length arrange(mm)
|
|
CS-105
|
20
|
16
|
600
|
CS Ceramic CO.,Ltd offers a wide variety of tubes manufactured from high-performance technical ceramic materials, including alumina, zirconia, and silicon carbide. Enhance performance and product life by using the material best suited to your application.
Physical Parameters:
Acid resistance: more than 99.5%
Alkali resisitance: more than 97%
Temperature resistance: 1380 degrees celsius for unglazed
Wear resistance: less than 0.03g/cm2
Moh's hardness: 7 grade
Water absorption rate: less than 0.5%
Bulk density: 2.2-2.7g/cm3
Compressive strength: more than 300Mpa
Breaking strength: more than 40 Mpa
Thermal stability: 1400 degree celsius to room temperature
More dimension of Porcelain Ware Ceramic Combustion Tube unglazed:
|
Item NO.
|
Outside diam.(mm)
|
Inside diam.(mm)
|
Length arrange(mm)
|
MOQ(PCS)
|
|
CS-103
|
10
|
7
|
600
|
500
|
|
CS-104
|
15
|
10
|
600
|
500
|
|
CS-105
|
20
|
16
|
600
|
500
|
|
CS-106
|
21
|
17
|
600
|
500
|
|
CS-107
|
25
|
20
|
600
|
500
|
|
CS-108
|
27
|
22
|
600
|
500
|
|
CS-109
|
31
|
26
|
600
|
500
|
|
CS-110
|
36
|
30
|
600
|
500
|
|
CS-111
|
40
|
34
|
600
|
500
|
|
CS-112
|
50
|
42
|
600
|
500
|
|
CS-113
|
60
|
52
|
600
|
500
|
|
CS-114
|
70
|
60
|
600
|
500
|
Special offer: Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
