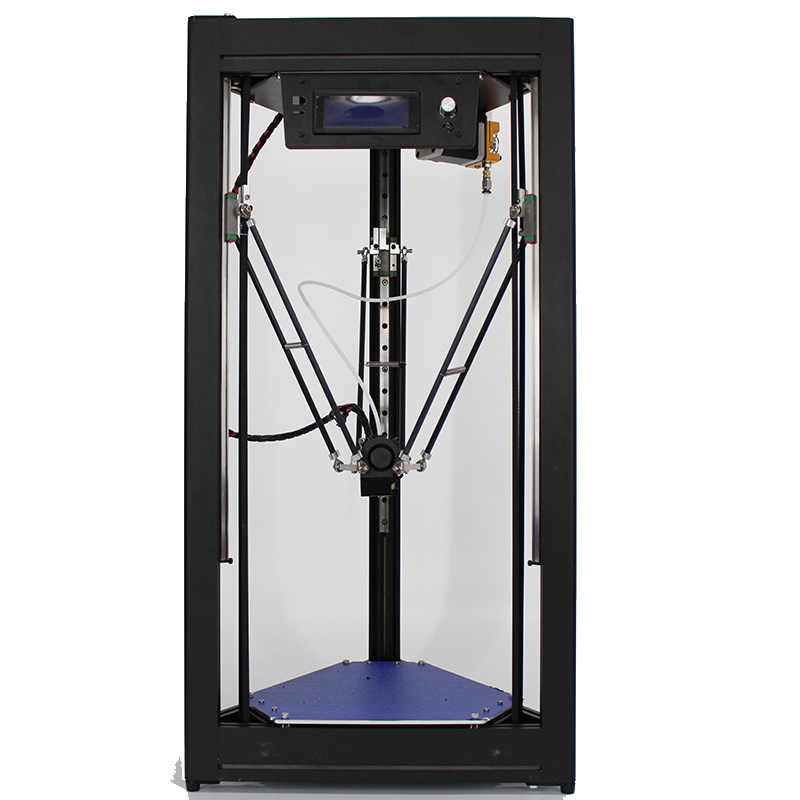

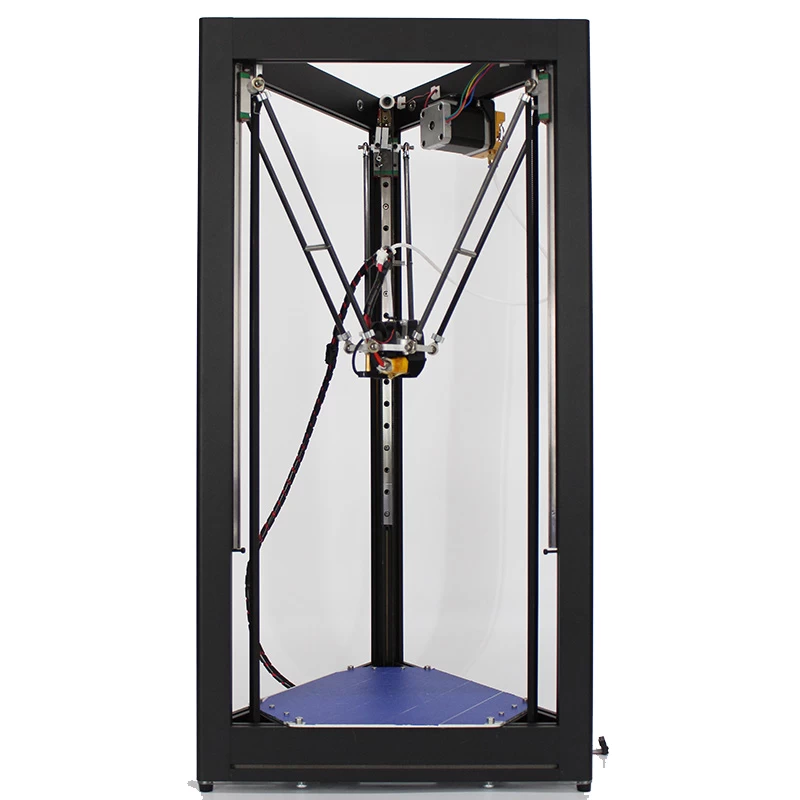

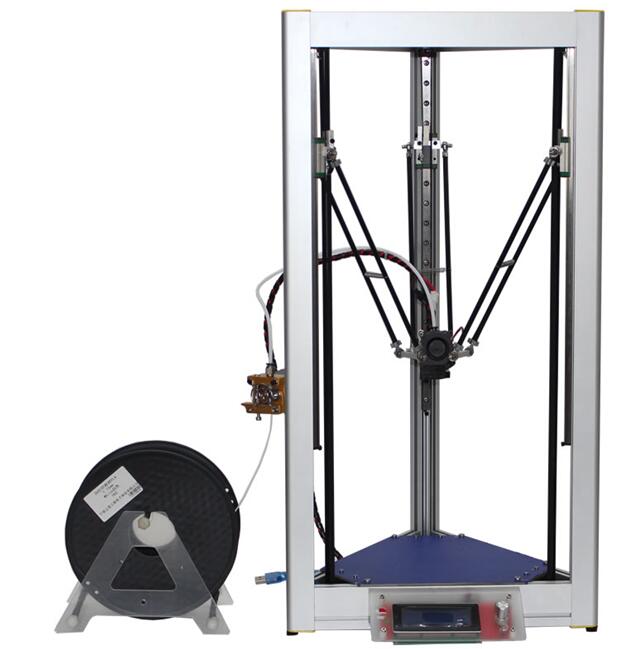

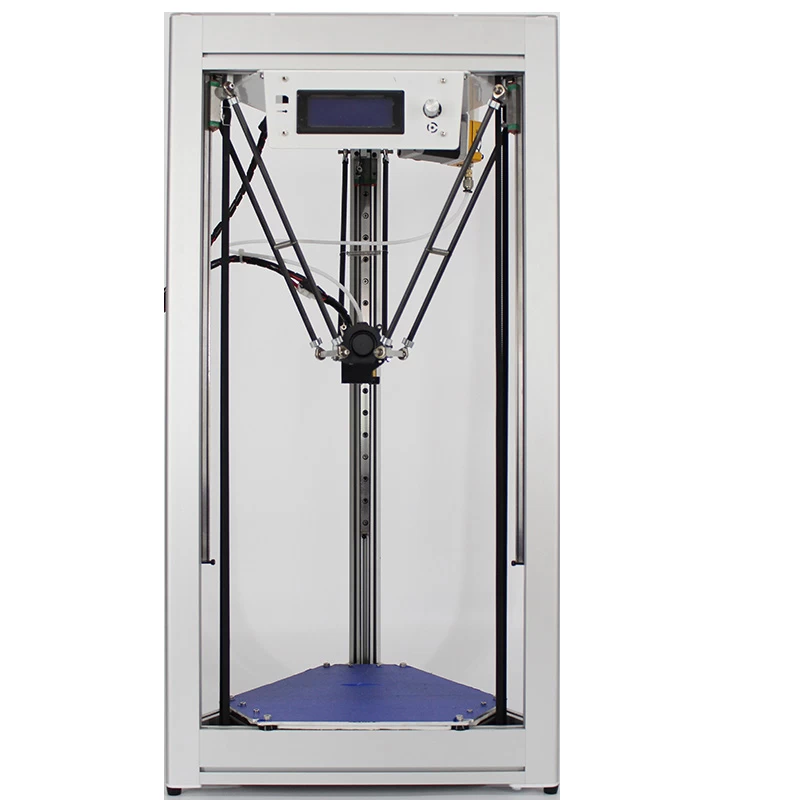

Delta3D Printer
It is made of stainless steel plate body, which is more stable and reliable. The print size is large, up to a diameter of 200 and a height of 300 mm. The model is equipped with an automatic leveling sensor, and the leveling is very simple. Print faster, saving you valuable time.
All the parts of the machine are made of high-quality components to ensure the reliability and stability of the equipment for a long time. It is your best choice.
Print specifications Physical specifications
Molding Technology: Fused Deposition (FFF) Outer Packing: 40*40*75CM
Molding volume: bottom diameter 200MM height 300MM Product size: 35*35*70 M
Printing accuracy: 0.05-0.4MM Product Net weight: 10KG
Positioning accuracy: X, Y, Z 0.05MM Gross weight: 12KG
Consumable specifications: 1.75MM PLA Temperature
Nozzle diameter: 0.4MM Operating temperature: 15°C-35°C
Production Size: 200mm(diameter)X300mm(height) Storage temperature: 0°C-35°C
Software package
Control software: CURA 14.12 Voltage: AC100-240V 50-60HZ
File format: STL, AMF, OBJ Current: DC24V 5A
Operating system: WINDOWS 7 MAC OSX
Printing speed:
When printing: 20-250MM/s
When moving: 300MM/S
Mechanical structure:
Structure: aluminum alloy parts
Housing: Acrylic sheet
Hot bed: 3MM 6 series aluminum alloy hot bed
Stepper motor: 1.8 degree step angle 1/16 subdivision
Guide rail: industrial grade linear guide
