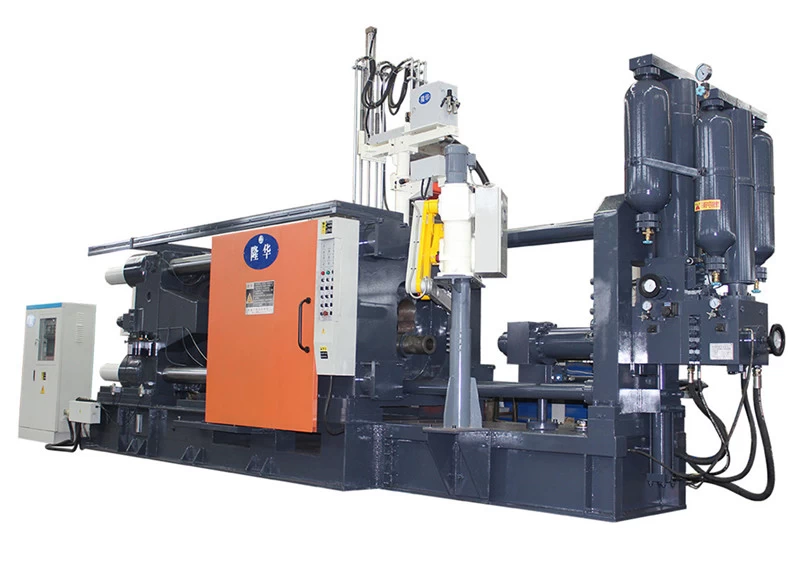

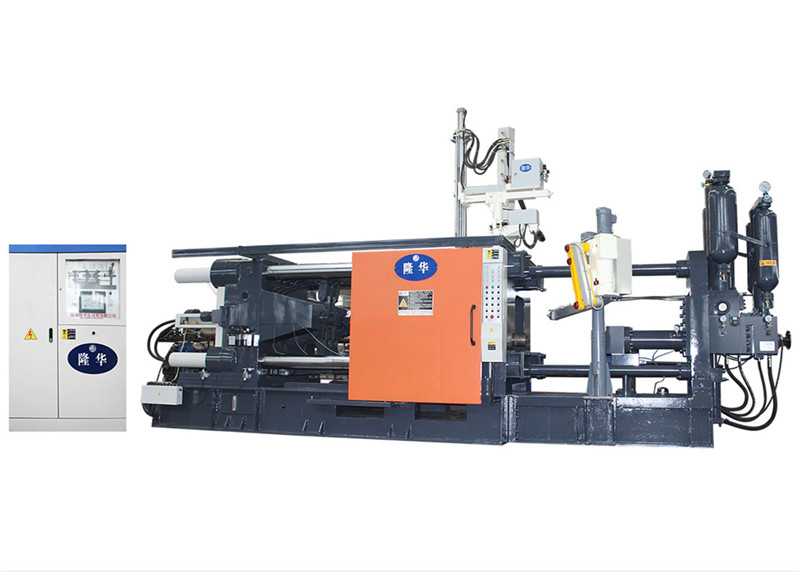

High performance die casting machine for al - mg alloy（LH-800T）
Product Description
The classification and segmentation of the injection process of the die casting machine are obvious and easy to be realized. which can meet the different requirements of the die casting process to a large extent, and adapt to the production of various types and requirements of the die casting
LH SERIES OF STANDARD PARAMETER TABLE (LH-800 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
8000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
810*810
|
|
TIE BAR DIAMETER
|
MM
|
￠170
|
|
DIE OPENING STROKE
|
MM
|
750
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
680
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
280
|
|
INJECTION POSITION
|
MM
|
0 -- 250
|
|
PLUNGER DIAMETER
|
MM
|
￠80----￠100
|
|
INJECTION STROKE
|
MM
|
720
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
153/78/57
|
|
CASTING FIANGE PROTRUSION
|
MM
|
20
|
|
CASTING FIANGE DIAMETER
|
MM
|
180
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
1900
|
|
LNJECTION WEIGHT(AL)
|
KG
|
13
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
350～900
|
|
EJECTOR FORCE
|
KN
|
315
|
|
EJECTOR STROKE
|
MM
|
200
|
|
MOTOR CAPACITY
|
KW
|
30
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
9*2.2*3.1
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
35
|
|
OIL TANK CAPACITY
|
L
|
1500
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Standard

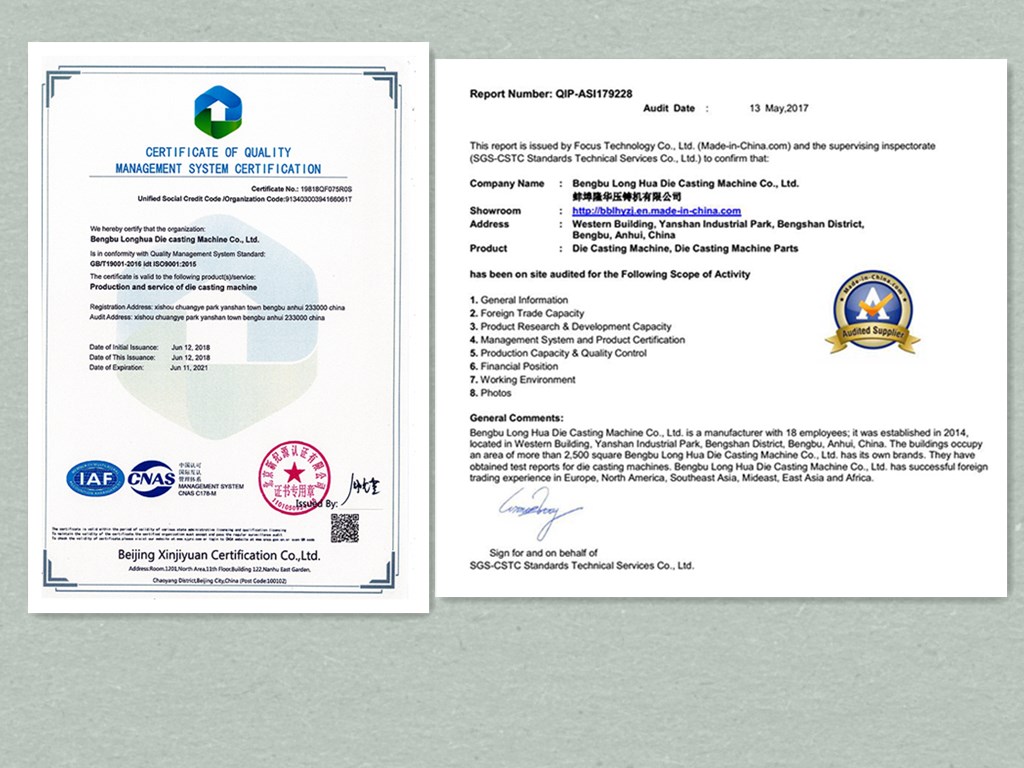

This die casting machine conforms to ISO9001:2008 and GSG.
After-Sales Service
After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug machines. Training the operator until you learn so far.
Company Information
Longhua Die Casting Machine Co., Ltd is a professional high-tech enterprise engaged in design,manufacture and sale of cold chamber die casting machines and die-casting peripheral equipments.
We have 37 years experience in "LONGHUA” brand die casting machine production and have many engineers who are responsible for the technical improvement in order to provide better machines for our customers.
Longhua’s quality goal is that “Today’s quality means tomorrow’s market”.
Our customers
We have customers all over the world who speak highly of longhuadie casting machines.
