Qianhang New Energy Technology Co.,Ltd built in the year 2015, which covered an area more 40,000 square meters with employees now than 100 persons.With the fast development ,we won the reputation"Technology Innovation Corporation and High New Tech corporation in the year 2017 .In 2019,we added the other two automatic production line ,our Technology and QC dept have matured completely . In 2020 , we start to build our Industrial anti-explosion lithium battery project.We sincerely welcome customers in the world to customize from us!
We need the exact charger specifications to start production, so please leave a message when confirm the order and provide us with all the necessary information below. Thank you!
Custom battery charger requires the following information
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug
Quick details
|
6000W-S
|
name
|

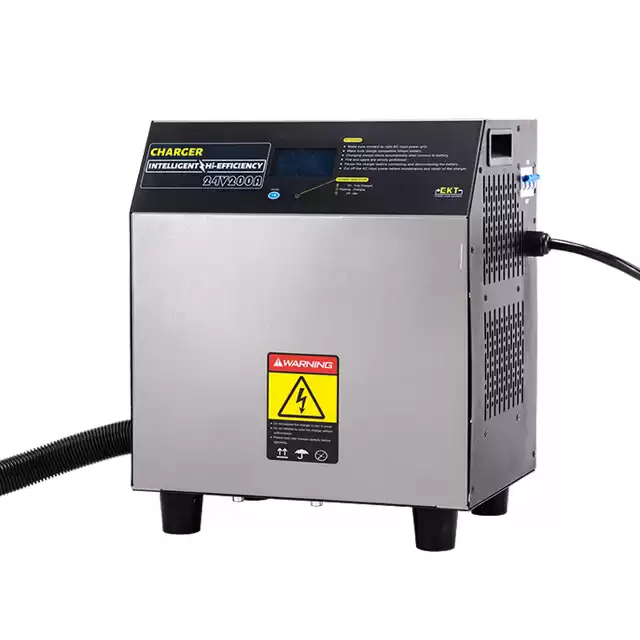

24V200A
|
|
input
|
input volt
|
AC100-240V
|
|
input phase
|
single phase
|
|
frequency
|
50/60Hz
|
|
input current（max）
|
<=29A
|
|
power factor
|
≥ 0.99
|
|
input power
|
≤6.3KW
|
|
input plug
|
L+N+PE
|
|
output
|
shift power
|
≥ 0.92
|
|
rated output volt
|
28.8V
|
|
rated output current
|
200A
|
|
rated output power
|
5.76KW
|
|
output volt
|
10Vdc～32Vdc
|
|
output plug
|
Rema320A
|
|
com
|
CAN
|
optional
|
|
charging protocol
|
customized
|
|
others
|
matched battery
|
lead acid/lithium
|
|
dimension
|
380X320X471(mm)
|
|
N.W
|
26KG
|
|
cooling
|
Air cooling
|
|
working temperature
|
-20° C ~ 50° C
|
|
work moisture
|
0% ~ 95%
|
|
protec
|
IP20
|
|
IP
|
IP54
|
|
noise
|
<65dB
|
|
altitude
|
24V200A
|
