High performance industrial fanless Mini Box PC

All-aluminum Fanless Box PC, with all generation I3/I5/I7 CPU Soldered on board, 2LAN,2COM,6USB



High performance industrial fanless Mini Box PC

Product Introduction

Designed to simplify industrial automation processes such as factory control and product lifecycle management, all Embedded Box PCs are reliable, flexible and low-maintenance, making them the perfect choice for industrial perfect for industrial automation.



Specifications optional configurations
Chassis All aluminium construction, sandblasted titanium grey Other colours can be customized

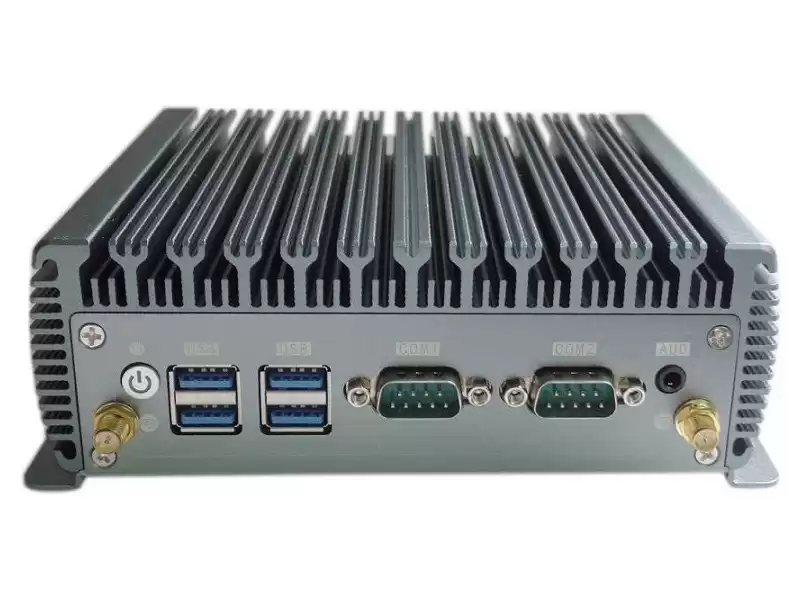

Front With indicator switch; 4USB3.0; 2COM; audio hole, 2 antenna holes COM only support RS232

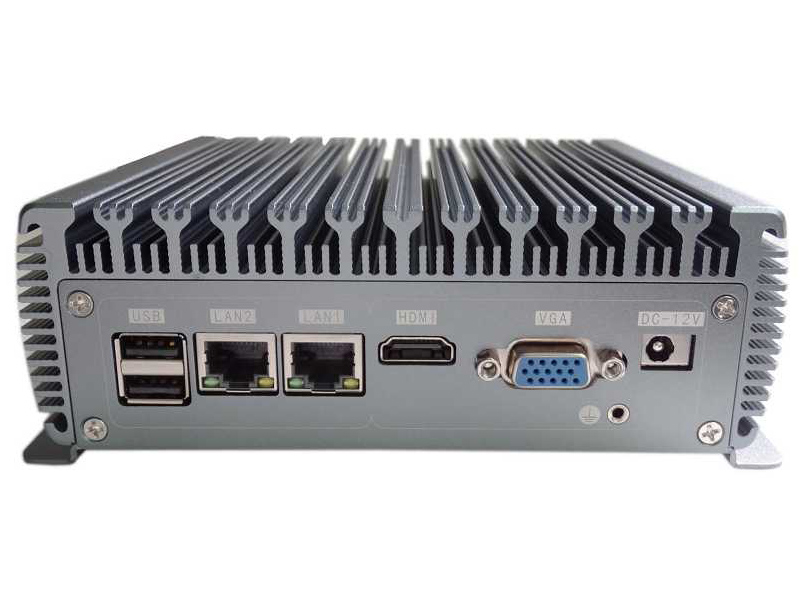

Back DC IN;VGA+HDMI display; 2RJ45 gigabit LAN;2USB;
Hard disk rack Motherboard supports MSATA SSD and 2.5" HDD
Adaptive Motherboard Dedicated board sticker for all generation CPU motherboards
CPU/GPU I3 5015U Optional I5 5300U; I7 5500U etc.
Memory 4G DDR3  Optional 8G notebook memory
Hard Disk 128G MSATA Optional 32G/64G/256G up to 1T mSATA SSD
Ethernet 2LAN (Gigabite Network)
Display Interface VGA+ HDMI
Size 155*125.5*52.5mm(Dimensions without bracket) Net/Gross Weight 1.5/2KG
Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation



Product Features

■ Soldered on board 4th/5th generation I3/I5/I7 CPU

■ 2 Gigabit LAN ports, 2COM 6 USB

■ Optional WIFI or 4G wireless

■ Supports VGA+HDMI independent dual display

■ Flexible configuration, optional memory hard drive of various capacities

■ DC12V input





Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

Order information

MIS-EPIC03/5015U i3 5105U CPU
MIS-EPIC03/5300U i5 5300U CPU
MIS-EPIC03/5500U i7 5500U CPU

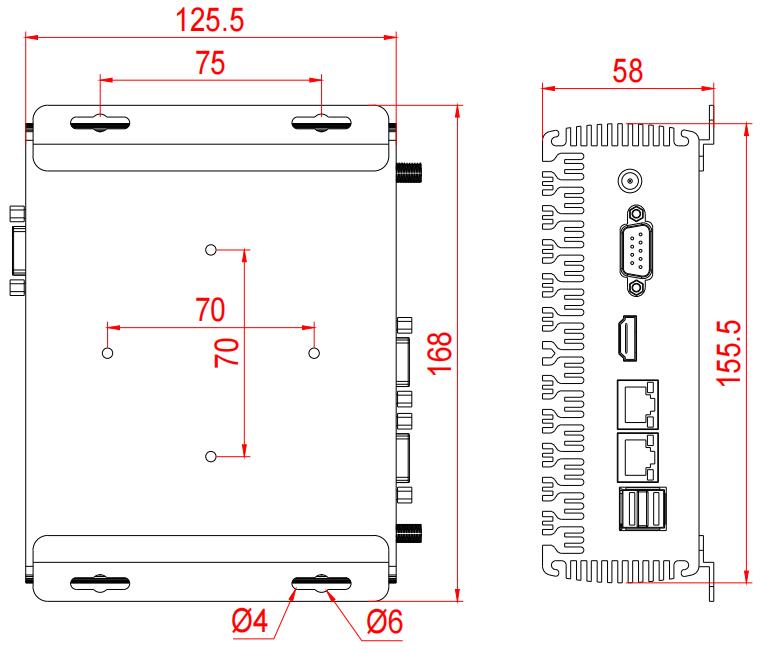

Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
