High Performance Industrial Grade Fanless mini box PC
Product Introduction
As part of our Industrial PC Series, this Fanless Box PC, it is well-suited for machine leaning,deep leaning,intelligent surveillance,robotic control,edge computing,and more AIoT application.
| Specifications |
optional configurations |
| Chassis |
All aluminum case with teeth, sandblasted and oxidized black |
Other colours can be customized |

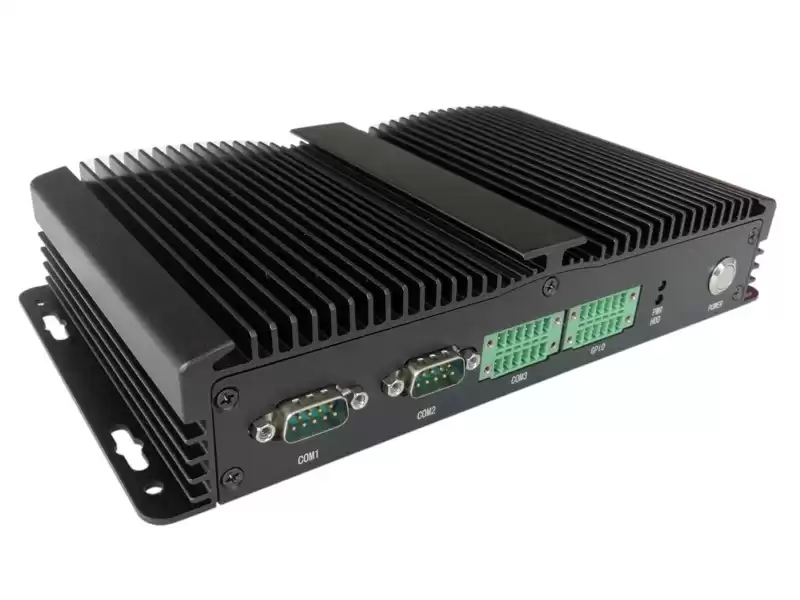

| Front |
With Power Switch,Indicator ; 2COM(DB9); 4COM and GPIO(Phoenix Terminal) |
Customizable with customer logo or more serial or parallel ports |

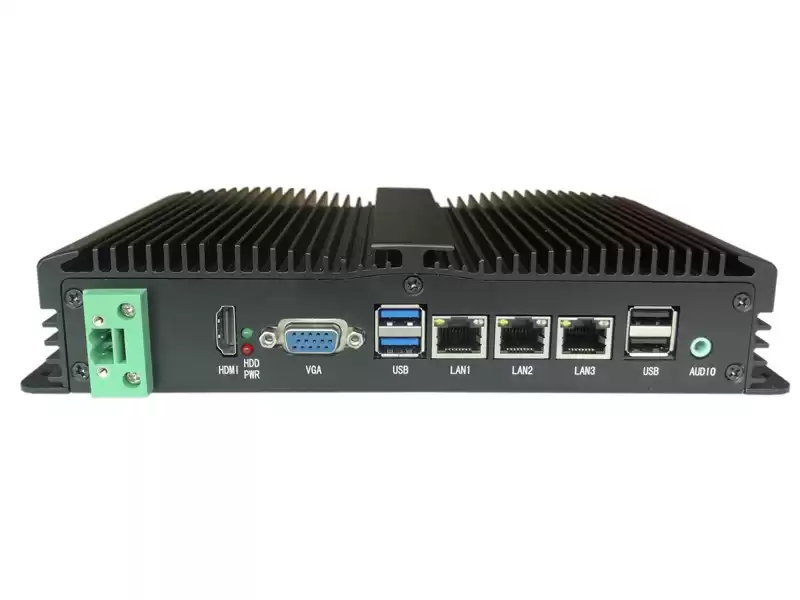

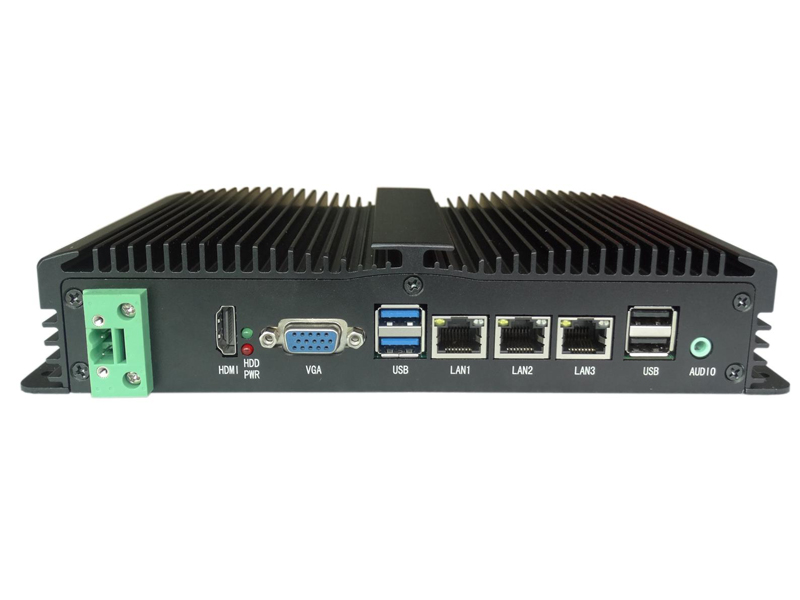

| Back |
DC 12V input; VGA + HDMI display; 2USB3.0;2USB2.0; 3RJ45 gigabit network port ;Line out |
Optional 2 antenna holes for 4G or WIFI; also optional 2 network ports, 4 network ports (less 2 USB) |
| Hard disk rack |
Support mSATA SSD |
Optional 2.5" Hard Disk |
| Adaptive Motherboard |
Dedicated Soldered Onboard to the motherboard of the 4th/5th generation CPU |
|
| CPU/GPU |
Intel i5 4300U |
Optional Soldered Onboard Intel 4th/5th Generation i3/i5/i7 U Series CPU |
| Memory |
4G DDR3 |
Optional 8G notebook memory |
| Hard Disk |
128G MSATA |
Optional 32G/64G/256G/1T mSATA SSD; |
| Ethernet |
2LAN (Intel Gigabite Network) |
Optional 4LAN |
| Display Interface |
VGA+ HDMI |
|
| Size |
234*200*64.5mm |
Net/Gross Weight |
1.5/2KG |
| Power Supply |
Standardized 12V@5A adapter |
|
| Installation mode |
Bracket installation |
Product Features
■ All-aluminium toothed fan-free design, fully sealed
■ Compact size, flexible configuration
■ 2~4LAN（Intel network chip)
■ 6COM(Optional 2RS485),4USB(2USB3.0)
■ Support VGA+HDMI dual display
■ GPIO 4-in/4-out GPIO
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

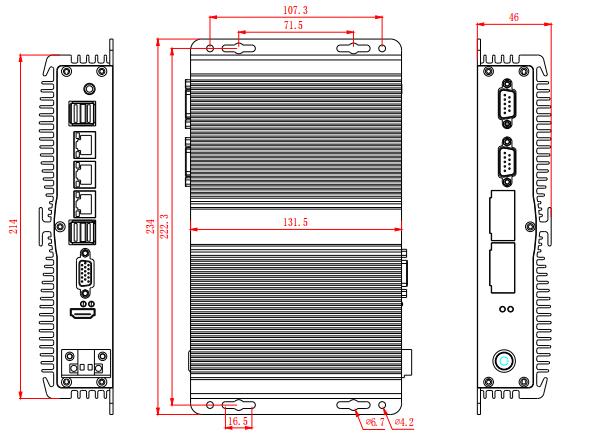

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
