High Permeability Transformer Soft Magnetic Core Material Current Transformer Core Permalloy

Permalloy can be divided into 4 categories according to composition: 35%~40% Ni-Fe alloy, 45%~50% Ni-Fe alloy, 50%~65% Ni-Fe alloy and 70%~81% Ni-Fe alloy . Each type can be made into materials with circular hysteresis loop, rectangular hysteresis loop or flat hysteresis loop.



Introduction:

Permalloy strip is an alloy material with high magnetic permeability and high permeability. Its characteristics are: 45%-81% NI medium nickel and high nickel soft magnetic alloy: Bs=0.7-1.6T. The magnetic permeability ranges from 50,000 to 50,000. 500,000, using different

The production process and heat treatment system can obtain ordinary loop-high initial permeability, rectangular loop-high residual magnetic induction, and flat loop-low residual magnetic induction. High magnetic induction, high magnetic permeability and low loss to reduce the weight and volume of magnetic components. Mainly used for metal shields.

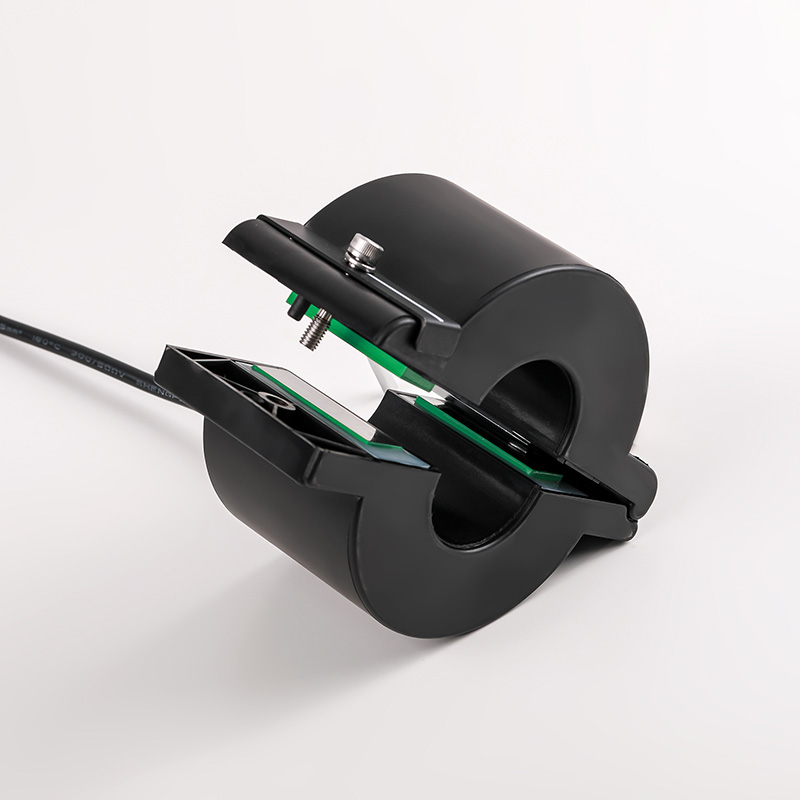

Permalloy are used to harvest energy the electromagnetic ring with 1J85 grade strips:

  • Very high permeability and low iron loss under weak magnetic field.
  • Very good corrosion resistance
  • Can be used in outdoor and humid environment
  • Suitable for small current inductors

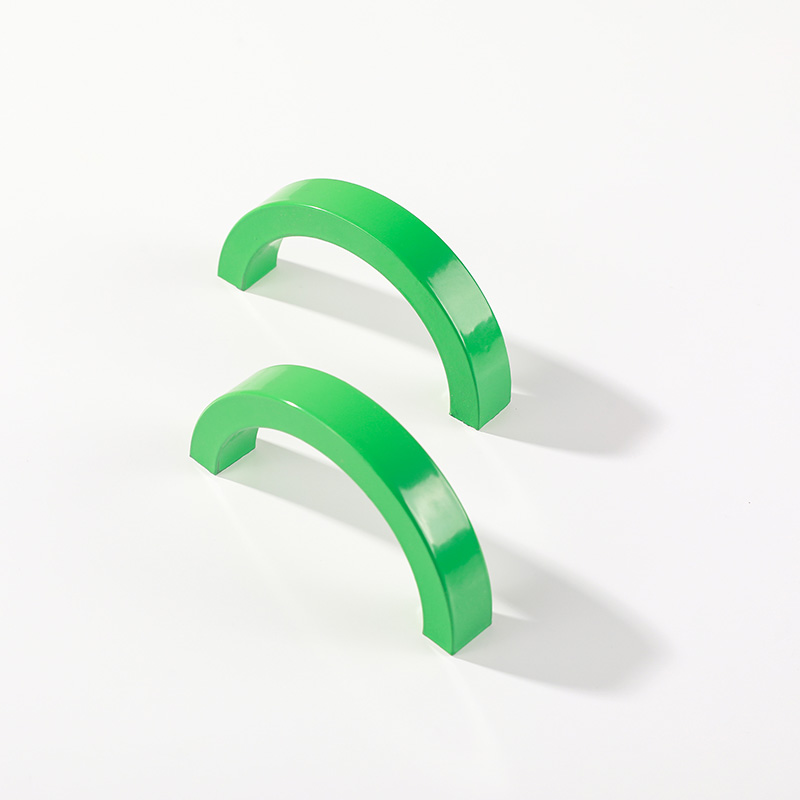

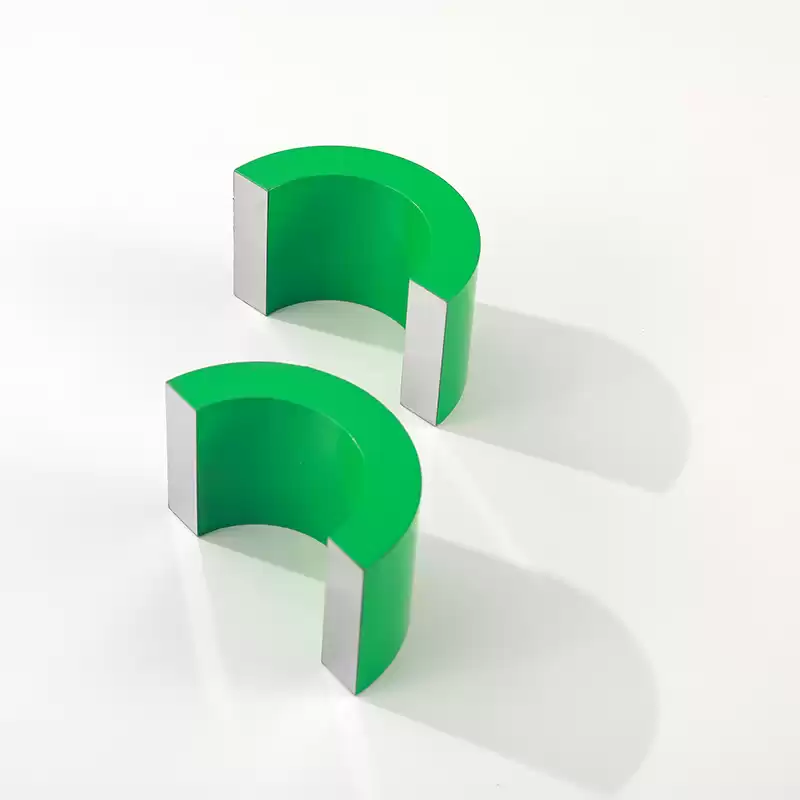

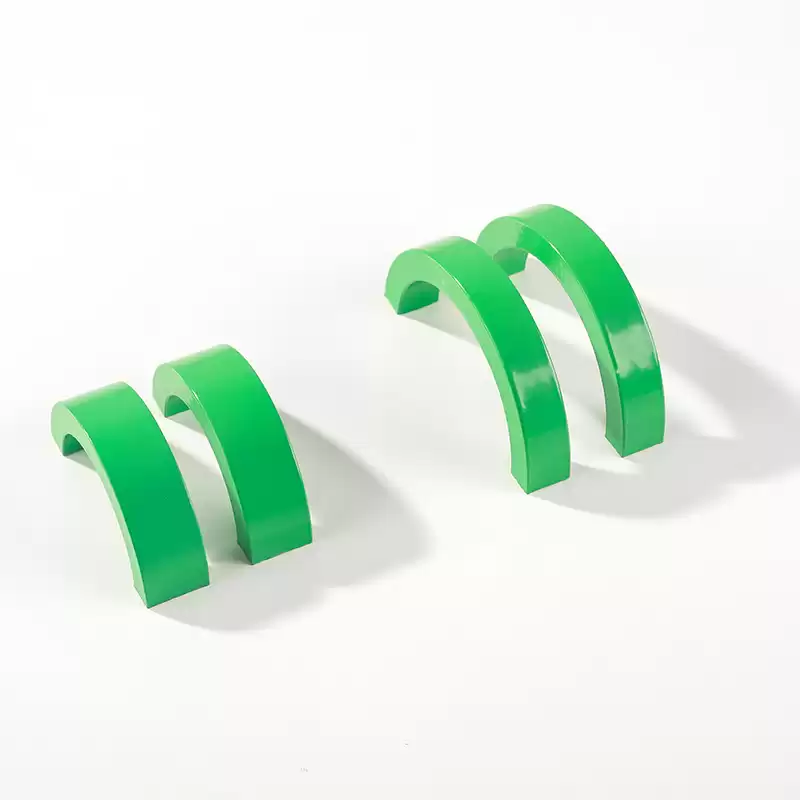

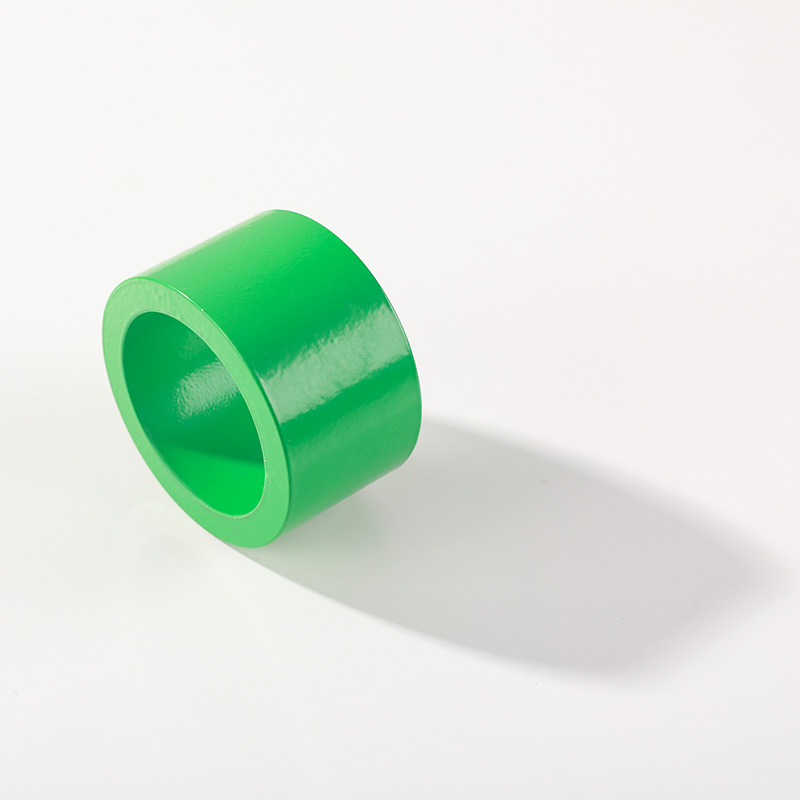

Permalloy core can be customised

Size ( d * D  * B )(mm)

Cross-sectional area(mm²)

Weight(g)

Inductance(uH)(1K  1V  25℃) Magnetic circuit length(mm)
45*76*40 620 973.46 70.6 189.97
52*790*40 540 917.93 56.7 205.67
55*95*20 400 778.56 34.7 235.5
42*72*25 375 554.73 49.5 178.98
48*78*25 375 613.12 37.3 197.82
54*84*25 375 671.51 33.1 216.66
55*80*28 350 613.12 38.7 211.95
54*79*28 350 604.04 38.7 208.81
65*90*25 312.5 628.53 29.2 243.35
65*90*20 250 502.82 31.9 234.35
55*75*25 250 421.72 24.7 204.1
55*75*20 200 337.38 25.8 204.1
65*90*15 187.5 377.12 21.4 243.35
55*75*15 150 253.03 21.5 204.1
48*68*15 150 225.78 22.4 182.12
38*59*12 126 158.59 22.3 152.29
70*85*15 112.5 226.27 6.9 243.35
29*50*10 105 107.64 15.7 124.03
127.5*115.5*10.5 62.4 196.76 3.2 381.51
59*69*8 40 66.44 5.7 200.96
52*40*6 36 42.89 5.1 144.44
38*47*4 18 19.85 3.5 133.45



Application:

The permalloy core are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.
