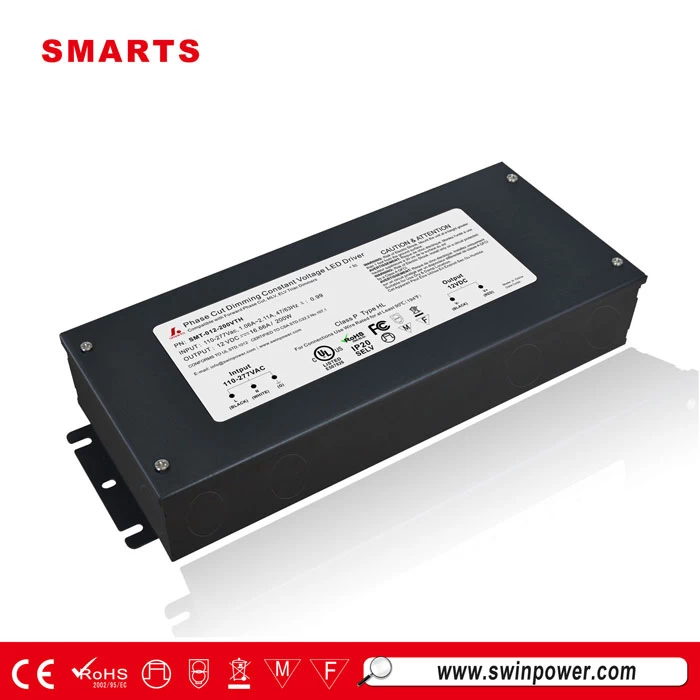

high power 12volt 200 watt led dimmable led power supply

Smarts Electronics' SMT-012-200VTH LED Driver is 100-277vac 12vdc 200w triac dimmable constant voltage led driver for USA and canada with 7 years warranty.


  • CertificationCE,ROHS,UL,CLASS P,type HL,FCC
  • Size260*103*44.5m m
  • Dimming modetriac dimmable
  • Working Modeconstant voltage
  • Output Current16.6
  • Output Voltage12vdc
  • Input Voltage100-277VAC

high power 12volt 200 watt led dimmable led power supply


Smarts Electronics' SMT-012-200VTH LED Driver is 200 watt led power supply which are paired with relative junction. box. it's use for indoor led lights with 7 years warranty.


  Specification

Model

SMT-012-200VTH

SMT-024-200VTH

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±1%



Rated current

16.67A

8.33A

Rated power

200W

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor(Typ.)@ full load

0.96@120VAC  0.97@277VAC

0.97@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Inrush Current (Typ.)

15A, 50%, 1.4ms

Full Load

Efficiency(Typ.)

>88%

>88%

AC Current(Typ.)

2.3A@110VAC

1.76A

1.76A

.A

1.74A

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥50%load)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Weight

1.8Kg

Size

260*103*46mm (L*W*H)

packaging

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

Can we make the 120w 150w 200w 250w constant volatge led drivers into one output?

Answer:  Yes.



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver


  Packaging & Shipping


what is the packing situation ??



7 years warranty 277vac to 24vdc class 2 led power supply 24v 100w

MOQ: 1 PCS

Payment : T/T  Western union  Paypal  Credit Card

Delivery : within 7 working days for sample order ,  13 working days for 500pcs

Shipping term : FedEx  DHL  UPS  TNT  Air /Sea Transportation

SMT-012-200VTH
