High power Dual glass Bifacial 640W 645W 650W 670W Shingled Solar Panel

Double glass shingled solar module has higher power generation efficiency and lower attenuation rate.

In line with the development of green energy,easier to recycle.



  • Warranty25 years linear warranty
  • CertificateTUV, CE, IEC,

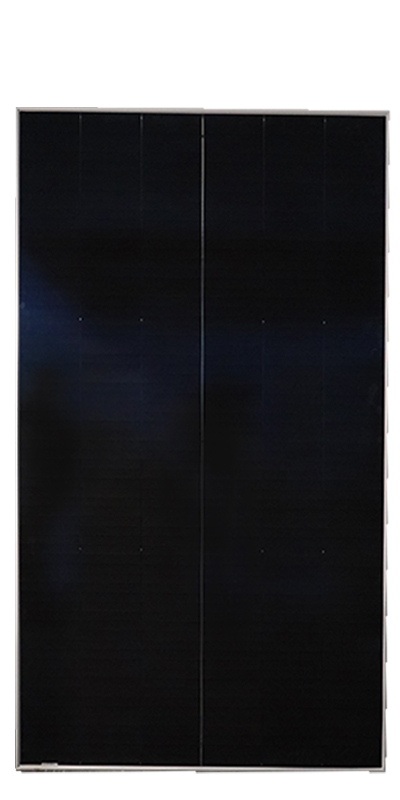

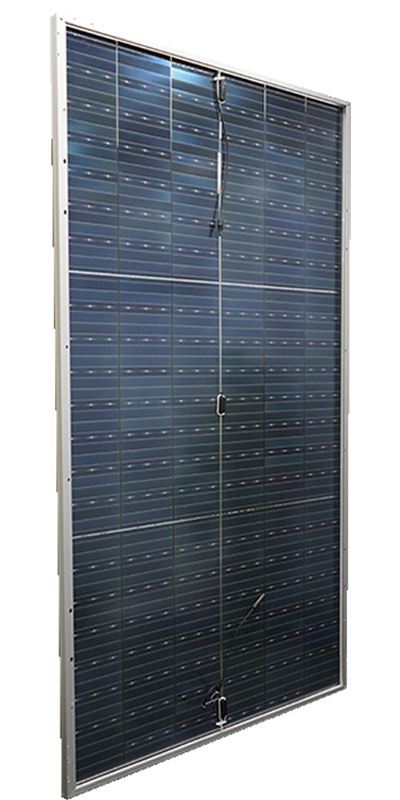

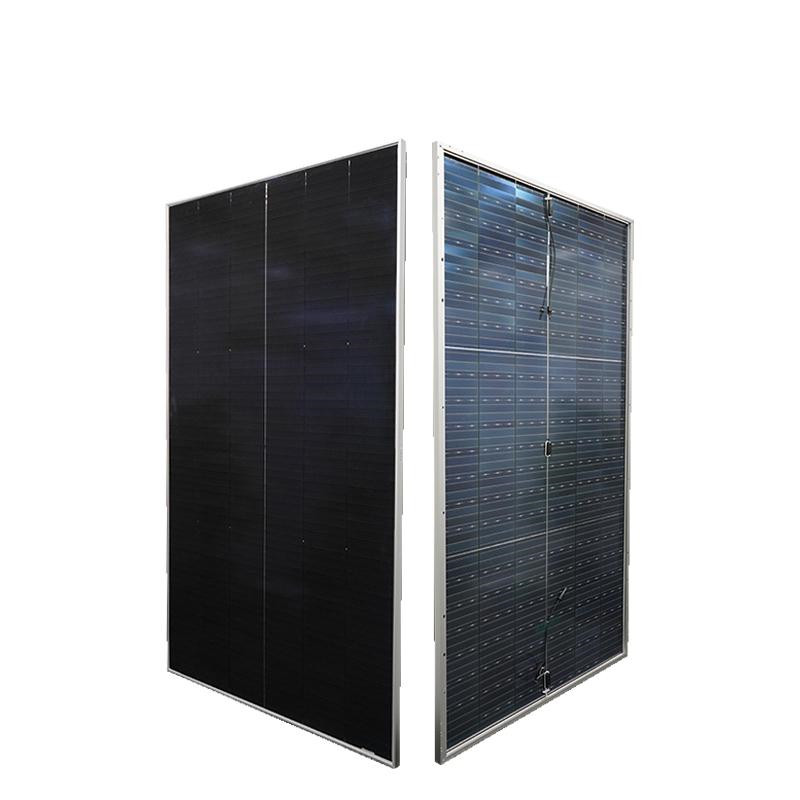

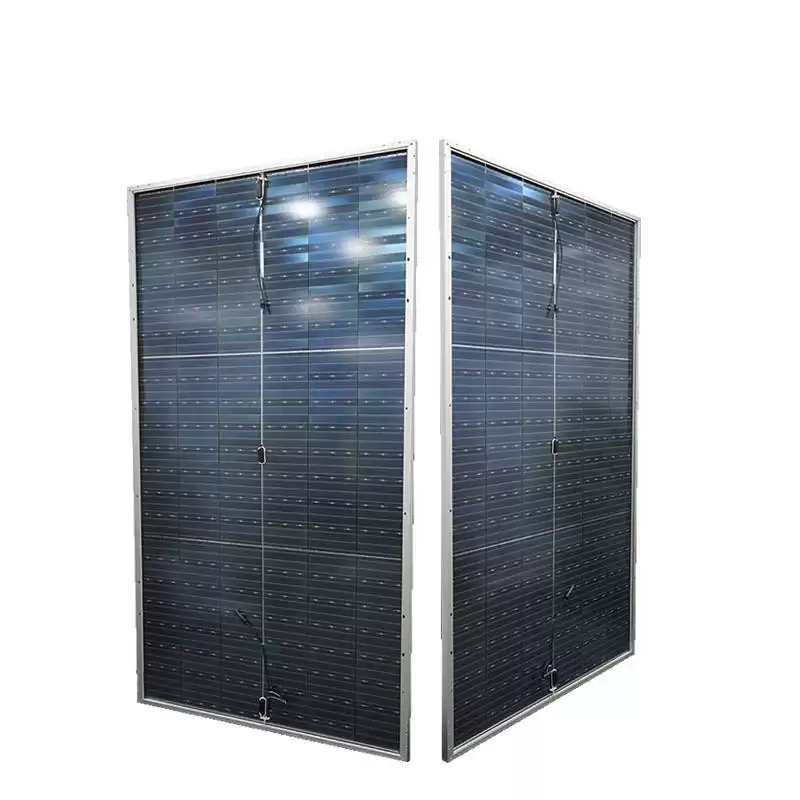

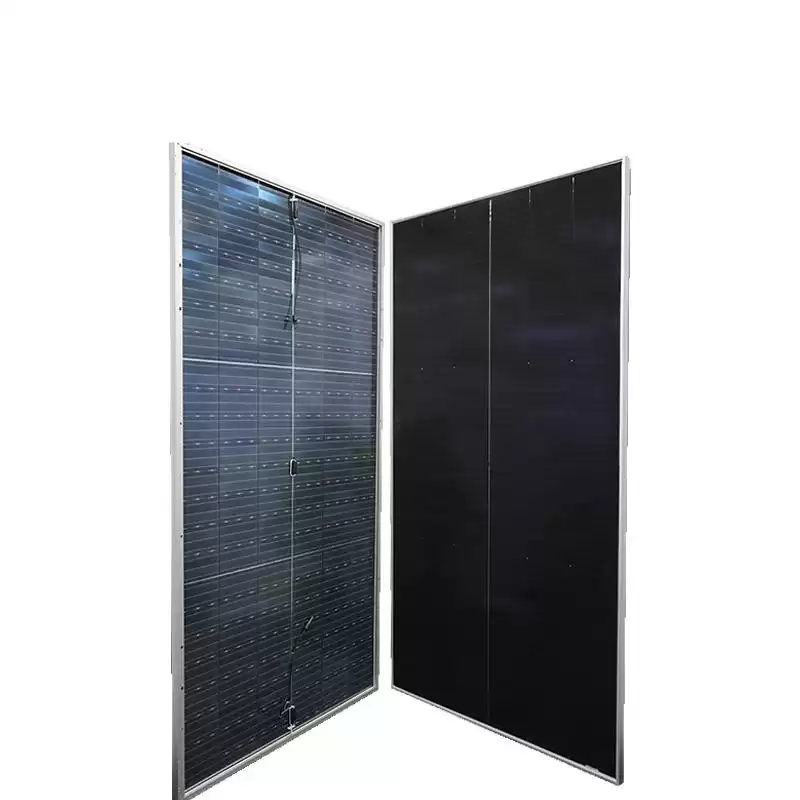

Monocrystalline Dual Glass Bifacial Shingled solar Panel

Product Details


  • The connection method of the laminations can decompose the stress of the cells. It can withstand mechanical loads better than traditional solar panels with fewer cracks.
  • Shingled solar panels have stronger resistance to shadow occlusion and lower working temperature.

Product Specification

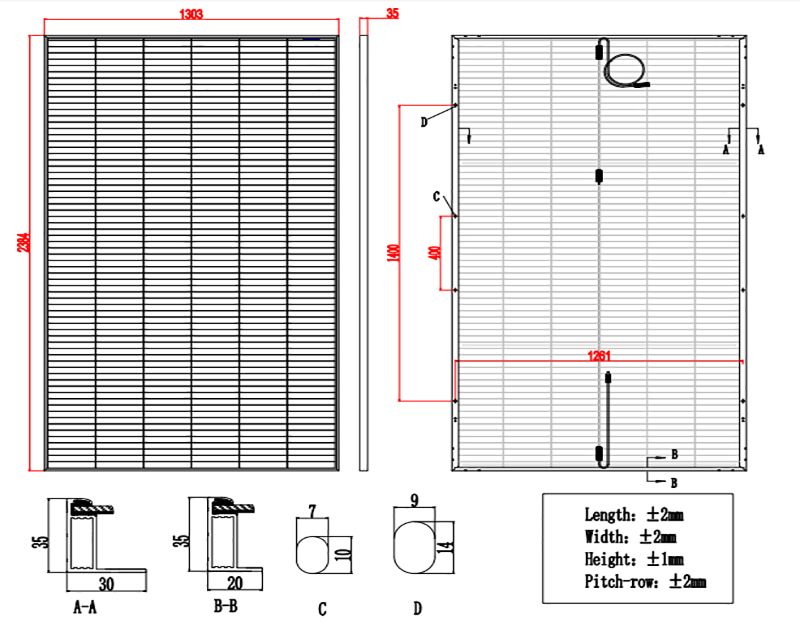

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon
NO. of Cells 414(69*6)
Dimensions 2384*1303*35mm
Weight 39.0kg
Junction Box IP68, two diodes
Front Glass  Dual glass, 2.0mm
Frame Anodized aluminum profile
Output Cables 4.0mm²
Connectors MC4
ELECTRICAL PARAMETERS

670 665 660 655 650 645 640 635
Rated Maximum Power (Pmax) [Wp] 670 665 660 655 650 645 640 635
Open Circuit Voltage (Voc) [V] 47.1 47.0 46.9 46.8 46.7 46.6 46.5 46.4
Short Circuit Current (Isc) [A] 18.23 18.14 18.04 17.94 17.84 17.74 17.64 17.54
Maximum Power Voltage (Vmp) [V] 39.1 39.0 38.9 38.8 38.8 38.7 38.6 38.5
Maximum Power Current (Imp) [A] 17.14  17.05 16.95 16.86 16.77 16.68 16.58 16.49
Module Efficiency [%] 21.6 21.4 21.2 21.1 20.9 20.8 20.6 20.4
Working Temperature [°C] 42.3℃(±2℃)
Maximum System Voltage DC 1500 /1000 (IEC)
Maximum Series Fuse Rating  20
Application Class Class A
Maximum Surface Load Capacity[Pa] 5400



Difference

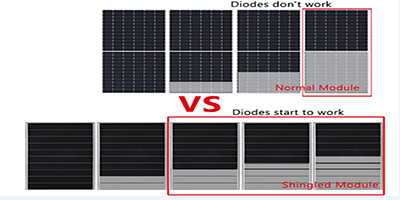

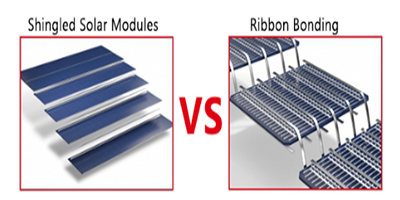

Different welding methods When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.

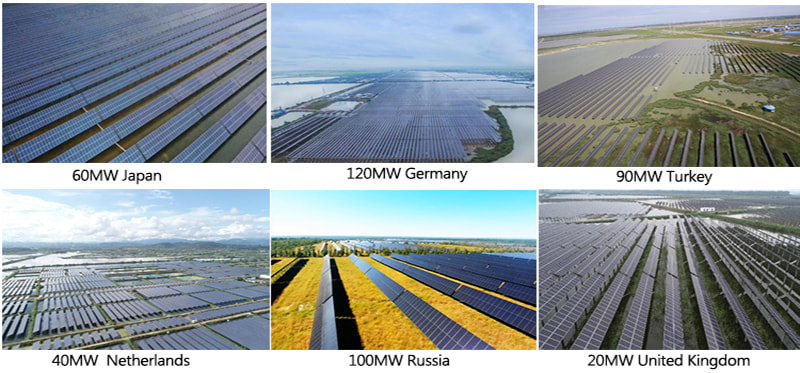

Projects

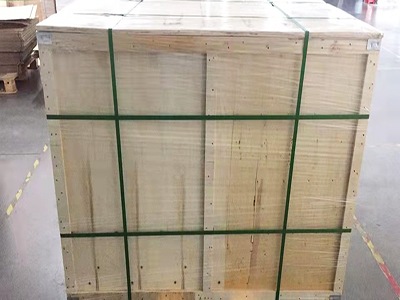

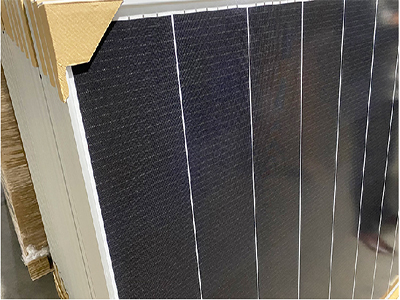

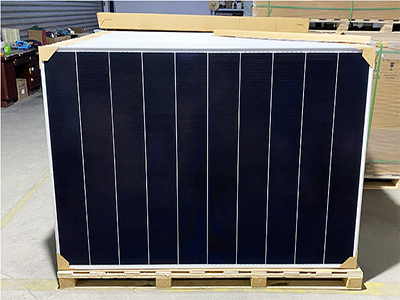

Packing
