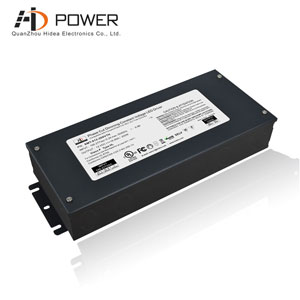

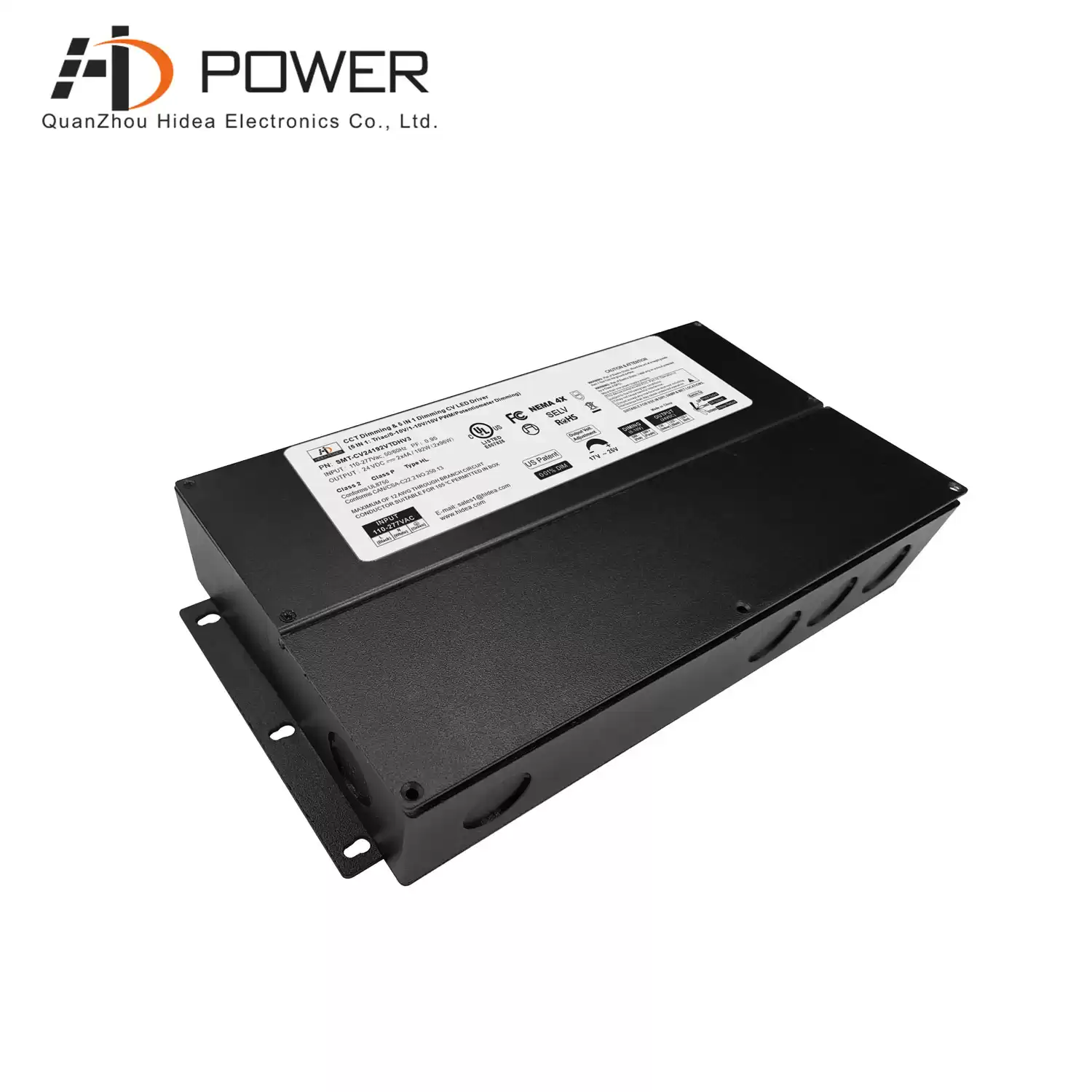

smarts power 24v 192W new 5-in-1 dimming power supply
can be compatible with PWM and step-down output, the
dimming range is 100%-0.01% ultra-deep amplitude,
with multiple outputs
|
|
Specification
|
Model Number
|
SMT-CV24192-VTDH2CV3
|
SMT-CV48192-VTDH2CV3
|
|
OUTPUT
|
|
Rated Power
|
192W (2*96W)
|
192W (2*96W)
|
|
Rated Voltage
|
24V
|
48V
|
|
Rated Current
|
2*4A
|
2*2A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
87%@120VAC 88%@277VAC
|
88%@120VAC 89%@277VAC
|
|
AC Current(Typ.)
|
2.0A@100VAC
|
1.9A@100VAC
|
|
Inrush Current(Typ.)
|
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
254x132x42.5mm (L*W*H) N.W: 2.5kg
|
|
Packing
|
8pcs/CTN G.W:17.8KG SIZE: 325*315*185mm
|
Compatible Light Type

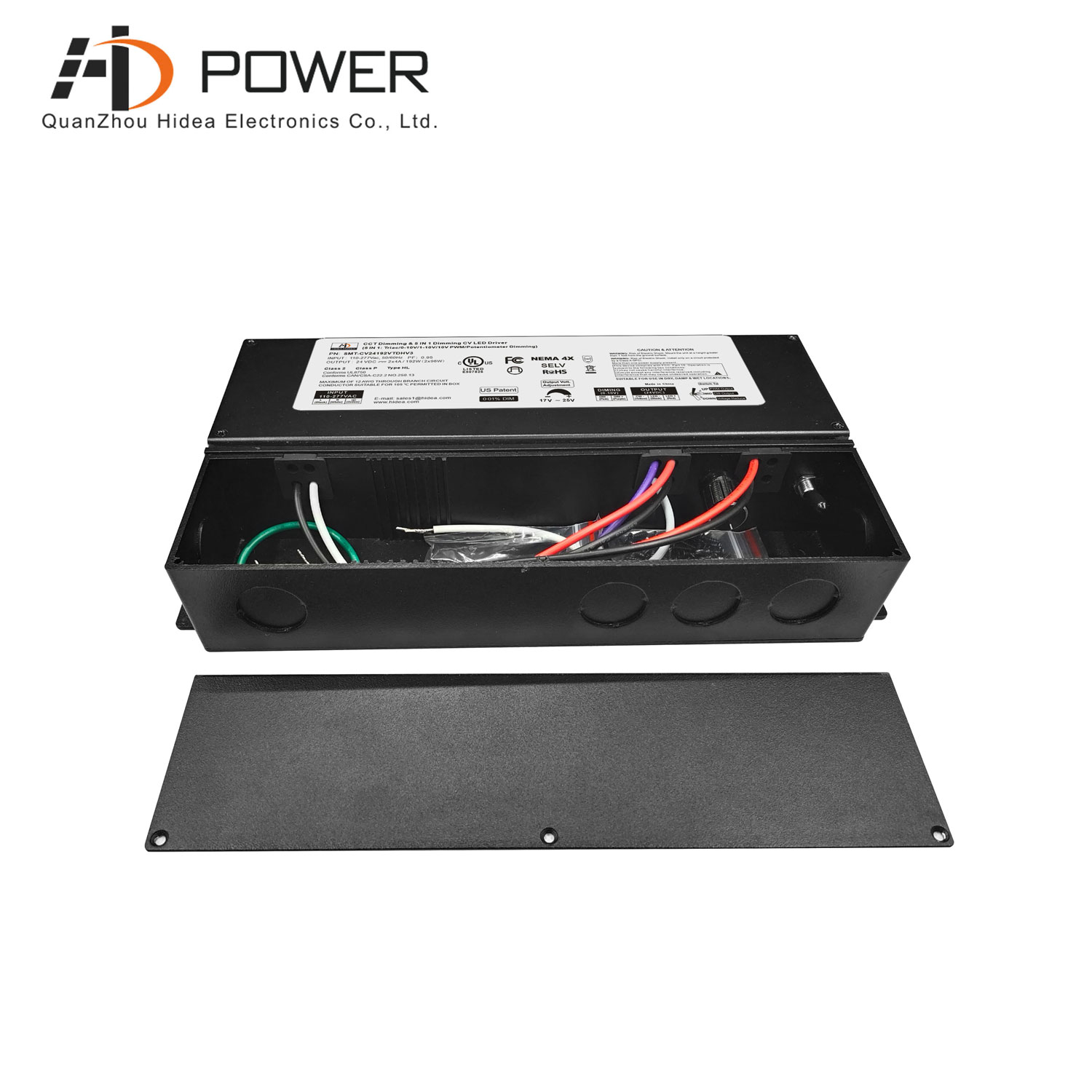

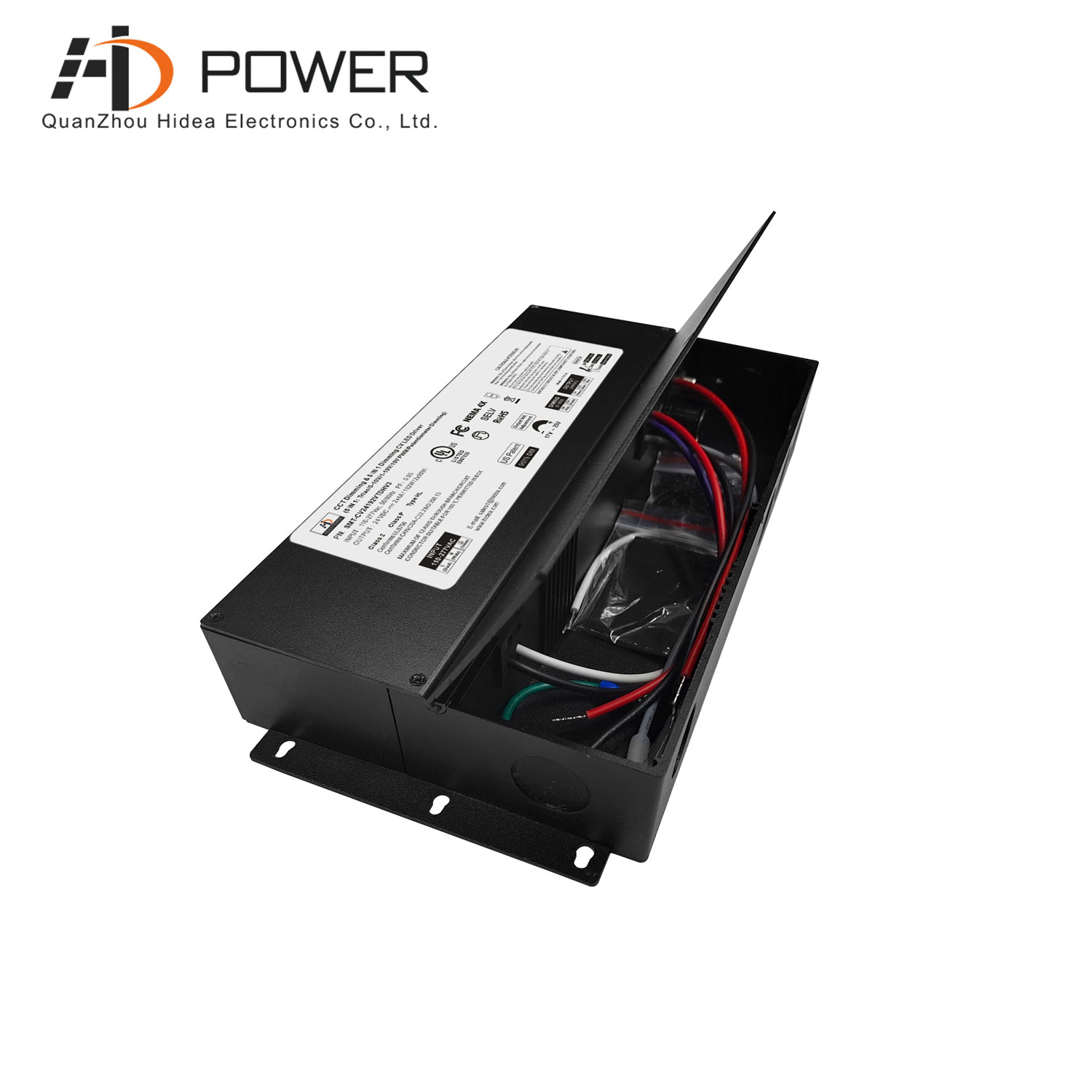

UL cUL Listed, Class 2, Patented Flexible Clamshell Wiring Design, Wiring Compartment, Space for Adjustable Wiring, Input Voltage 100-277vac, Suitable for North American Lighting Projects
