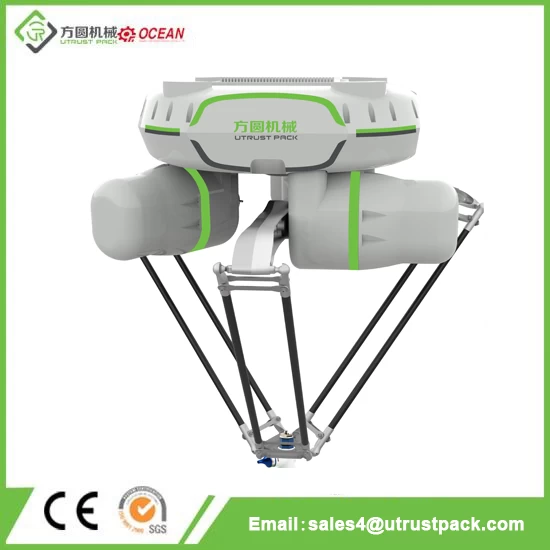

High Precision 4 Arms Delta Robot for Picking&Loading

High Precision 4 Arms Delta Robot for Picking&Loading is applicable for picking or placing biscuit,candy,tin can,bottle,accessories et










High Precision 4 Arms Delta Robot for Picking&Loading



Main Features

1,Its body material is mainly made of carbon fiber and aluminum alloy composition.

2,It can accurately identify the target object through a sensor or visual system, motion tracking, picking and placing the target object to the designated position.

3,The high-speed handling unit with robot functionality for free movement in three dimensions provides precision in movement and positioning as well as a high dynamic response of up to 180 picks/min.

4,The highly rigid mechanical design and low moving mass make the parallel delta kinematic system with toothed belt axes up to three times as fast as comparable Cartesian systems.

5,Three double rods keep the front unit horizontal at all times. The axes and servo motors do not move with the unit.

6,The parallel kinematic system is suitable for handling loads of up to max. 5 kg.

High Precision 4 Arms Delta Robot for Picking&Loading
Model UT-1200 UT-1600 UT-2000
Axis 4 4 4
Movement diameter(mm) 1200 1600 2000
Max pick-up height (mm) 545 695 875
Payload (kg) 8 8 15
Max load (kg 20 20 30
Repeatability (mm) ±0.1 ±0.1 ±0.1
Angle Positioning Accuracy (°) ±0.1° ±0.1° ±0.1°

Rotation Angle

±45°/±90°/±180° ±45°/±90°/±180° ±45°/±90°/±180°

Allowable rated moment of inertia

0.01 0.01 0.01

Maximum allowable moment of inertia

0.025 0.025 0.025
Power supply (v) AC380 AC380 AC380
Rated Power(KVA) 7.5 7.5 11
Body Weigh  100  115  130


Environment Temperature

 0~45°C  0~45°C  0~45°C

 Product Details
 Warranty 1 year delta robot for picking

Warranty 1 year delta robot for picking


Contact Supplier








Certifications

Warranty 1 year delta robot for picking


Our Service on High Precision 4 Arms Delta Robot for Picking&Loading

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



FAQ

1.What is your installation services? 2.What about your guarantee of quality?
User mauual and videos to surpport for installing,debugging,operation of the machine.It will indicate you how to use this machine well. The High Precision 4 Arms Delta Robot for Picking&Loading is 1 year warranty,all machine part can be replaces within 1 year if broken(not including man made)
3.If we have very special request for the production line,could you help me to do the design? 4.Can I visit your factory?
Experienced mechanical designer customized-design provided. Yes,welcome please.
5.If we have samoles of new products,can you help to analysis and design the machine? 6.Do you have certificate?
Yes.Our technical department can help to analysis design and test the new products you offered. Yes,we have some,like CE/SGS.
