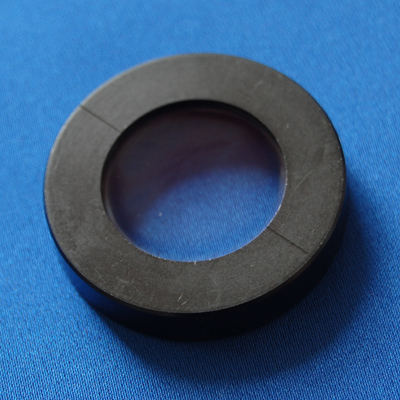

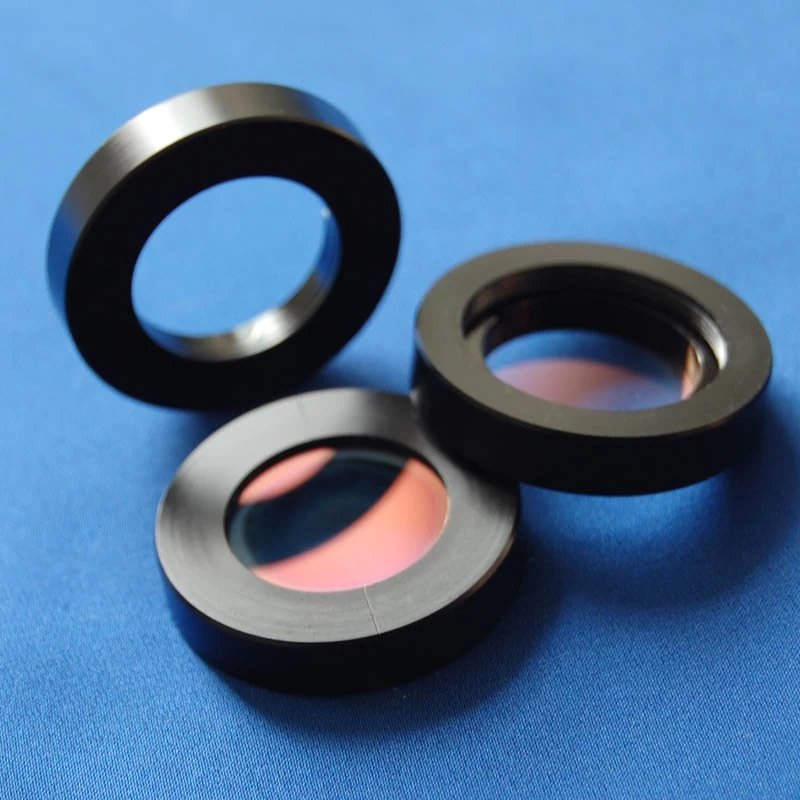

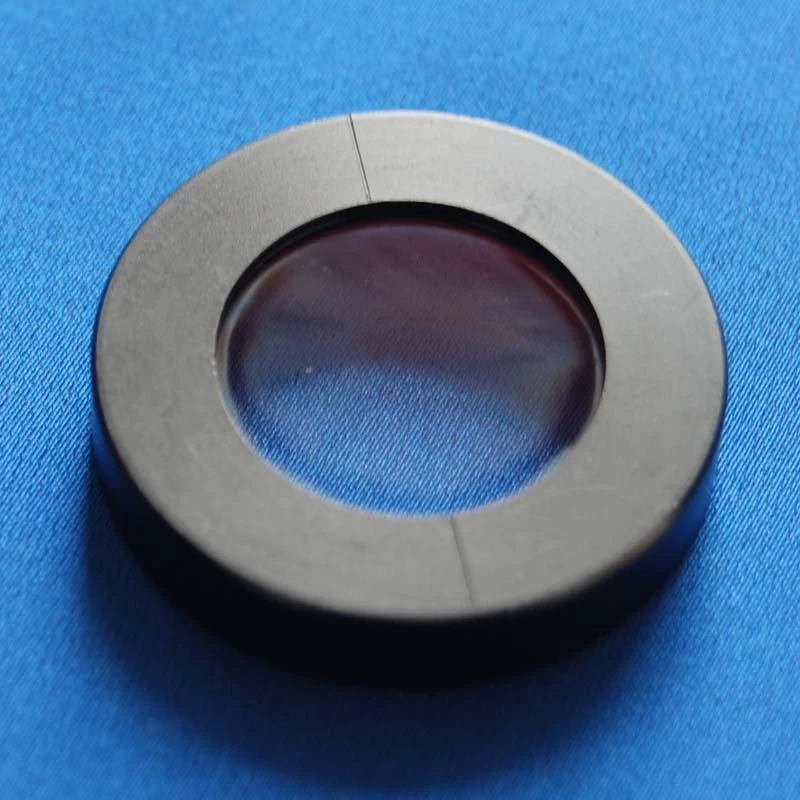

High Precision Achromatic Waveplate
Achromatic Waveplates(Retarders), AWP is composed of one piece of Crystal Quartz and one piece of Magnesium Fluoride, MgF2. Unlike standard waveplates, AWP provide a constant phase shift independent of the wavelength of light that is used. The Retardation tolerance of our AWPs is better than λ/100 over the entire wavelength range.The flat response of an AWP is ideal for use with tunable lasers,multiple laser-line systems and other broad spectrum sources.
|
Specifications:
|
|
|
Material:
|
Crystal Quartz And MgF2
|
|
Dimension Tolerance:
|
+0.0/-0.2mm
|
|
Surface quality:
|
40-20
|
|
Parallelism:
|
3 arc sec
|
|
Wavefront Distortion:
|
λ/4@632.8nm
|
|
Retardation
|
λ/2 And λ/4
|
|
Retardation tolerance:
|
λ/100
|
|
Coating
|
R<0.8%@ Wavelength
|
|
Typical Sizes:
|
|
|
Size(mm)
|
Size(mm)
|
|
Φ 5.0
|
Φ20.0
|
|
Φ10.0
|
Φ25.4
|
|
Φ12.7
|
Φ30.0
|
|
Φ15.0
|
Φ38.1
|
