SPECIFICATIONS
1. BTS series high-precision battery testing machine system Scope:comprehensive performance testing for lithium polymer, lithium ion, nickel metal hydride, nickel cadmium, lead-acid battery of ; battery materials research; small quantities of cell production and capacity into sorting; combination of battery, laptop battery testing.
2.System hardware is stable and reliable, each channel has an independent constant-current and constant voltage source hardware.
3. Hight speed data acquisition , accurately capture the details of the changes of voltage and current, with log function. powerful data and curve processing, report function. Data and curve can be exported to Excel, Word, data and curves can be edited.
4.Full range of clamp can be adapted to test for different specifications batteries, button batteries, battery combination.
5.Complete model: design and manufacture various types of equipment according to customer, current within 1mA ~ 1000A, voltage within 2V ~ 500V ,also can increase the negative voltage. 6.Can be used offline, can be measured temperature and resistance, and the laptop battery SMbus function. (This refers to models with resistance and temperature)
7.Supplied voltage current accuracy calibration software, you can change the box and variable range.
8.Optional serial port, network and USB link. PC software using Client / Server mode, remote control, a server can be linked up to 250 clients (including remote customer). Efficient and reliable use Tcp / Ip protocol, easy expansion, you can use the existing office network and computer equipment operation and cost savings.
Technical Specifications - Single module Unit (Type BTS-3008)
|
Input Power
|
220 V ±10% / 50 Hz
|
|
Current output range
|
±2200mA
|
|
Voltage measuring range
|
5V
|
|
Input impedance
|
≥10MΩ
|
|
Power
|
100W
|
|
Current measurement accuracy
|
±（0.2% of reading + 0.1% of range）
|
|
Voltage Measurement Accuracy
|
±（0.1% of reading + 0.05% of range
|
|
Current / voltage / time resolution
|
0.1mA /0.1mV/s
|
|
Cyclic measurement range
|
1-9999times
|
|
Data recording condition
|
timeΔt (1 ~900s)；VoltageΔV (5-5000mV)；Current ΔI (1.5-2200mA)
|
|
Connector
|
RJ45 network
|
|
The number of channels per Unit
|
8 point
|
|
Volume
|
197D x 245W x 60H (unit：mm)
|
|
Weight
|
about10kg
|

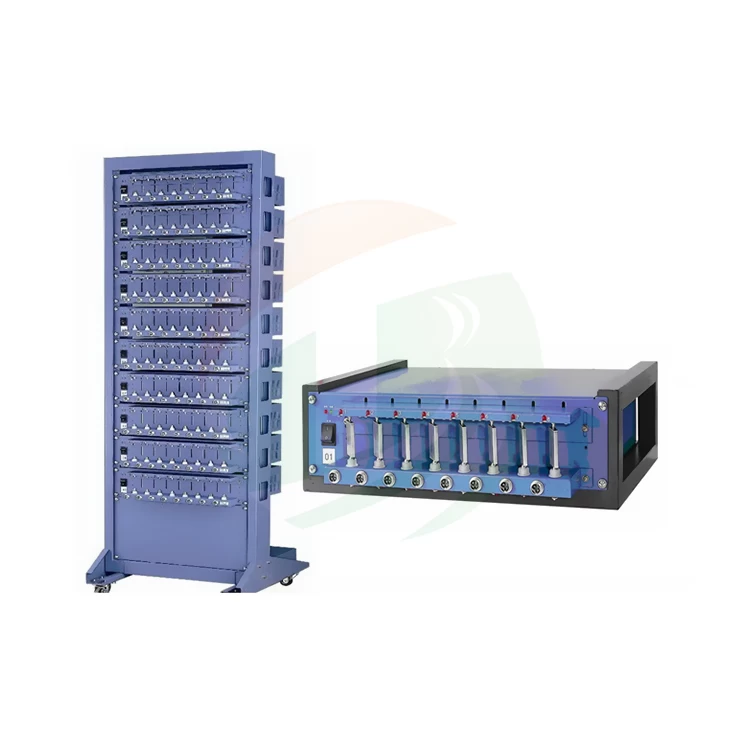

Unit appearance
Pouch cell testing clamps
Cylinder cell testing clamps
