Color Sorting Machine Working Principle
CCD rice color sorter works by using a high-resolution CCD camera to capture images of the rice. The camera is connected to a computer which processes the images and identifies the different colors in the rice. The computer then sends a signal to an air jet system which ejects any grains that do not match the desired color. This process is repeated until all of the grains have been sorted according to their color.

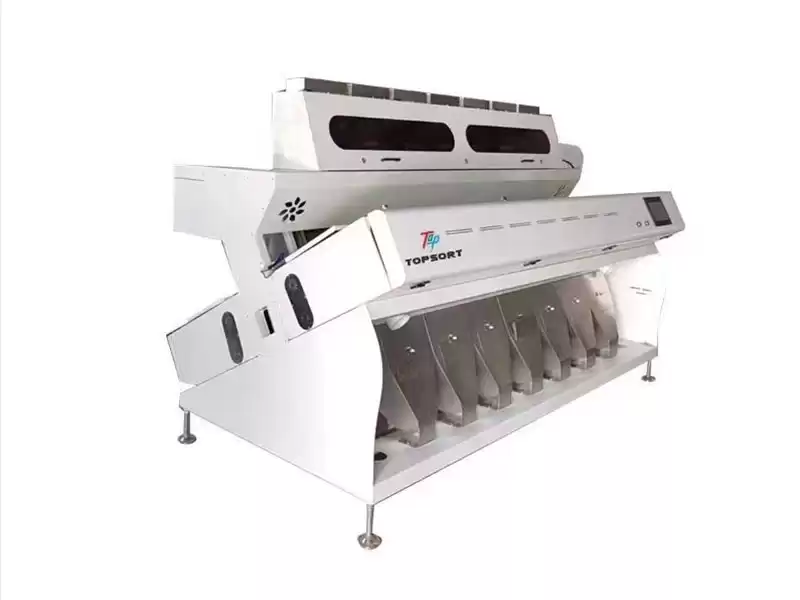

7 chutes Rice Color Sorter Machine Features
1.Automated sorting process: The machine can automatically sort out the grains based on their color, size, shape, and other characteristics.
2.High accuracy: The machine is able to accurately identify and separate grains with a high degree of accuracy.
3.Multi-grain sorting: The machine can sort multiple types of grains, such as rice, wheat, barley, and maize.
4.Low maintenance: The machine requires minimal maintenance and is easy to operate.
5.Customizable settings: The user can customize the settings to suit their needs and preferences.
6.High speed sorting: The machine can sort large amounts of grain quickly and efficiently.
7.User friendly interface: The user interface is designed for easy operation and navigation.
7 Chutes Rice Color Sorter Machine Technical Parameters
| Model |
R7-448 |
| Channles |
448 |
| Power |
4.1kw |
| Weight |
1200kgs |
| Dimensions |
2994*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
5000-7000kg/h |
| Air consumption |
<6.0m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Rice Sorting Sulotions

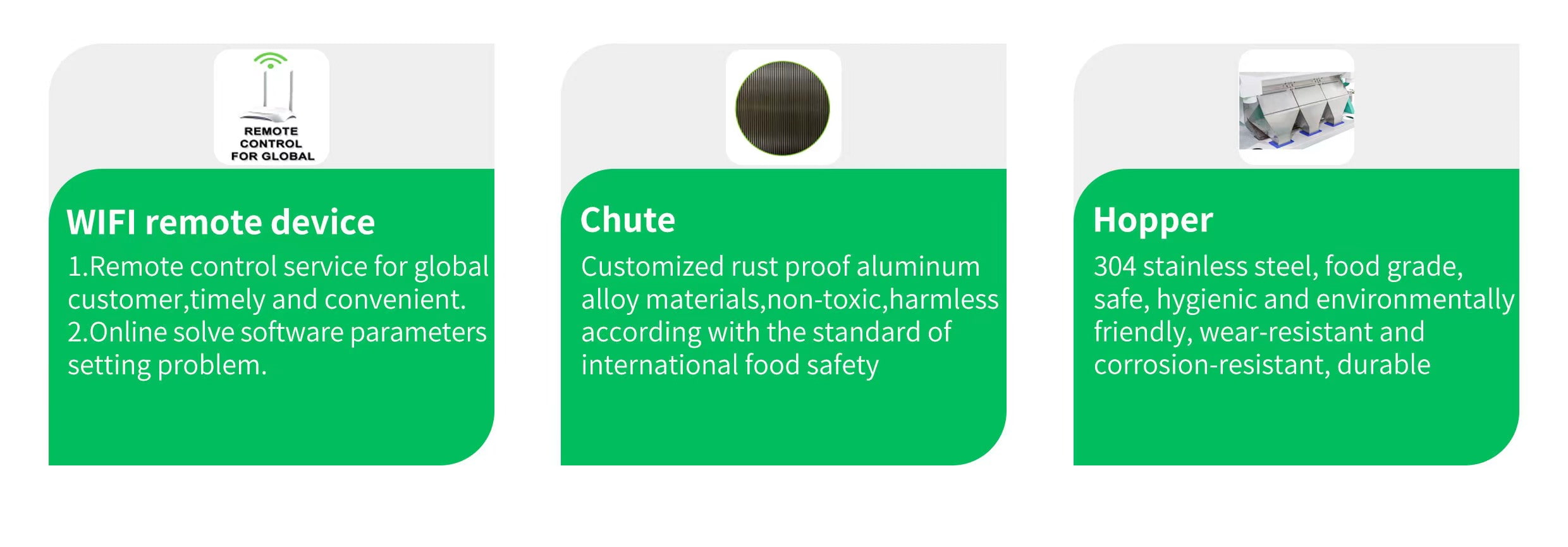

Our Color Sorter Machine Core Advantages
Sucessful Cases
Why Choose TOPSORT Color Sorter

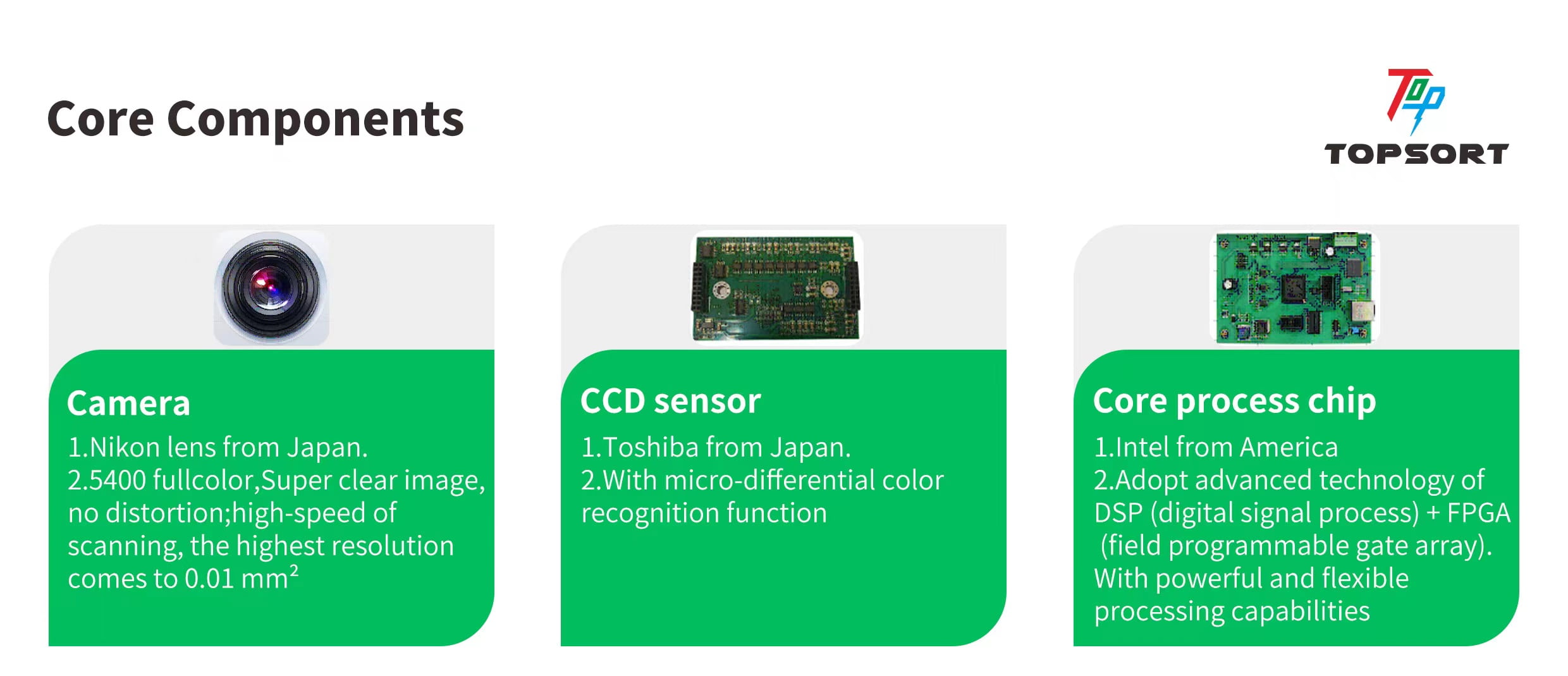

Top technology
Adopt high-speed FPGA digital image processing technology, faster detection speed, higher recognition rate and high sorting accuracy.we have CCD color sorter and infrared color sorter for different sorting requests.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

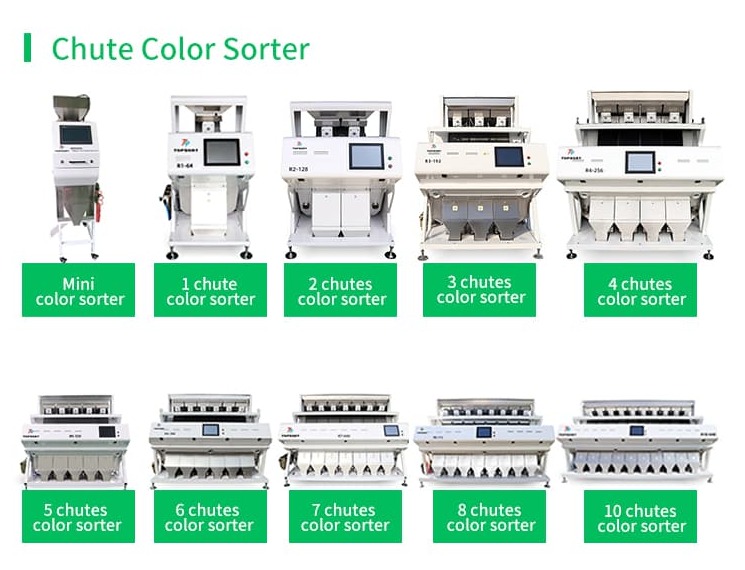

More models you can choose
Technical Parameters
| MODEL |
POWER |
VOLTAGE |
AIR PRESSURE |
AIR CONSUMPTION |
DIMENSIONS (MM) |
WEIGHT (KGS) |
| MINI-32 |
0.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜0.5m³/min |
420*1100*1820 |
100 |
| R1-64 |
0.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
880*1504*1760 |
300 |
| R2-128 |
1.3KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
1314*1504*1760 |
400 |
| R3-192 |
1.9KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜3.0m³/min |
1650*1504*1760 |
500 |
| R4-256 |
2.4KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
1986*1504*1760 |
650 |
| R5-320 |
3.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.0m³/min |
2322*1504*1760 |
800 |
| R6-384 |
3.6KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.5m³/min |
2658*1504*1760 |
1000 |
| R7-448 |
4.1KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.0m³/min |
2994*1504*1760 |
1200 |
| R8-512 |
4.7KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
3330*1504*1760 |
1400 |
| R10-640 |
5.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜8.0m³/min |
3666*1504*1760 |
1800 |
Note:Capacity upon material type,impurity rate,so it needs to determine according to the actual sorting materials.
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
