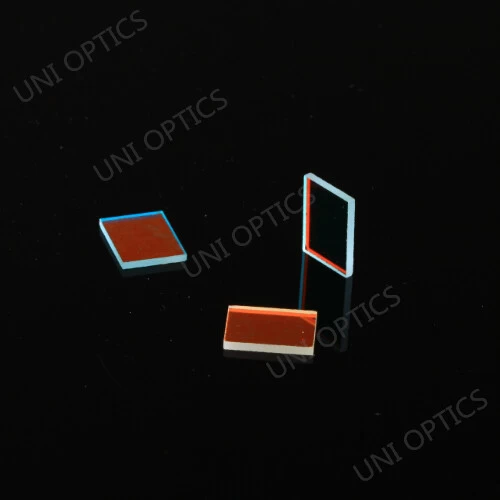

High Precision Colored Glass Filters

Colored glass filters are optical components that control incident wavelength by distributing an optical absorbing substance in glass.



Uni Optics’s colour glass filters are manufactured by injecting coloured dye into a glass substrate.



1、How do optical filters work?


Optical filters are passive devices that allow the transmission of a specific wavelength or set of wavelengths of light. Absorptive filters have a coating of different organic and inorganic materials that absorb certain wavelengths of light, thus allowing the desired wavelengths to pass through.



2、What is the central wavelength of a red filter?


Recall that the visible wavelength ranges are: 430 to 490 nm = blue; 490 to 530 nm = green; 530 to 580 nm = yellow; 580 to 630 nm = orange and 630 to 700 nm = red.



Common specification

Material: color glass
Bevel:<0.25mm X 45°
Coating: Optional (Uncoated, AR Coating, etc.)



Standard

High Precision

Dimension Tolerance

+0.0/-0.2

+0.0/-0.02

Thickness Tolerance

±0.2

±0.05

Surface quality:

60-40

20-10

Clear Aperture

>85%

>95%

Flatness(per 25mm@633nm)

λ /2

λ /8

Parallelism

3 min

10 sec
