New designing high precision current transformer from
Hefei Mycoil Technology Co., LTD. High quality and factory price, all current
transformer materials are environmental protected, we accept small order, we
can make tooling to meet customer's different specifications.
Quick Details
|

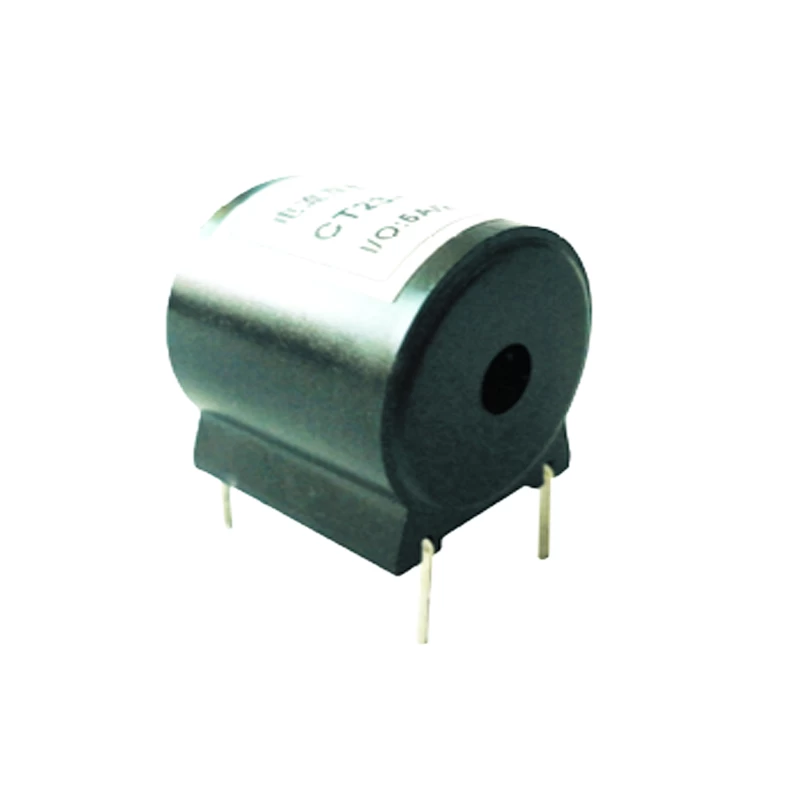

Part No: MCT23A05 Precision Current Transformer
|
|
Brand name:
MCT
|
|
Operating
temperature：-40°C~50°C
|
|
Custom made:
Available
|
|
Storage
temperature:-40°C~70°C
|
|
Logo: Can be
customized
|
|
Relative
humidity:10~95%
|
|
Packing:
Carton, can custom
|
|
Rated input
current:5A
|
|
MOQ: Any
quantity
|
|
Certification:
ISO9001,ROHS,CE
|
|
OEM:
Available
|
|
Lead time:
25 days after payment
|
|
Shipping:
Air, Ship, etc
|
Part Information
Product Name: High Precision Current Transformers for
Power Supply
Products Range:
Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay
protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner
packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for
standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be
finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected
and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT23A05
|
5A/50mA
|
0.1
|
0~10A
|
≤5’
|
≤10Ω
|
3000V
|
Φ4
|

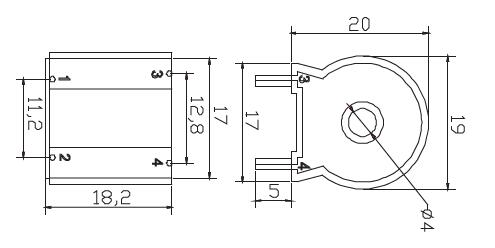

Dimension：mm
Notification
Power supply is needed when operational amplifier is added
to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the
circuit must be over 50PPM.
Welcome customized type requirements.
