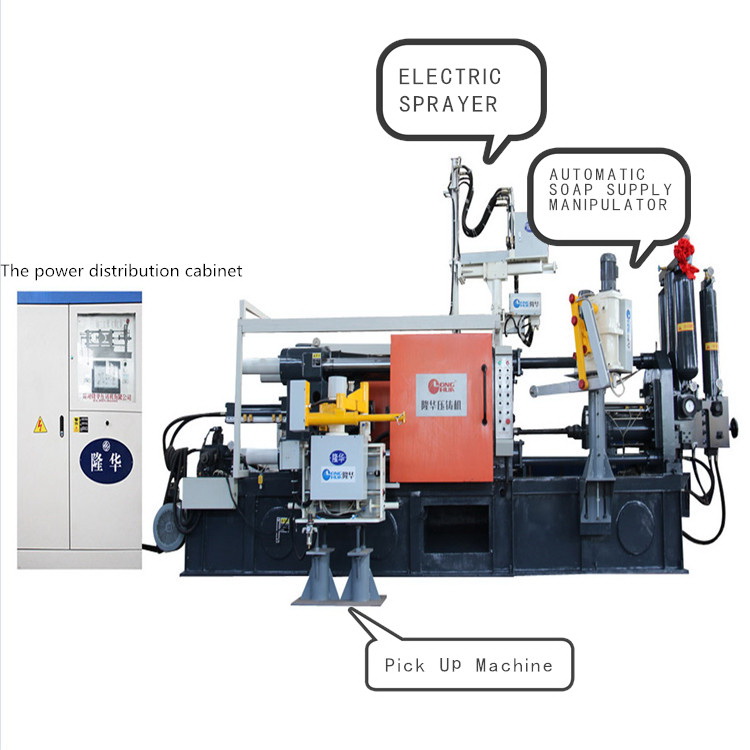

High Precision die casting machine to make keys for cars(LH-220T)
Product Description
Electric central lubrication system provides scheduled, quantitative lubrication and improves die casting machine service life.
LH SERIES OF STANDARD PARAMETER TABLE (LH-220T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
2200
|
|
SPACE BETWEEN TIE BARS
|
MM
|
510*510
|
|
TIE BAR DIAMETER
|
MM
|
￠90
|
|
DIE OPENING STROKE
|
MM
|
400
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
270
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
140
|
|
INJECTION POSITION
|
MM
|
0 -- 140
|
|
PLUNGER DIAMETER
|
MM
|
￠50----￠70
|
|
INJECTION STROKE
|
MM
|
345
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
112/78/57
|
|
CASTING FIANGE PROTRUSION
|
MM
|
10
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
160-679
|
|
LNJECTION WEIGHT(AL)
|
KG
|
3
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
220～600
|
|
EJECTOR FORCE
|
KN
|
120
|
|
EJECTOR STROKE
|
MM
|
90
|
|
MOTOR CAPACITY
|
KW
|
15
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
5.6*1.6*2.4
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
8.2
|
|
OIL TANK CAPACITY
|
L
|
680
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE

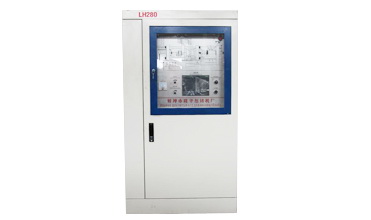

Distribution Cabinet
-
The die casting machine is equipped with special distribution cabinet,the internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
-
Large LCD display, Chinese, English, Russian, Portuguese and other languages conversion.
-
Powerful memory function, can store mold forming data, such as time, parameters, speed, pressure, stroke, mold thickness, selection conditions, etc.
-
With the function of hardware fault self-check and alarm and the function of mechanical fault alarm display, it is convenient to eliminate the machine fault.

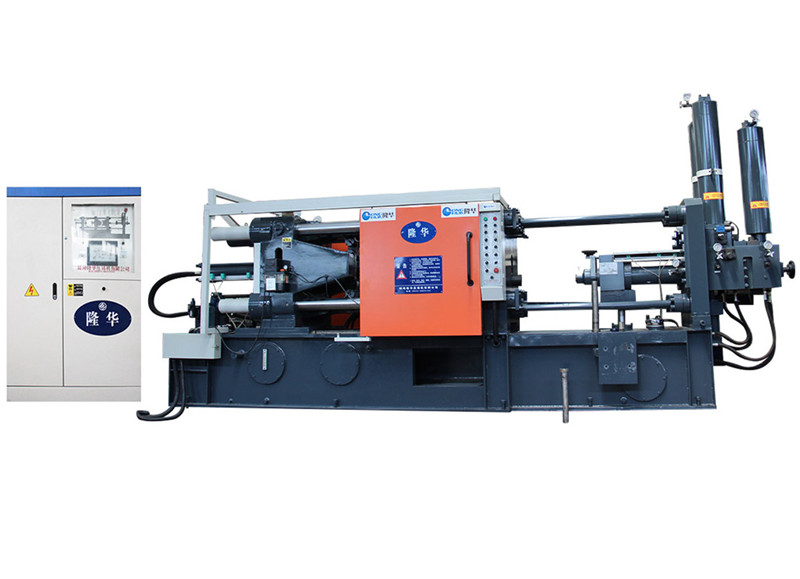

Longhua Die Casting Machine with distribution cabinet.
