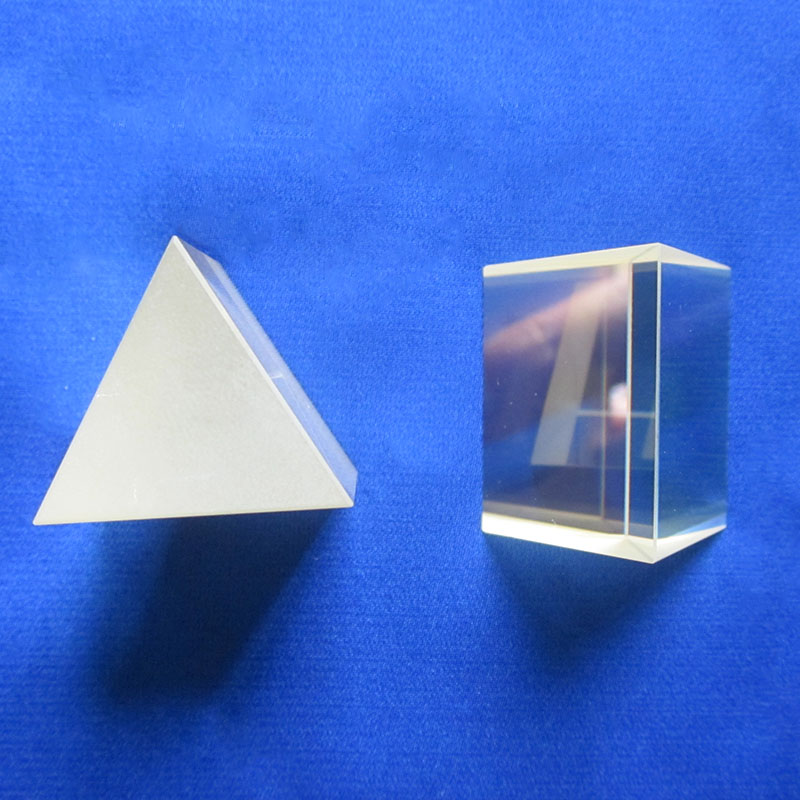

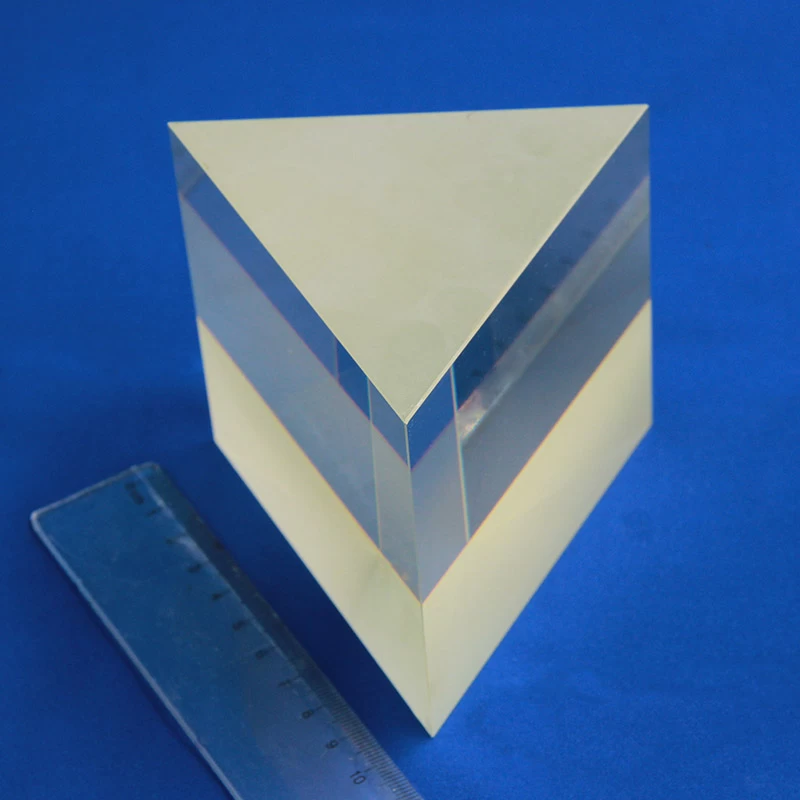

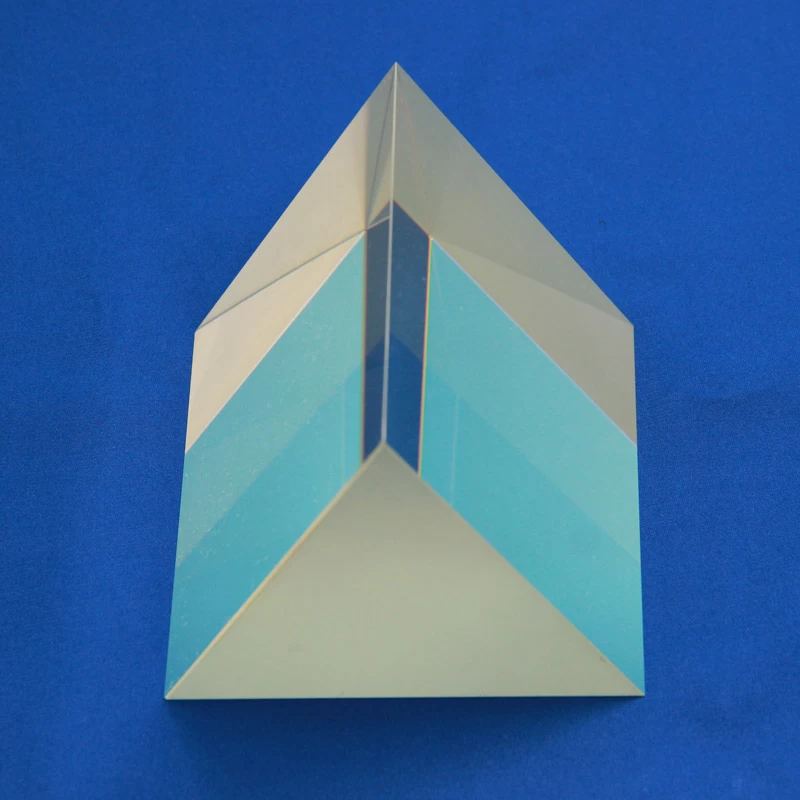

High Precision Glass Equilateral Prisms and Dispersing Prisms
Equilateral Prism has three equal 60°angles, and are mostly used to disperse the spectrum.
|
Specifications:
|
|
|
Material:
|
N-SF11, F2 etc.
|
|
Dimension Tolerance:
|
+0.1, -0.1mm
|
|
Surface quality:
|
60-40 S/D
|
|
Surface flatness:
|
Lambda/2 @ 632.8nm
|
|
Angle Tolerance:
|
+/-3 arc min
|
|
Clear Aperture:
|
>85% of dimension
|
|
Bevel:
|
<0.25mmx45°
|
|
Coating:
|
AR coating or Upon requirement
|
|

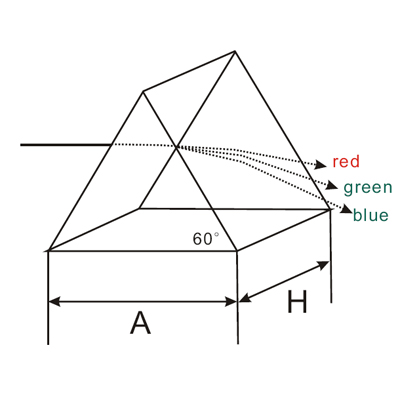

Typical Sizes:
|
|
|
|
A=B=C(mm)
|
H(mm)
|
θ
|
|
15
|
15
|
60°
|
|
25.4
|
25.4
|
60°
|
|
30
|
30
|
60°
|
|
38.1
|
38.1
|
60°
|
Different Shape, Size, Material, Coating are available.
