Product features:
1. The open base is adopted, the tooth surface is easy to maintain and the cost of the whole machine is reduced.
2. Using special machine tools to produce hourglass worm, multi tooth contact, transfer larger torque, and be able to bear larger axial force, radial force and tipping torque.
3.The design of Horizontal open type Slewing Drive adopts the general dimensions at home and abroad, and is replaced later.
Application scope:
1. The combined slewing drive is mainly used for the relative rotating parts in the field of construction machinery.This product is a relative rotating construction machinery slewing drive.
2. Aerial vehicle
3. Agricultural machinery
4. On board crane
5. Rotation of construction machinery chassis
Application advantages:
1. the surface of the product was treated by electrostatic powder spraying for two times, using epoxy zinc rich base powder and epoxy resin flour, greatly improving the corrosion resistance and aging resistance of the product, and neutral salt spray test for more than 1000 hours.This product is a electrostatic powder spraying slewing drive and netral salt spray test slewing ring.
2. The raceway of slewing bearing and gear tooth surface are hardened, with high hardness and rigidity.
3. The service life can be up to 25 years.
4. It has self-locking function, which improves the use safety.
5. The transmission accuracy can reach 1mrad.
6. The solar slew drive is developed based on the maintenance free principle, with minimal maintenance.
7. The load and overturning moment of the product is greater than that of similar products in the market.
8. The product has been tested at high and low temperature, with strong temperature resistance.
9. The service life and heat dissipation efficiency of the national high-tech graphene synthetic grease are far beyond that of ordinary grease.This product is a graphene synthetic grease slewing drive.
10. Adopt the design of hourglass worm, multi tooth contact, bearing large output torque.

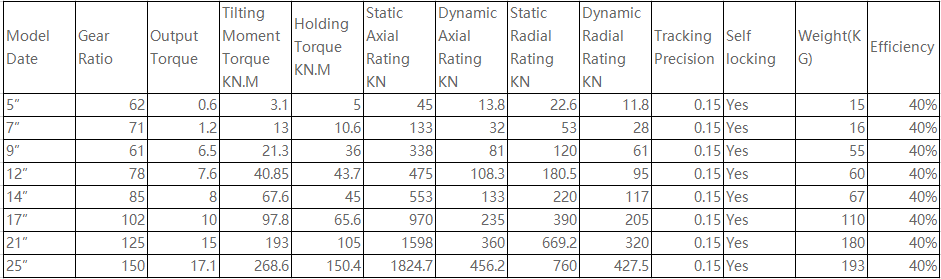

Comparison table of performance parameters:
