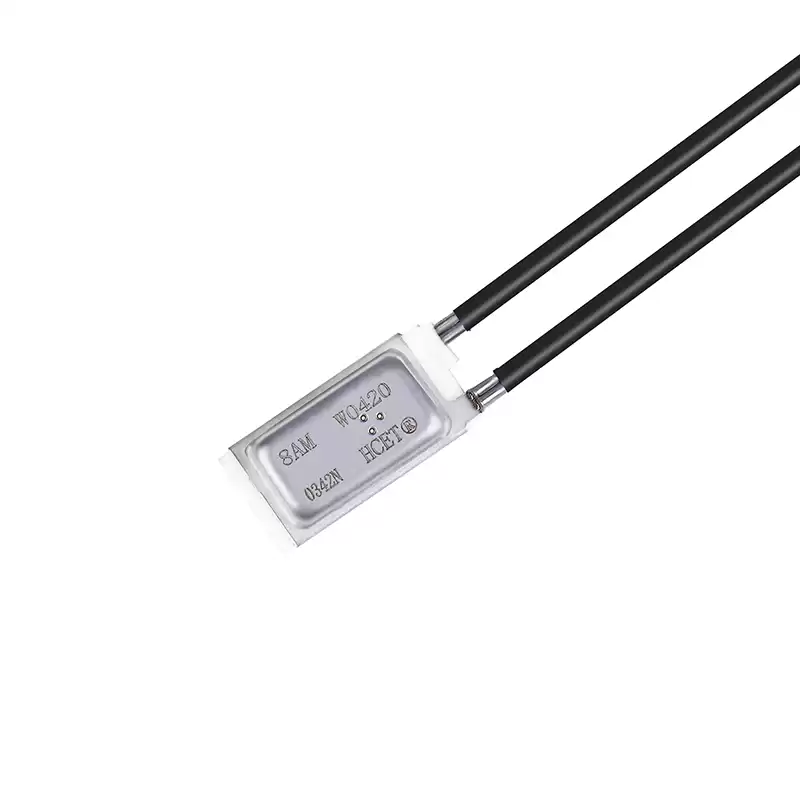

8AM motor protector for auto parts
The 8AM thermal protector can precisely control current and temperature. The current passes through the bi-metal, and when the motors and electrical appliances cannot work normally and the ambient temperature is too high, the bimetallic reed of the thermal protectors disconnect the silver contact to protect the electrical appliances. When the motor thermal protectors cool to a safe temperature, the contacts automatically close and reset.Widely used in automobile wiper motors.
Features
Large electrical capacity, long life and high reliability.
Compact and easy to install.
Individually temperature calibrated and checked.
Accurate trip off time can prevent motor from overheating.
Both temperature and current sensitive.
Terminals are optional and customized.
Specifications
|
Item No.
|
HC18/8AM
|
|
Electrical specifications
|
125VAC/250VAC:15A-60A
|
|
12VDC/24VDC:15A-60A
|
|
Operating temperature range
|
80°C~180°C
|
|
Temperature Tolerance
|
±5°C, ±8°C
|
|
Trip off current range
|
15-60A
|
|
Trip time at T-ambient 25°C
|
4-10s
|
|
Case material
|
Metal
|
|
Case size(mm)
|
36.5*16.2*10.2
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

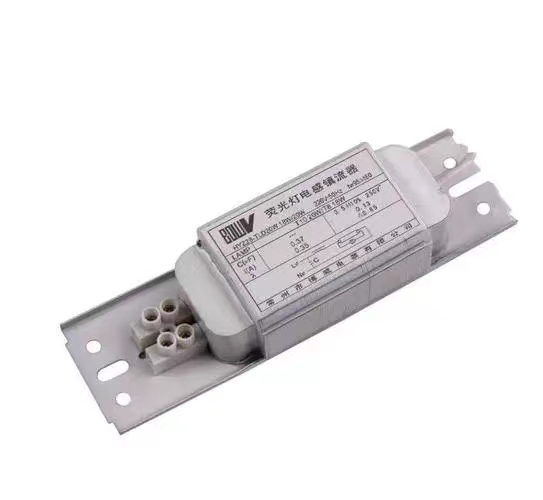

| Ballasts |

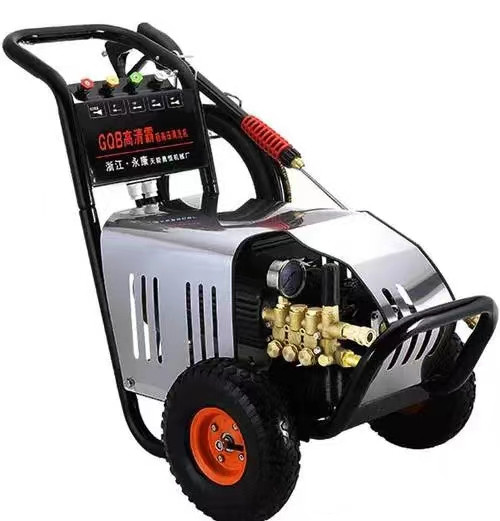

Pressure washers |

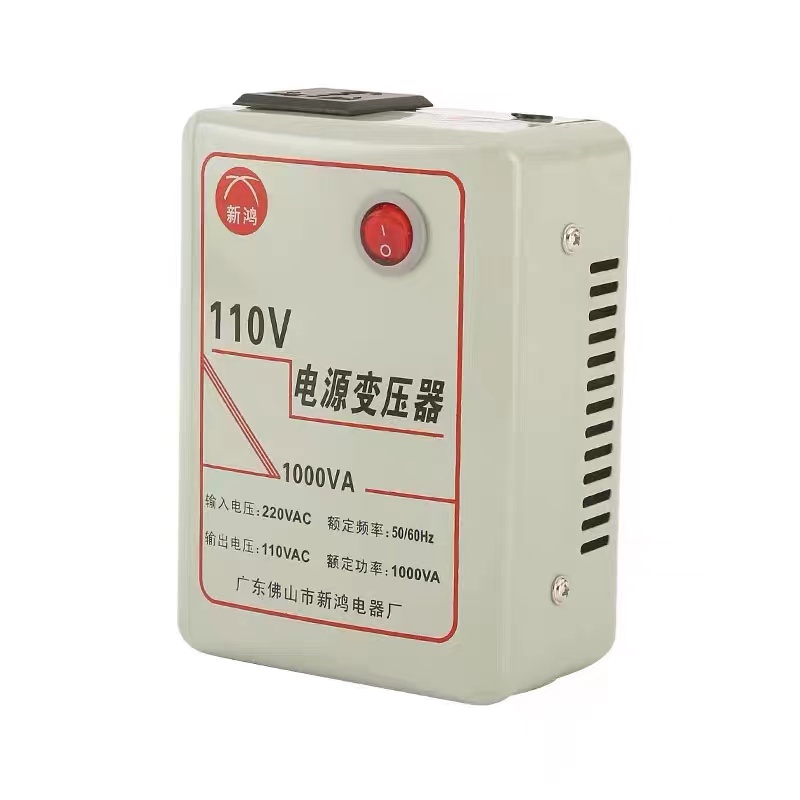

Transformers |

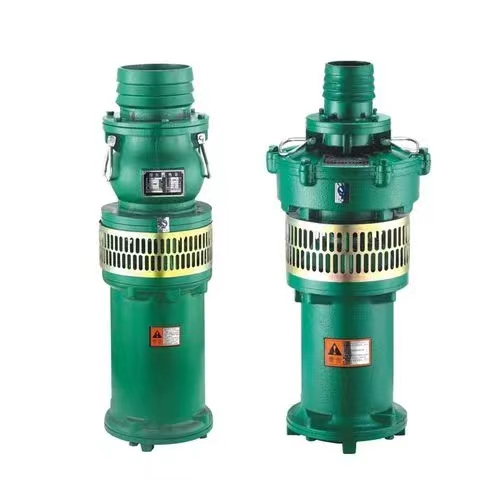

Submersible pumps |
 |
 |
 |
 |
| Vacuum cleaners |

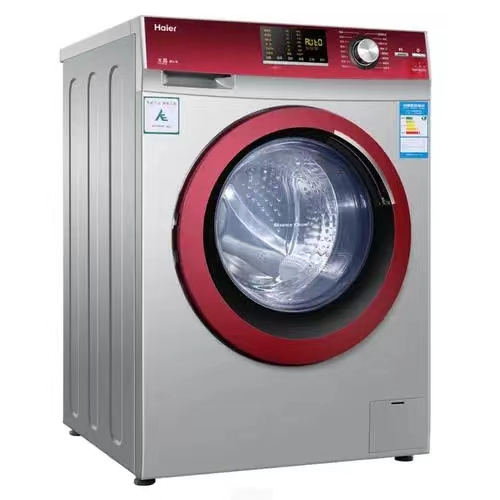

Washing machines |

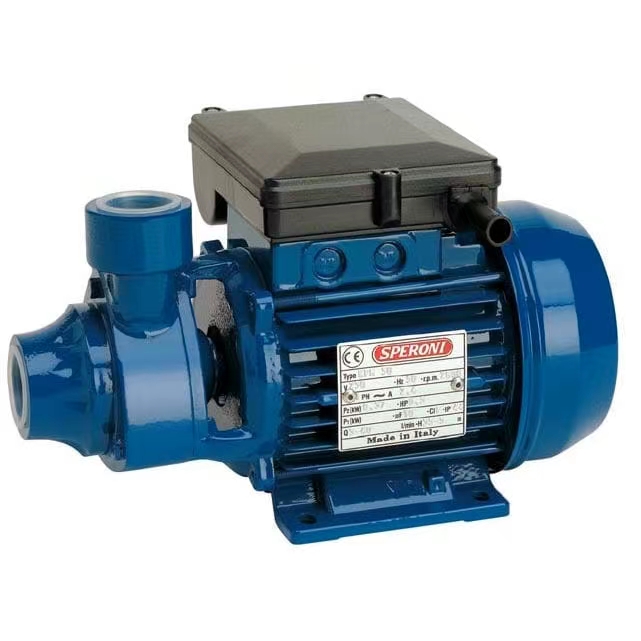

Water pumps |
Electric tools |

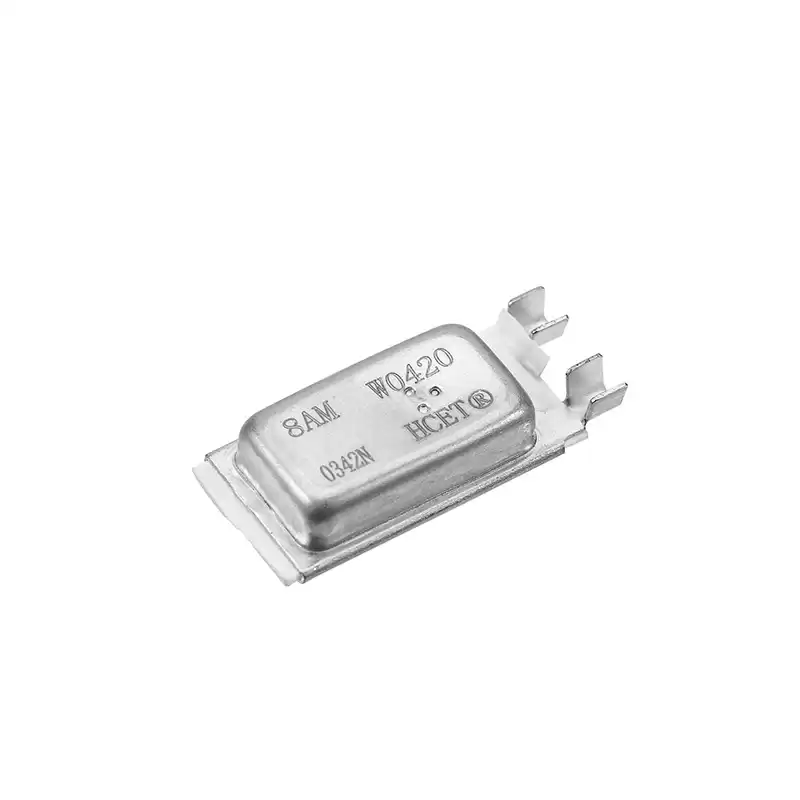

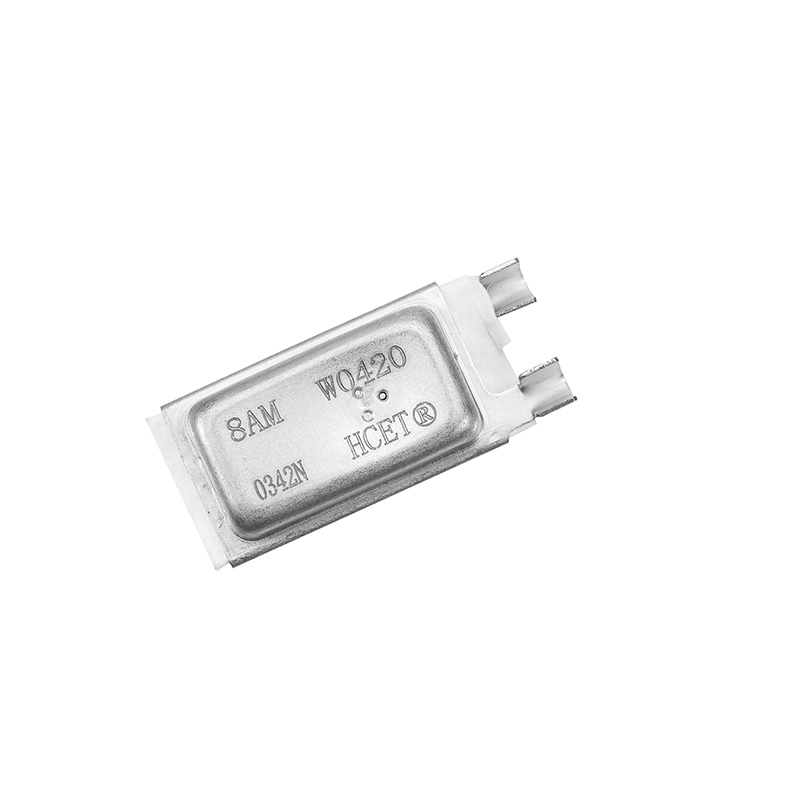

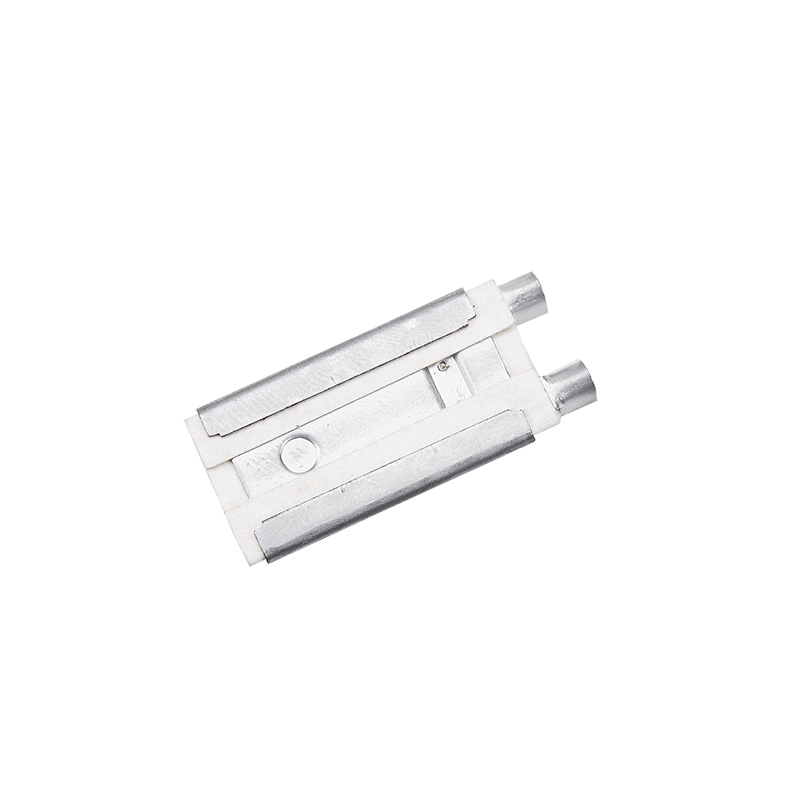

Product display

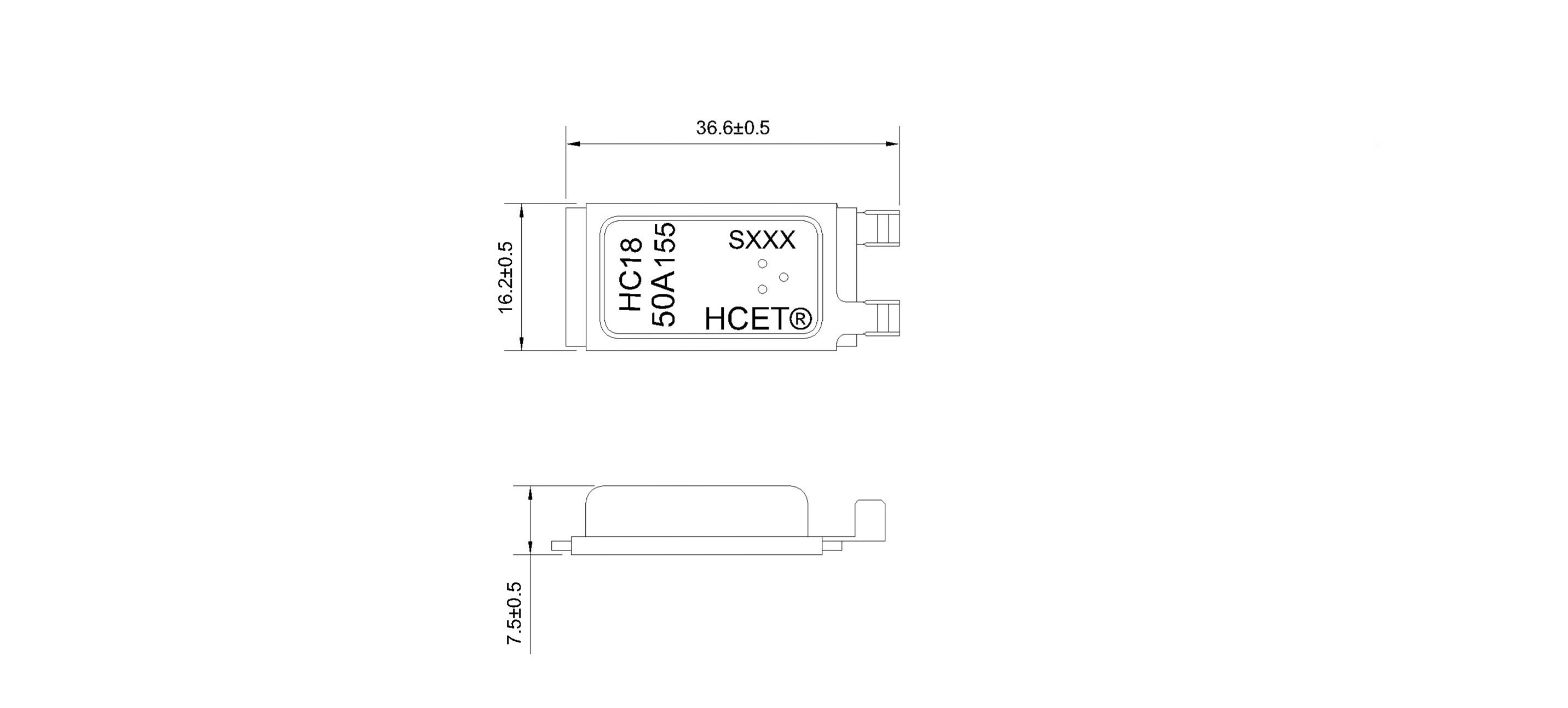

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
FAQ
Q:Are you a product supplier or a factory?
A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.
Q:How can I get a free sample?
A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.
Q:What is the shipping term of bimetal thermal protector?
A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.
Q:What parameters should I provide when I want to buy a thermal protector?
A:If you want to buy a thermal protector, please prepare these parameters:
1. Rated voltage, rated current.
2. Operating temperature and rest temperature of thermal protectors.
3. Length of lead wire, color, type and temperature resistance.
4. Application of thermal protector.
5. Mounting requirements if needed, including dimensional requirements.
