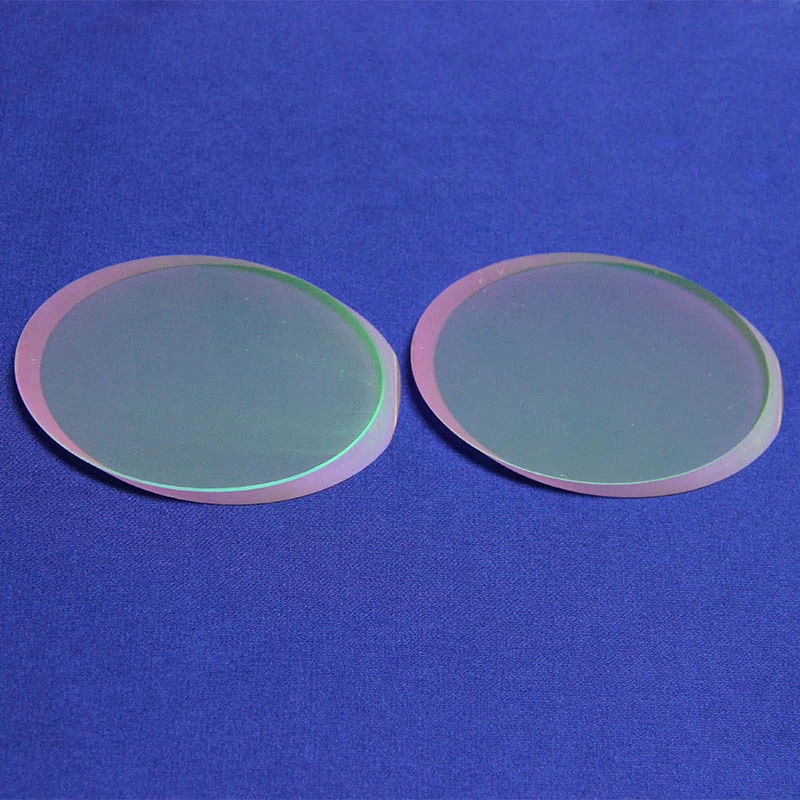

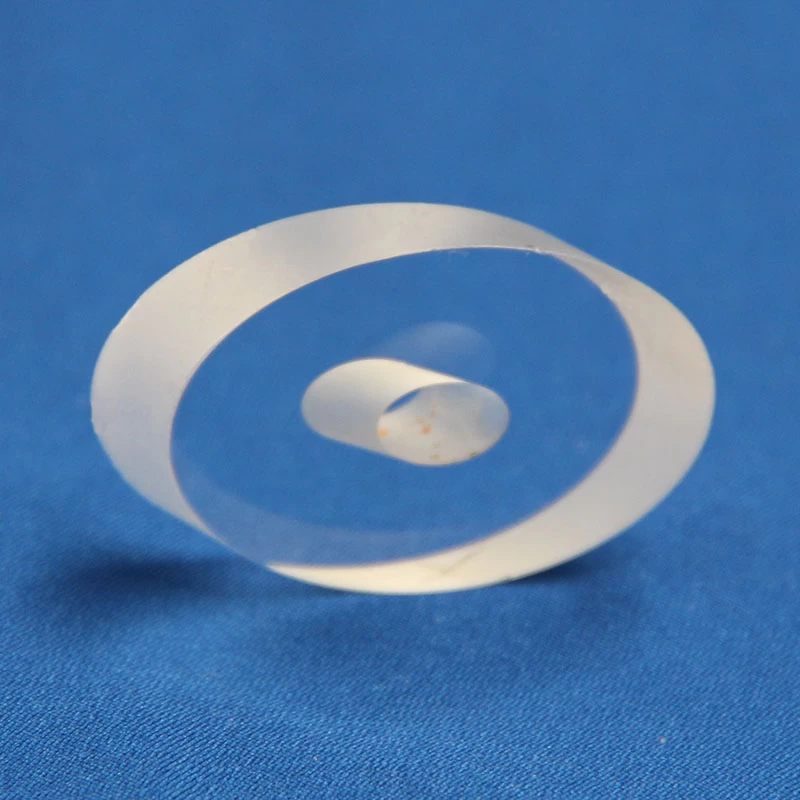

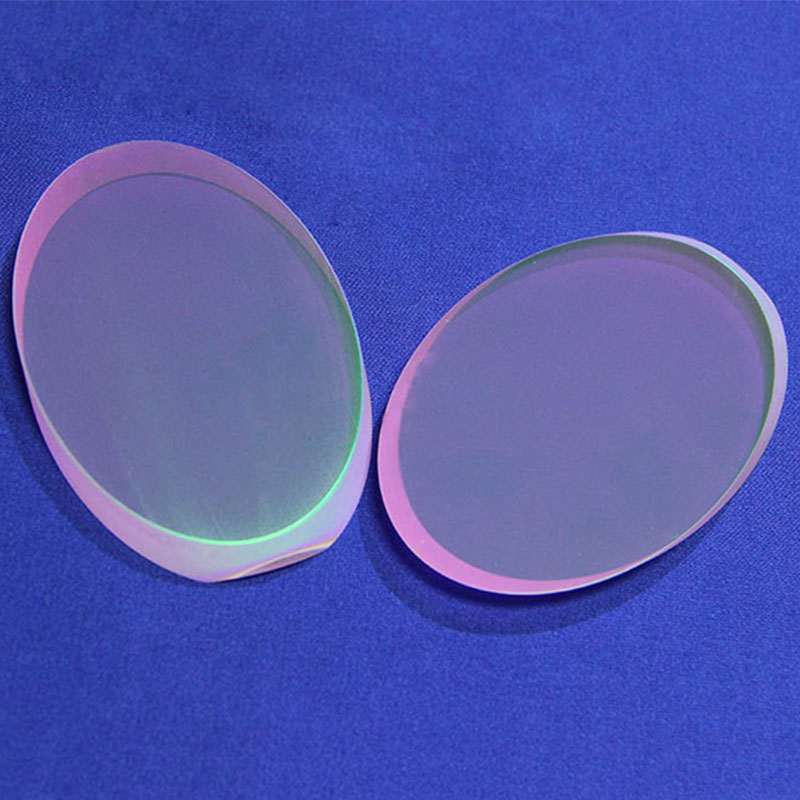

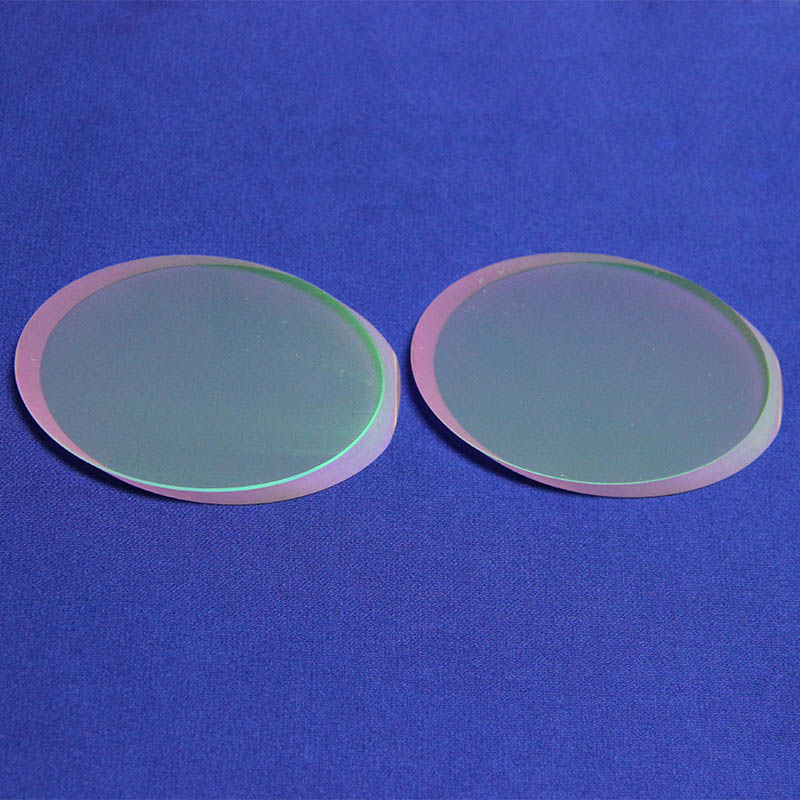

High Precision Optical Brewster Windows
Brewster Windows are uncoated substrates which designed to present a circular profile when oriented at Brewster’s angle (55.57°). Brewster windows are manufactured from UV fused silica, which exhibits virtually no laser-induced fluorescence. These windows minimize the loss of P-polarized light, ideal for use within laser cavities and for producing linearly polarized light.
Great for Use in Laser Cavities
Circular Profile When Oriented at 55.57°
Uncoated UV Fused Silica Brewster Windows
Brewster Windows Specification:
|
Material:
|
UV grade Fused Silica
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
± 0.1mm
|
|
Surface quality:
|
60/40(Standard), 10/5(High Precision)
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ(Standard), λ/10(High Precision) per 25mm@633nm
|
|
Parallelism:
|
1' (Standard), 10" (High Precision)
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Upon requirement
|
Typtical Size
|
Round Shape
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
|
|
Diameter(mm):
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness Tolerance:
|
0.5; 1.0; 1.5; 2.0; 3.0;
|
|
|
4.0; 5.0; 6.0; 8.0; 10.0
|
How to order Windows?
Example:
Material:N-BK7
Diameter:Φ25.4+0.0/-0.1mm
Thickness:1.0±0.1mm
Surface quality: 60-40 S/D
Flatness: λ/2 per 25mm @633nm
Paralelism: <1 arc minute
Coating:Both side AR,R<0.25% @1064nm, AOI=0°
