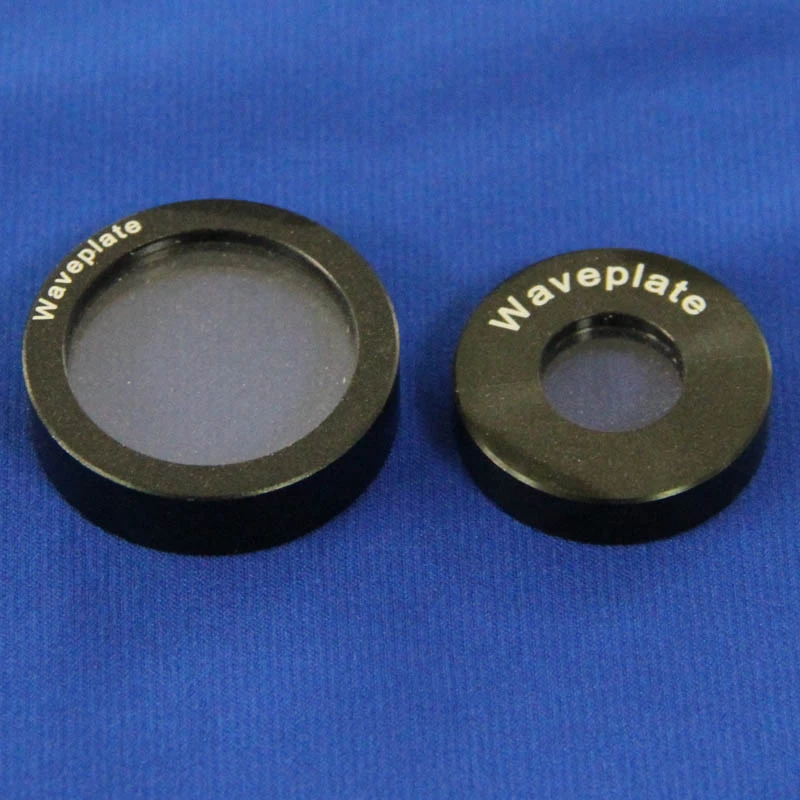

High Precision Zero Order Waveplates
Zero order waveplates are constructed of two multiple order waveplates with their axes crossed, thus the effect of the first plate is cancelled by the second, except for the residual difference between them. The two multiple order waveplates can be glued together or optically contact.
Zero order waveplates are much less susceptible to wavelength changes, can be up to 2% above or below the design wavelength with little effect on retardation. The waveplates should be considered for more critical application.
Damage threshold is about 100MW/cm2.
There are three contact way.

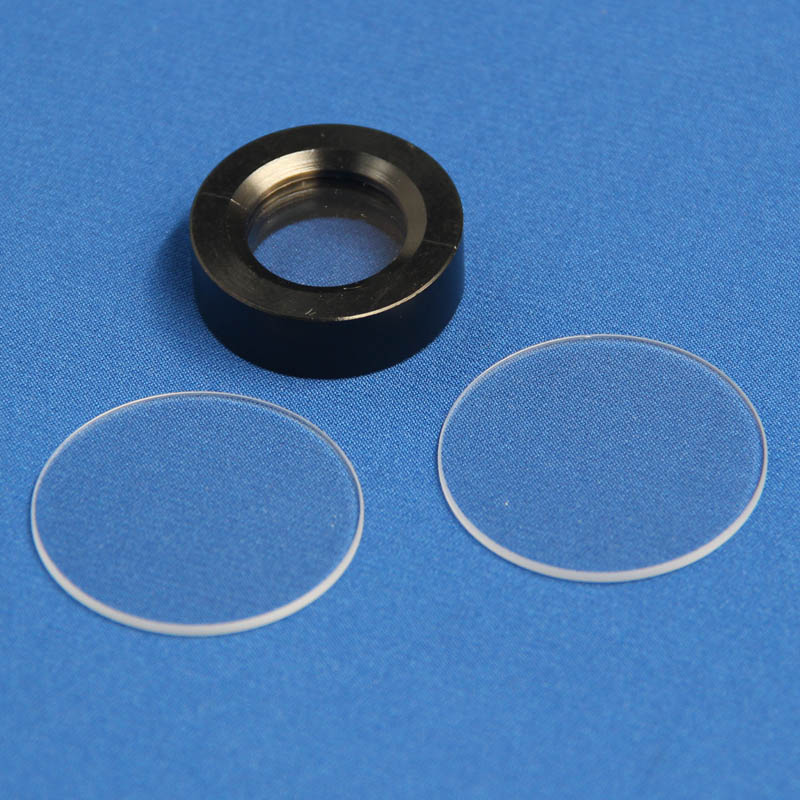

1. Cemented by Epoxy (AR Coated, R<0.2%, Better Temperature Bandwidth
2. Optical Contacted (AR Coated,R<0.2%, High Damage Threshold, Better Temperature )

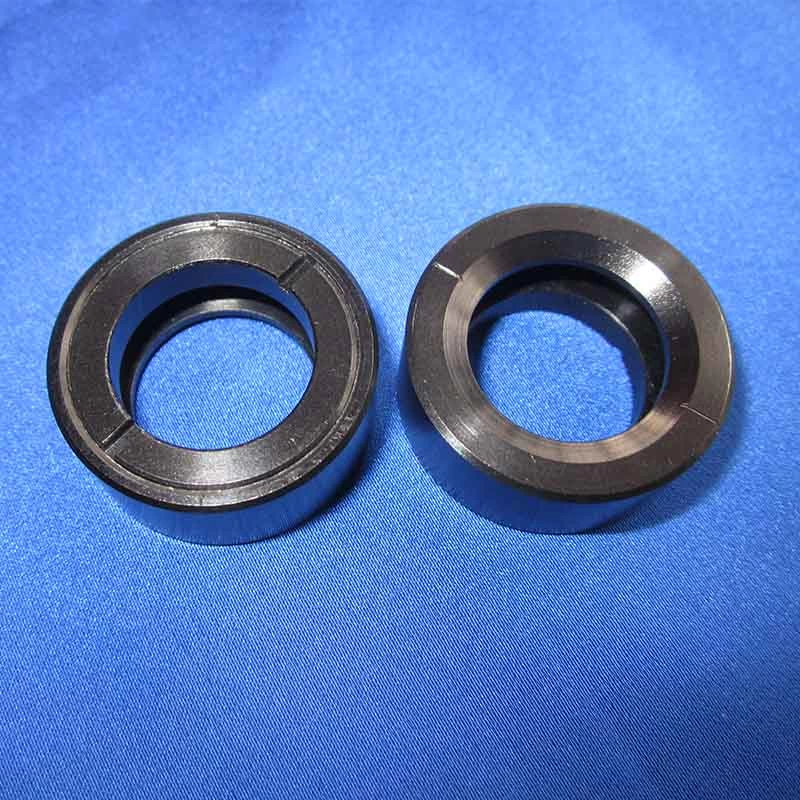

3. Air-spaced (AR Coated,R<0.2% and Mounted, High Damage Threshold, Broad Temperature Bandwidth)
|
Specifications:
|
|
|
Type:
|
Half Waveplates Quarter Waveplates
|
|
Material:
|
Crystal Quartz
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Surface quality:
|
20-10
|
|
Clear Aperture:
|
>90%
|
|
Wavefront Distortion:
|
λ/8@632.8nm
|
|
Parallelism:
|
2 arc sec
|
|
Retardation tolerance:
|
λ/100, λ/200, λ/300, λ/400, λ/500 for different wavelength
|
|
Coating:
|
AR/AR coating ,R<0.2% at central wavelength
|
|
Standard wavelengt:
|
266nm, 355nm,532nm, 632.8nm, 780nm,808nm,
|
|
|
850nm, 980nm,1064nm, 1310nm, 1480nm, 1550nm
|
|
Typical Sizes:
|
|
|
Size(mm)
|
Size(mm)
|
|
Φ 5.0
|
Φ20.0
|
|
Φ10.0
|
Φ25.4
|
|
Φ12.7
|
Φ30.0
|
|
Φ15.0
|
Φ38.1
|
