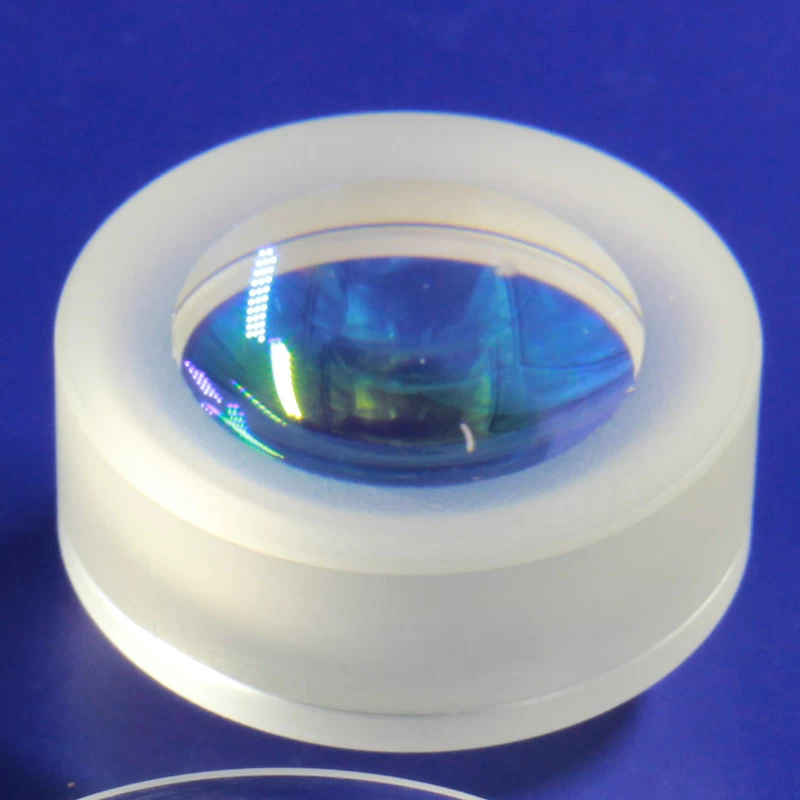

High Presion Double Concave Lenses and Bi-concave Lenses
Double Concave Lenses, Bi-Concave Lenses is like the Plano-Concave lenses in that they are used to produce divergent light. The Bi-Concave is best used when the input beam is converging.
1. Supported by the Zemax Optical Design Package
2. Negative Focal Length
3. Material upon requirement
WTS offer customize Double Concave Lenses products.
Material:
|
Optical glass, BK7, Fused Silica, Schott, OHARA, CaF2,Germanium etc.
|
Dimension Tolerance:
|
±0.1mm(Standard), ±0.01mm(High Precision)
|
Center Thickness Tolerance:
|
±0.1mm(Standard), ±0.02mm(High Precision)
|
Paraxial Focal Length:
|
±2%
|
Surface quality:
|
60/40(Standard), 20/10(High Precision)
|
Clear Aperture:
|
>85%
|
Surface Figure:
|
λ/2(Standard), λ/8(High Precision) @633nm
|
Centration:
|
3 arc minutes
|
Bevel:
|
<0.25mm×45°
|
Coating:
|
Upon requirement
|
|

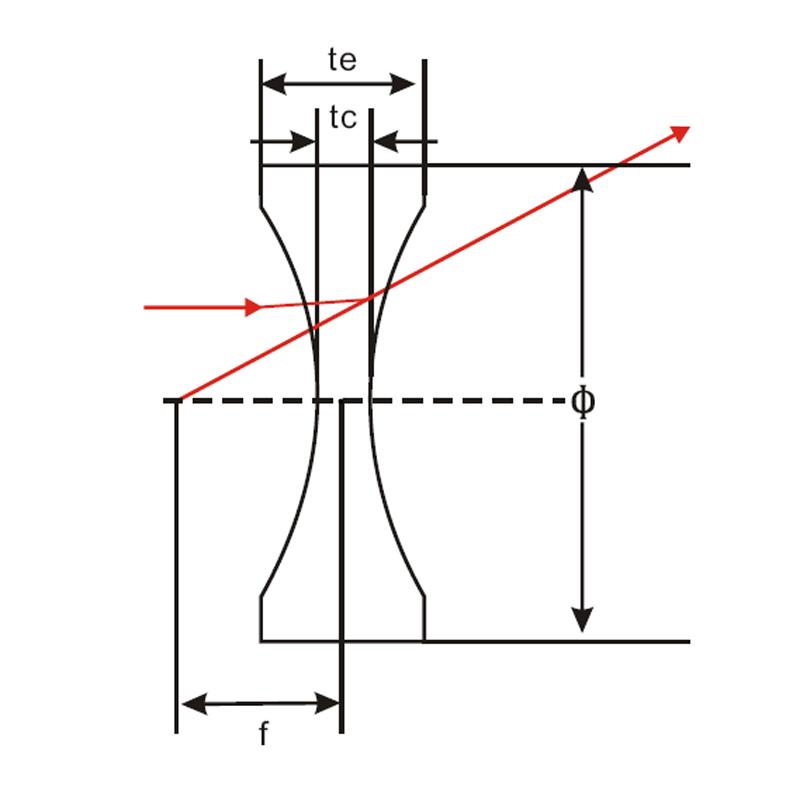

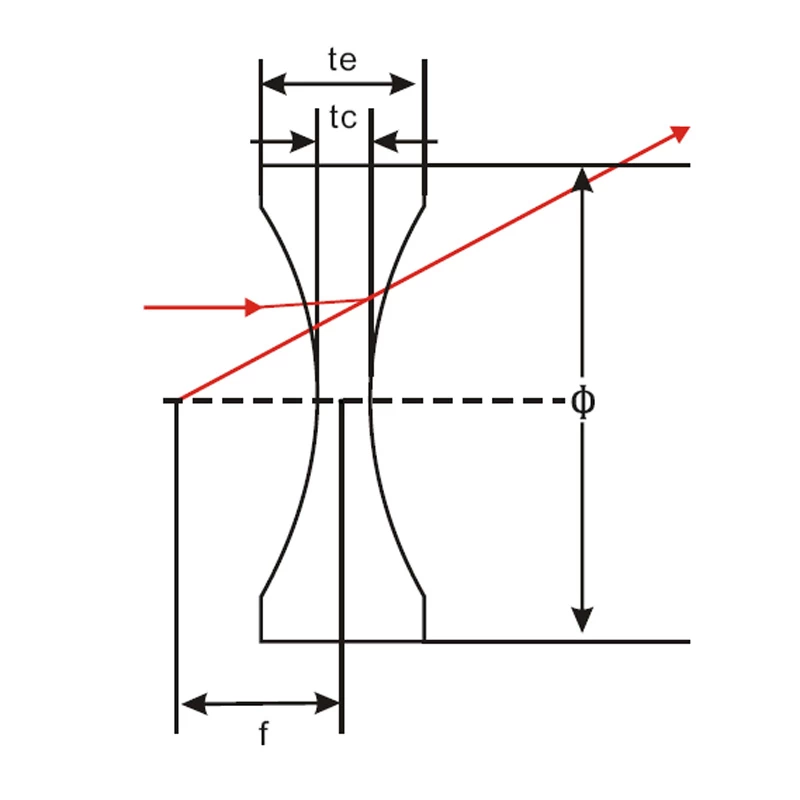

Typical Sizes
|
|
|
|
|
|
|
|
ItemNo.
|
Diameter(mm)
|
f(mm)
|
R2=R2(mm)
|
Tc(mm)
|
Te(mm)
|
Fb(mm)
|
|
Material
|
N-BK7
|
|
BICV001
|
6
|
-15
|
15.2
|
2.1
|
1.5
|
14.3
|
|
BICV002
|
6
|
-30
|
30.83
|
1.79
|
1.5
|
29.42
|
|
BICV101
|
12.7
|
-15
|
14.65
|
4.89
|
2
|
13.27
|
|
BICV102
|
12.7
|
-20
|
20.04
|
4.07
|
2
|
18.62
|
|
BICV103
|
12.7
|
-25
|
25.35
|
3.62
|
2
|
23.82
|
|
BICV104
|
12.7
|
-30
|
30.55
|
3.33
|
2
|
28.89
|
|
BICV105
|
12.7
|
-40
|
41.02
|
2.99
|
2
|
39.04
|
|
BICV106
|
12.7
|
-50
|
51.4
|
2.79
|
2
|
49.08
|
|
BICV107
|
12.7
|
-75
|
77.45
|
2.52
|
2
|
74.24
|
|
BICV108
|
12.7
|
-100
|
103.28
|
2.39
|
2
|
99.16
|
|
BICV201
|
25.4
|
-25
|
24.72
|
9.02
|
2
|
22.24
|
|
BICV202
|
25.4
|
-31.7
|
31.55
|
7.34
|
2
|
29.15
|
|
BICV203
|
25.4
|
-35
|
35.08
|
6.76
|
2
|
32.66
|
|
BICV204
|
25.4
|
-50
|
50.93
|
5.22
|
2
|
48.22
|
|
BICV205
|
25.4
|
-75
|
77.09
|
4.11
|
2
|
73.63
|
|
BICV206
|
25.4
|
-100
|
103.04
|
3.57
|
2
|
98.73
|
|
BICV207
|
25.4
|
-125
|
129.12
|
3.25
|
2
|
123.92
|
|
BICV208
|
25.4
|
-150
|
155.1
|
3.04
|
2
|
149
|
|
BICV209
|
25.4
|
-175
|
181.13
|
2.89
|
2
|
174.12
|
|
BICV210
|
25.4
|
-200
|
207
|
2.78
|
2
|
199.07
|
|
BICV211
|
25.4
|
-250
|
258.9
|
2.62
|
2
|
249.12
|
|
BICV212
|
25.4
|
-300
|
310.8
|
2.52
|
2
|
299.17
|
|
BICV213
|
25.4
|
-500
|
518.3
|
2.31
|
2
|
499.21
|
|
BICV214
|
25.4
|
-1000
|
1037.1
|
2.16
|
2
|
999.32
|
|
BICV301
|
38
|
-45
|
44.87
|
10.44
|
2
|
41.46
|
|
BICV302
|
38
|
-50
|
49.97
|
10.5
|
3
|
46.4
|
|
BICV303
|
38
|
-100
|
102.57
|
6.55
|
3
|
97.78
|
|
BICV304
|
38
|
-150
|
154.7
|
5.34
|
3
|
148.23
|
|
BICV305
|
38
|
-200
|
206.7
|
4.75
|
3
|
198.46
|
|
BICV306
|
38
|
-350
|
362.4
|
4
|
3
|
348.66
|
|
BICV307
|
38
|
-500
|
518.1
|
3.7
|
3
|
498.79
|
|
BICV308
|
38
|
-700
|
725.6
|
3.5
|
3
|
698.84
|
|
BICV401
|
40
|
-63.5
|
64.42
|
8.27
|
1.9
|
60.7
|
|
BICV501
|
50
|
-100
|
102.06
|
9.2
|
3
|
96.9
|
|
BICV502
|
50
|
-150
|
154.27
|
7.1
|
3
|
147.6
|
|
BICV503
|
50
|
-200
|
206.28
|
6
|
3
|
198
|
|
BICV504
|
50
|
-250
|
258.22
|
5.4
|
3
|
248.2
|
|
BICV505
|
50
|
-400
|
413.87
|
4.5
|
3
|
398.5
|
|
BICV506
|
50
|
-450
|
465.73
|
4.3
|
3
|
448.6
|
|
BICV507
|
50
|
-500
|
517.58
|
4.2
|
3
|
448.6
|
|
BICV508
|
50
|
-600
|
621.28
|
4
|
3
|
598.7
|
|
BICV509
|
50
|
-800
|
828.64
|
3.8
|
3
|
798.7
|
|
Material
|
Fused Silica
|
|
BICV-FS01
|
6
|
-15
|
14.03
|
1.5
|
2.15
|
15.5
|
|
BICV-FS02
|
6
|
-30
|
27.84
|
1.5
|
1.82
|
30.51
|
|
BICV-FS03
|
12.7
|
-15
|
14.11
|
2
|
5.02
|
15.67
|
|
BICV-FS04
|
12.7
|
-20
|
18.71
|
2
|
4.22
|
20.67
|
|
BICV-FS05
|
12.7
|
-25
|
23.32
|
2
|
3.76
|
25.68
|
|
BICV-FS06
|
12.7
|
-30
|
27.92
|
2
|
3.46
|
30.68
|
|
BICV-FS07
|
12.7
|
-40
|
37.12
|
2
|
3.09
|
40.68
|
|
BICV-FS08
|
25.4
|
-25
|
23.32
|
2
|
9.52
|
25.68
|
|
BICV-FS09
|
25.4
|
-35
|
32.52
|
2
|
7.17
|
35.68
|
|
BICV-FS10
|
25.4
|
-50
|
46.32
|
2
|
5.55
|
50.68
|
|
BICV-FS11
|
25.4
|
-75
|
69.33
|
2
|
4.35
|
75.69
|
|
BICV-FS12
|
25.4
|
-100
|
92.33
|
2
|
3.76
|
100.68
|
|
BICV-FS13
|
25.4
|
-150
|
138.34
|
2
|
3.17
|
150.68
|
|
BICV-FS14
|
25.4
|
-200
|
184.35
|
2
|
2.88
|
200.69
|
|
BICV-FS15
|
25.4
|
-250
|
230.36
|
2
|
2.7
|
250.69
|
|
BICV-FS16
|
25.4
|
-300
|
276.36
|
2
|
2.58
|
300.68
|
|
BICV-FS17
|
25.4
|
-500
|
460.4
|
2
|
2.35
|
500.69
|
|
BICV-FS18
|
25.4
|
-1000
|
920.48
|
2
|
2.18
|
1000.69
|
|
BICV-FS19
|
38
|
-50
|
46.48
|
3
|
11.12
|
51.02
|
|
BICV-FS20
|
38
|
-100
|
92.49
|
3
|
6.95
|
101.03
|
|
BICV-FS21
|
38
|
-150
|
138.5
|
3
|
5.62
|
151.03
|
|
BICV-FS22
|
38
|
-200
|
184.5
|
3
|
4.96
|
201.02
|
|
BICV-FS23
|
38
|
-350
|
322.53
|
3
|
4.13
|
351.03
|
|
BICV-FS24
|
38
|
-500
|
460.55
|
3
|
3.78
|
501.02
|
|
BICV-FS25
|
38
|
-750
|
690.59
|
3
|
3.52
|
751.02
|
|
BICV-FS26
|
38
|
-1000
|
920.64
|
3
|
3.39
|
1001.04
|
|
PLCX-FS27
|
38
|
300
|
138.04
|
4.31
|
3
|
297.09
|
|
PLCX-FS28
|
38
|
500
|
230.1
|
3.79
|
3
|
497.54
|
|
PLCX-FS29
|
38
|
750
|
345.1
|
3.52
|
3
|
747.68
|
|
PLCX-FS30
|
38
|
1000
|
460.1
|
3.39
|
3
|
997.73
|
