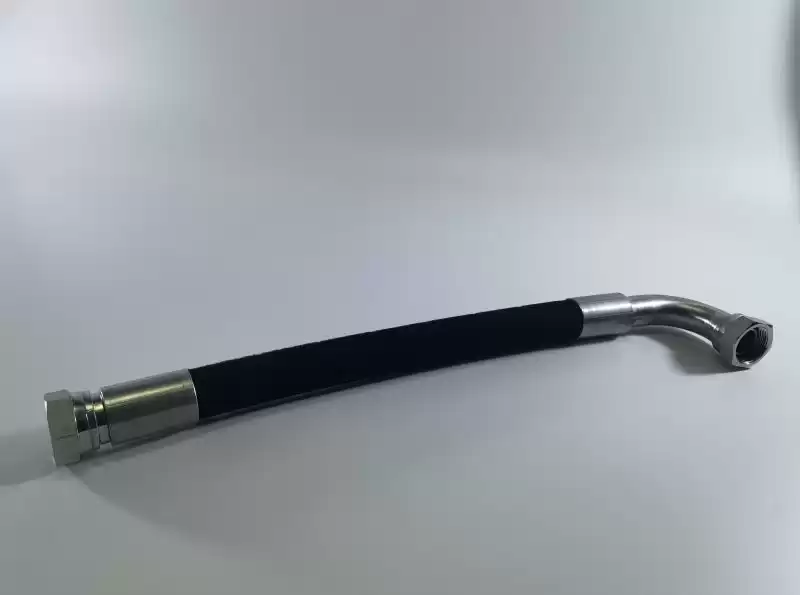

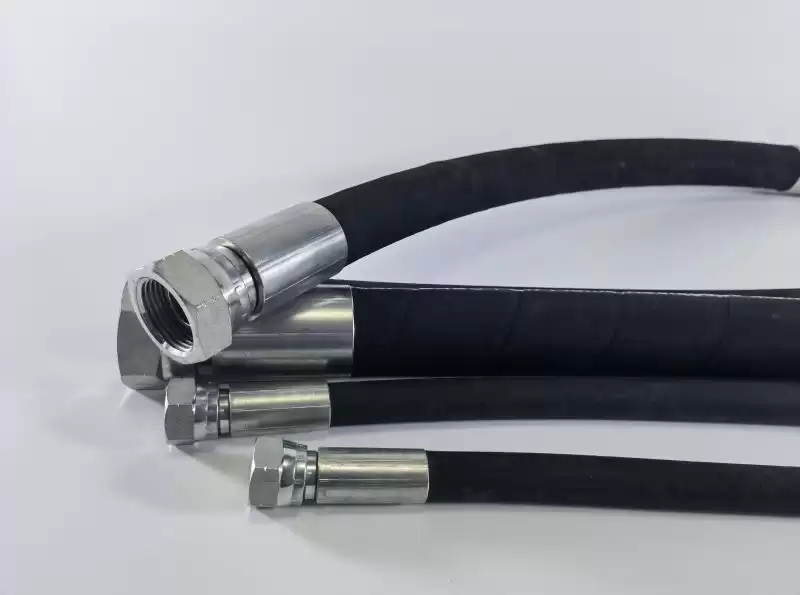

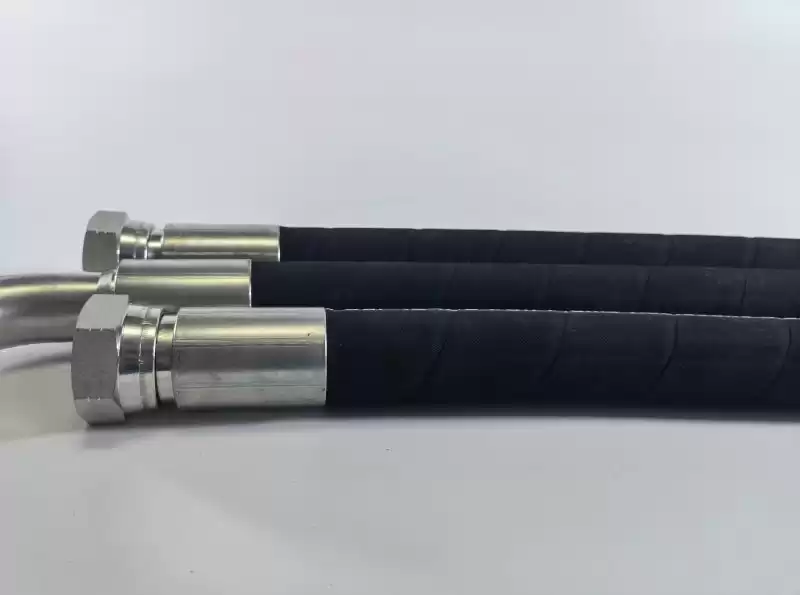

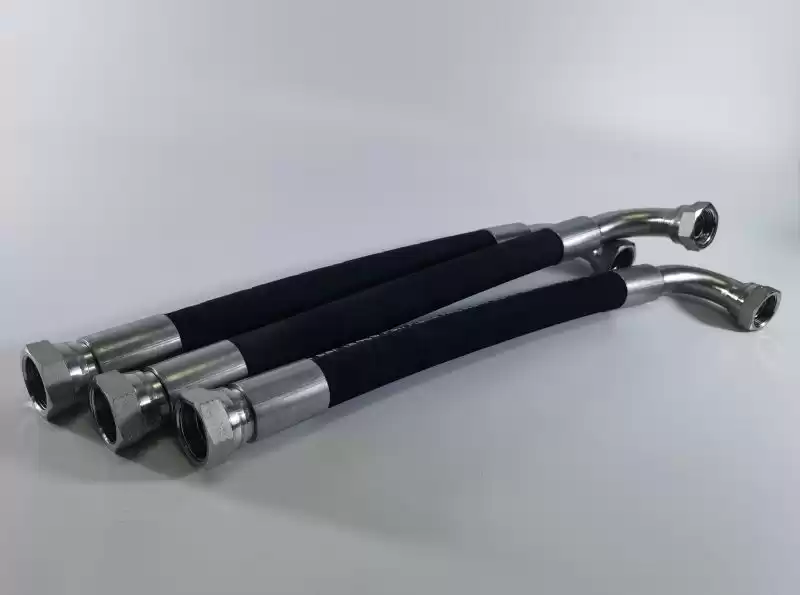

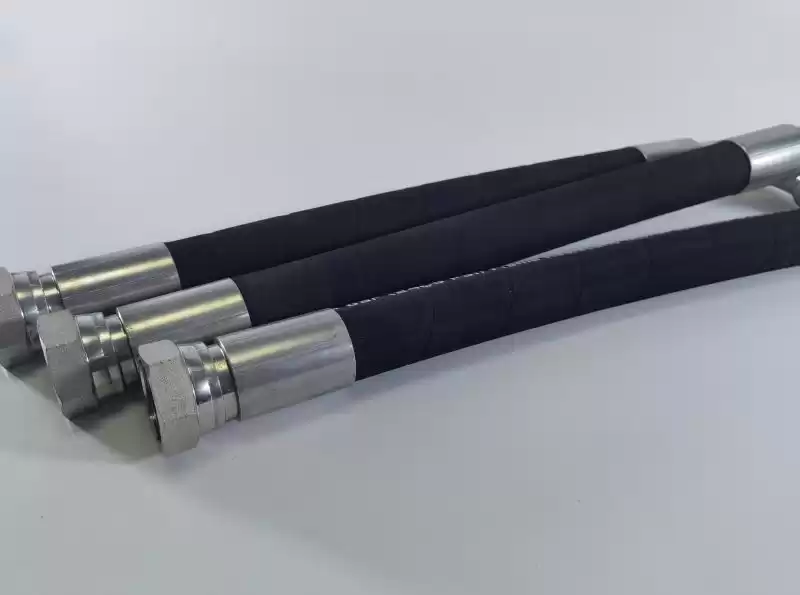

High Pressure 2SN Hydraulic Rubber Hose
Specification:
Conforming to Std. SAE – 100 R2/EN 853 2SN
Tube: Inner tube in high quality synthetic rubber compounds
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature: -40 °C to +100 °C (-40 °F to +250 °F)
High Pressure 2SN Hydraulic Rubber Hose reference standard SAE-100 R2/EN 853 2SN, which is reinforced by two braids of high tensile steel wire to support high working pressures up to 6020 psi at 3/16" I.D oil resistant tube and ozone resistant, abrasion resistant cover contribute long-terms service life. It can be applied for convey water and petroleum-based hydraulic fluids within -40 °C to 120 °C.
Application:
For high pressure hydraulic oils, fuel, lubricating oils, water and air.

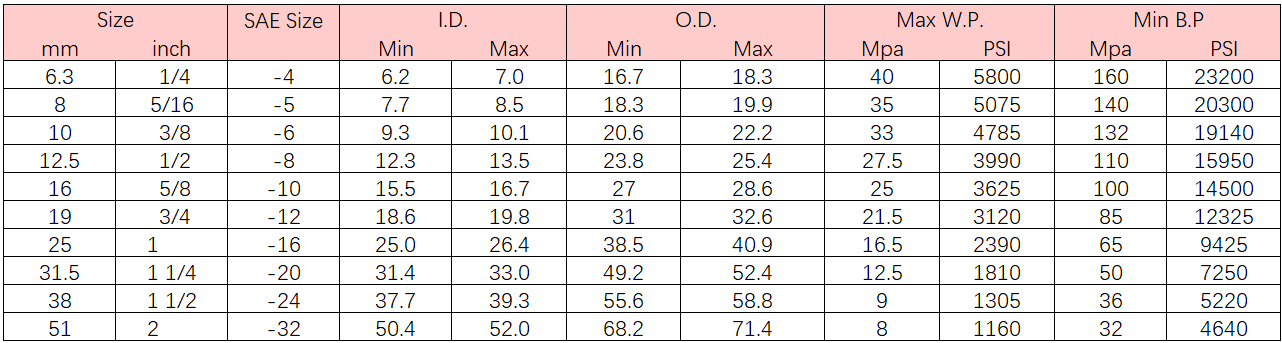

Characteristics
