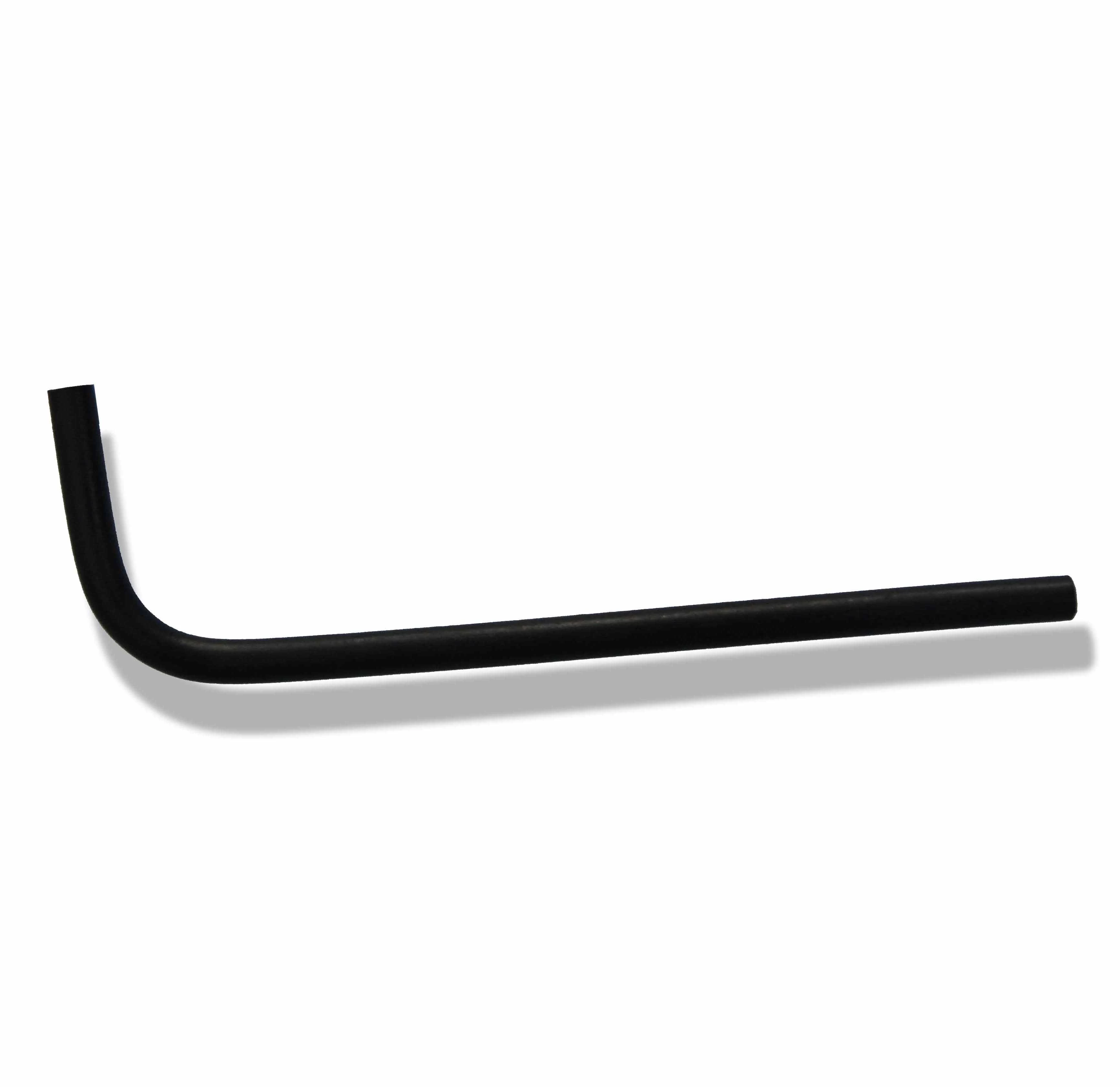

Braided Reinforced Fuel Injection Hose
Part No.: GY-EF006
Part Type: Fuel Hose
Range of size: ￠4～￠12 mm
Material Conformation: FKM/ECO/YARN/ECO
Meet SPEC.: SAE J1737, SAE J30 R9,SAE J30 R12
Main performance:
1. Aging resistance: 150℃; Low temp resistance:-40℃
2. Burst pressure: >80kgf/cm2
3. Ozone resistance: 50pphm*48H
4. Fuel resistance: CE10,CE20,CM15,CM85, OXIDIZED FUEL, FUEL A/B/C/D
5. Permeability meet CARB & EPA, <15grams/m2/day
6. Flammability resistance: Self extinguish at 10 secs.
Appliance Markets:
Braided Reinforcement FKM Fuel Hoses are designed to safely and efficiently handle the higher pressure, temperatures, and chemical problems inherent in hotter running, fuel injected engines with low permeation, gasohol and diesel fuel resistance. Goodyou provides Custom Service for designing and producing Fuel Injection Hose meets SAE J30R9 and meets CARB.

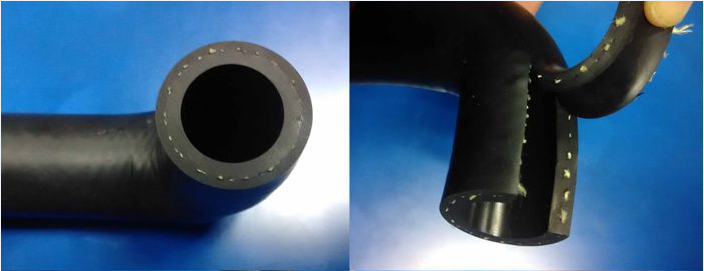

Photos of Product Detailed
About Us
Goodyou supply rubber products in an extensive range of size and types. Our most popular products include fuel hose, air hose, oil hose, water hose, wire harness sleeves, dust proof sleeves, rubber to metal bonding, etc. As a customer driven company, Goodyou always strive for excellence in service and quality. With vast experience in rubber engineering, we are capable to provide customers with solutions to various applications.
Why Choose Goodyou
With more than 10years of experiences in rubber field, we work closely with our customers to select the right rubber material, offer rubber formula designs, prepare drawings of rubber products based on customers’ request, and provide relative documents. We cherish our business relationship with customers. We work with our customers to understand their challenges so as to provide them with customized solutions.
- We develop products only when we fully understand your application needs.
- We offer OEM service
- We do good after-sale service
- We promise to reply your inquiry within 24hours.
Our Commitment
High quality, Low cost, Strong deliver ability, Professional service.
FAQ
1.What is your minimum order?
Because all products are custom made, the minimum order will depend on how much the batch of rubber will yield for the part you are requesting.
2. Which kinds of materials is available to GOODYOU?
We work with many different materials, including EPDM, NBR, CR, ACM, ECO, FKM, silicone, SBR, NR, and flexible PVC & PU, and various types of sponge rubber.
3. What types of rubber parts do you supply?
We supply custom molded, extruded, injected rubber parts. We also accept rubber mold orders for those customers who have their own rubber production lines.
