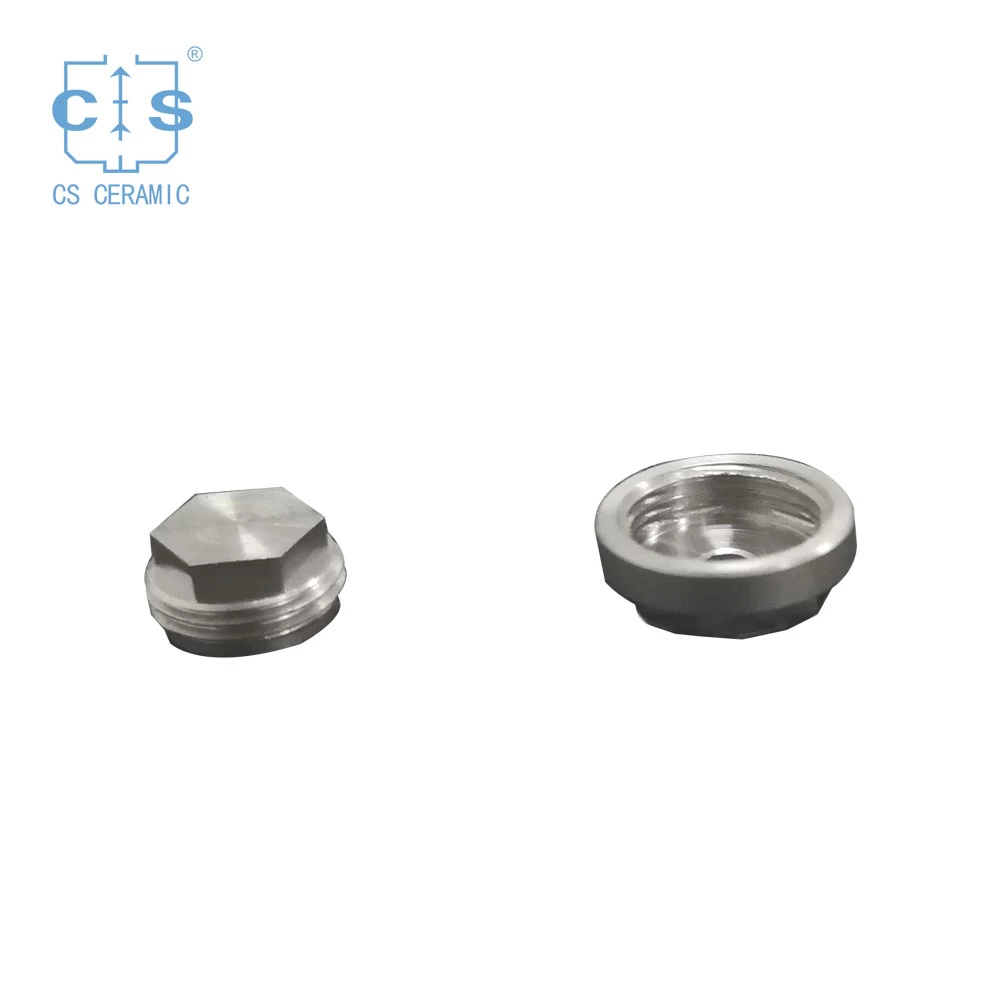

High pressure capsules TA 900815.901 for TA Instruments(Stainless Steel Sample pan)

900815.901 High pressure capsules ,TA stainless steel thread high-pressure crucible (TA thread high-pressure stainless steel crucible), used along with gold plated gasket..Manufacturer for TA crucibles and DSC sample pans .TA Instruments good alternative sample cups .



  • Part NOTA 900815.901
  • MaterialStainless steel
  • Suitable for TA Instruments

Product Item: High pressure capsules for TA Instruments(Stainless Steel Sample pan)


TA stainless steel thread high-pressure crucible (TA thread high-pressure stainless steel crucible), used along with Gold-plated copper sealsTA gold plated sealing plate.


Type High pressure capsule
Suitable for TA
Part NO TA 900815.901
Use with seals TA 900814.901
Material stainless steel
QTY/PKG 5PCS/BOX
Brand CS CERAMIC
Original MADE IN CHINA


Application: volatile liquid sample, liquid phase reaction, reaction in closed system where partial pressure of gas should be maintained.

Maximum working pressure of high-pressure stainless steel crucible is 100bar

Thermal resistance is large, performance differs from normal aluminum crucible, may need to be rectified individually.

High cost. High-pressure crucible should be used along with specified preparation tools.



Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.


Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.


Shipping:    We do international shipping for clients.




Special offer:  Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
