The product description

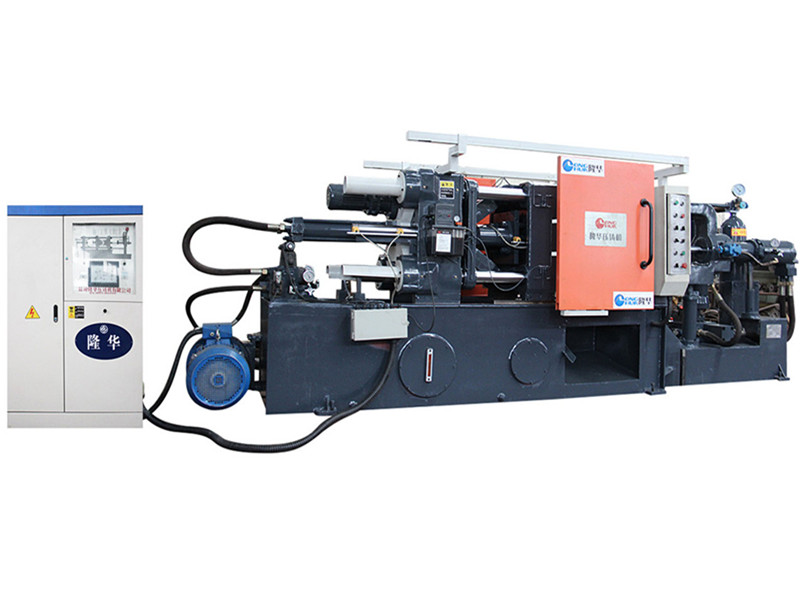

Longhua build die casting industry, quality brand, integrity management, factory direct sales, quality assurance, hard service, quality assurance, service professional, customer satisfaction, professional production die casting machine. Independent fast injection and intensifier accumulator featuring sensitive adjustment and swift response is fit for high quality castings.
Product parameters
LH series of standard parameter table (125T)
|
ITEMS
|
Unit
|
Specification
|
|
HYDRAULIC WORKING PRESSURE
|
MPa
|
7
|
|
CLAMPING FORCE
|
KN
|
1250
|
|
SPACE BETWEEN TIE BARS
|
mm
|
420*420
|
|
Tie Bar Diameter
|
mm
|
￠80
|
|
DIE OPENING STROKE
|
mm
|
350
|
|
INJECTION FORCE(intensify)
|
KN
|
180
|
|
Plunger launch distance
|
mm
|
120
|
|
Injectionposition
|
mm
|
0 -- 140
|
|
PLUNGER DIAMETER
|
mm
|
￠40----￠60
|
|
INJECTION STROKE
|
mm
|
320
|
|
Casting pressure(intensify)
|
MPa
|
143/92/64
|
Casting Fiange Protrusion
|
mm
|
10
|
Casting Fiange Diameter
|
mm
|
110
|
|
MAX CASTING AREA UNDER 40Mpa
|
CM2
|
375
|
|
lnjection Weight(Al)
|
Kg
|
1.6
|
|
Die Height(Min--Max)
|
mm
|
200～500
|
|
EJECTOR FORCE
|
KN
|
100
|
|
EJECTOR STROKE
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
11
|
|
Machine Dimensions (L*W*H)
|
m
|
4.5*1.2*1.5
|
|
Referential Machine Weight For Uplifting
|
T
|
4.5
|
|
Oil Tank Capacity
|
L
|
300
|
WE reserve the right to make any technical improvement without further notice
Die casting machine related die casting products
Our Service
Pre-Sales Service
*Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
*Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
