Product Item:

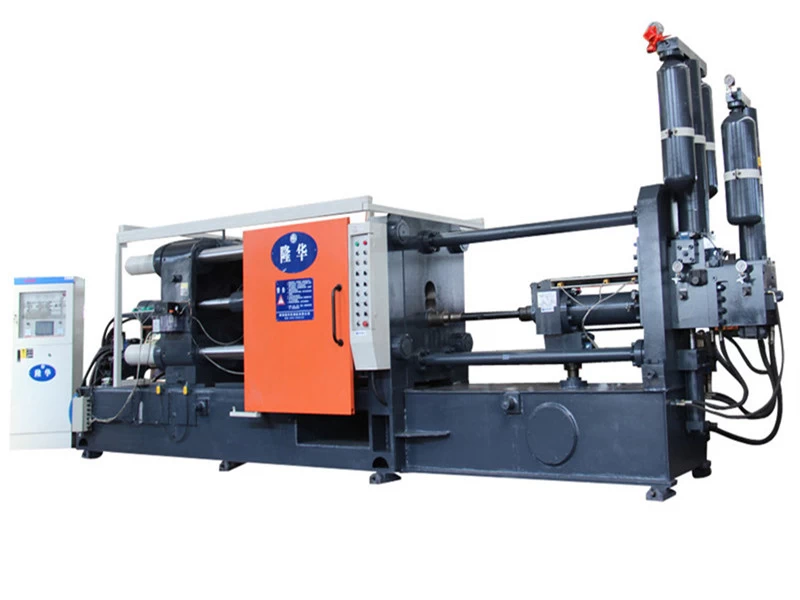

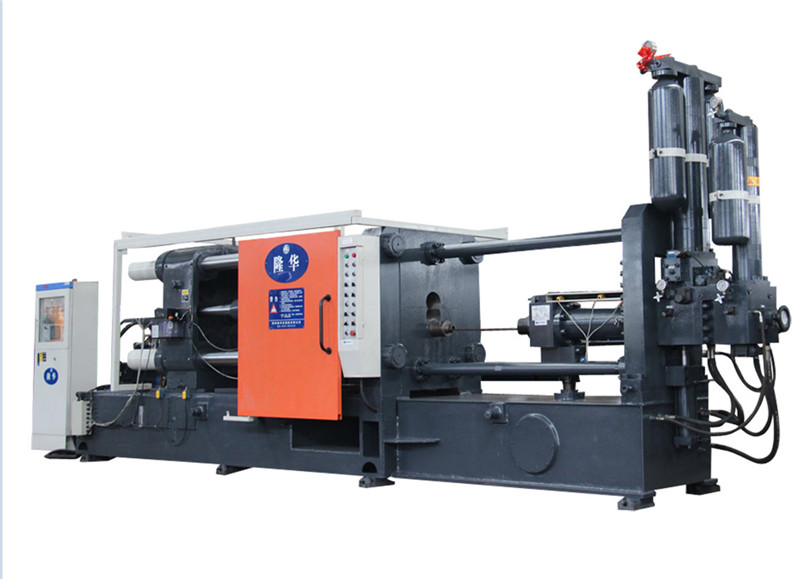

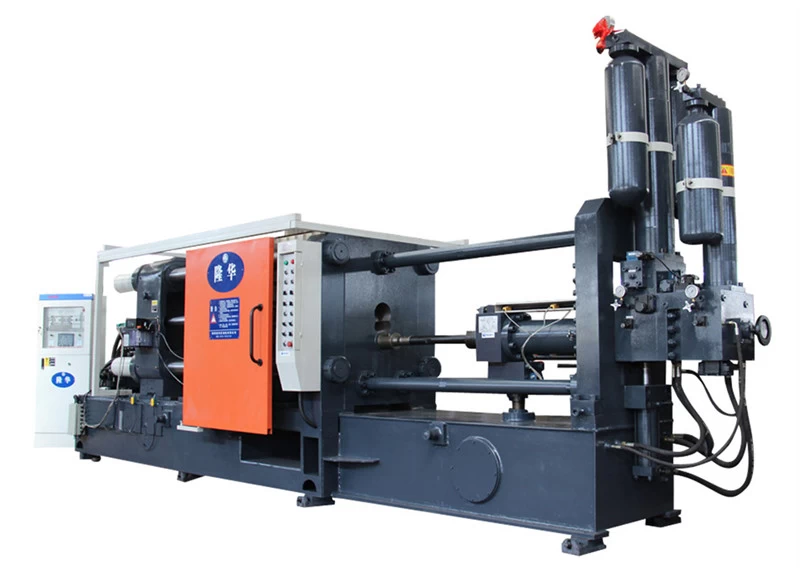

High pressure die casting machines used for factory-made(LH-500T)
Die casting machine, to some extent, due to the advantages of size accuracy and surface smoothness of products, generally no mechanical processing but direct use or small amount of processing, so it not only improves the utilization rate of metal, but also reduces a lot of processing equipment and working hours. Easy casting price; Combination die casting can be used for other metallic or nonmetallic materials. It saves assembly time and metal.
This die casting machine is superior in performance high in productivity and smooth in operation.
LH SERIES OF STANDARD PARAMETER TABLE (LH-500 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
5000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
760*660
|
|
TIE BAR DIAMETER
|
MM
|
￠140
|
|
DIE OPENING STROKE
|
MM
|
450
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
450
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
250
|
|
INJECTION POSITION
|
MM
|
0 -- 220
|
|
PLUNGER DIAMETER
|
MM
|
￠70----￠90
|
|
INJECTION STROKE
|
MM
|
580
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
135/117/92
|
|
CASTING FIANGE PROTRUSION
|
MM
|
15
|
|
CASTING FIANGE DIAMETER
|
MM
|
130
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
1209
|
|
LNJECTION WEIGHT(AL)
|
KG
|
6.9
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
300～800
|
|
EJECTOR FORCE
|
KN
|
240
|
|
EJECTOR STROKE
|
MM
|
140
|
|
MOTOR CAPACITY
|
KW
|
22
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
7.7*2.1*3.1
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
20
|
|
OIL TANK CAPACITY
|
L
|
1200
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
