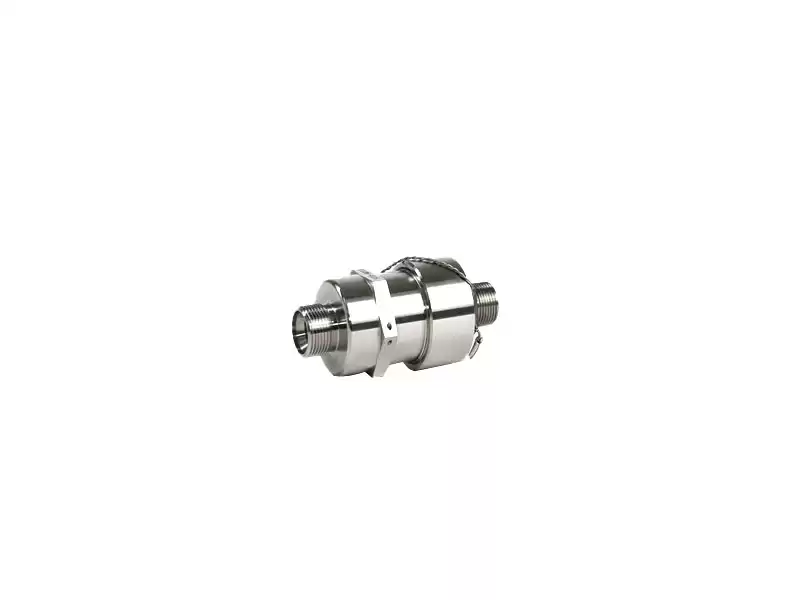

High pressure low flow check valve

Valves used in the fluid control system, from the most simple stop valve to the extremely complex automatic control system used in the various valves, their varieties and specifications are quite wide.The company mainly provides safety valves, solenoid valves, stop valves, check valves, filling valves, pressure relief valves, etc., using medium liquid oxygen, kerosene steam, air, nitrogen, helium gas, etc.It has high and low temperature sealing, high resistance and low flow resistance, lightweight, long life and other characteristics.

Weima valve products are widely used in aviation, aerospace, shipbuilding, high-speed rail, chemical industry and other fields.

Product Origin: China

Shipping Port: Shanghai/Nanjing

Lead Time: 6 Wks






High pressure low flow check valve
Feature

High Pressure,Low Flow Resistance,Light Weight

Pressure bearing capacity: the whole valve parts are made of special materials. The parts are verified by hydraulic strength and air tightness test. The pressure bearing capacity can reach ultra-high pressure

High pressure sealing: the circulation channel sealing can be realized in the high-pressure pipeline, which can act flexibly in ultra-low temperature medium, and the sealing performance is reliable. The sealing performance is designed according to different application environments and technical requirements

Application industry
High pressure check valve are mainly used in aerospace arrow valve and engine valve, shipbuilding and nuclear industry

Technical Parameters

Working Pressure

Minimum: 0.05 MPa~3 MPa

Maximum: 0.6 MPa~23 MPa

Nominal Diameter

Φ4 mm~Φ12 mm

Medium

 Liquid Oxygen,Kerosene Vapor,Air, Oxygen ,Helium,Nitrogen

Weight

 0.08 kg~2.31 kg(±5%)


Product Tags check valve for sump pump          check valves for water          High pressure low flow check valve          High pressure check valve functionn          High pressure check valve
