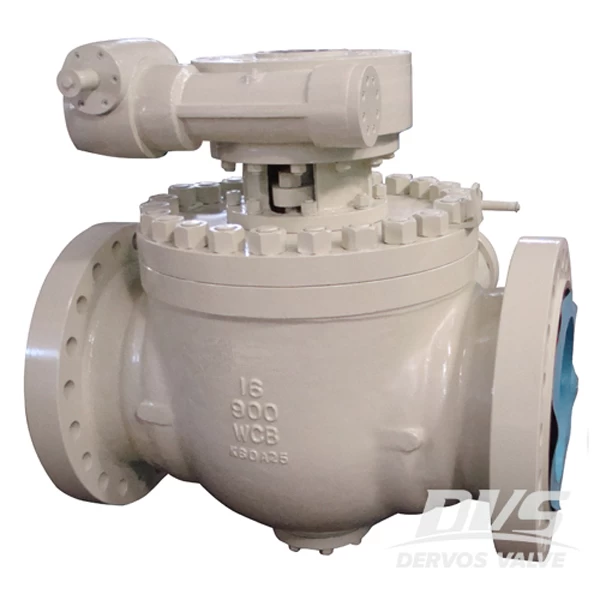

The top entry full port ball valve with drain, vent and sealant injection is designed as per API 6D. The high pressure ball valve has Class 900 raised face flange and gearbox.
Quick Detail
|
Type
|
Ball Valve
|
|
Size
|
16"
|
|
Pressure
|
ANSI 900
|
|
Construction
|
1 Piece
Body, Top Entry, Bolted Bonnet
|
|
Connection
|
Flanged
End
|
|
Operation
Mode
|
Gearbox
|
|
Body
Material
|
A216 WCB
|
|
Design &
Manufacture
|
API 6D
|
|
Pressure
& Temp Code
|
ASME B16.34
|
|
End to End
|
ASME B16.10
|
|
End
Connection
|
ASME B16.5
|
|
Inspection
|
API 6D,
API 598
|
|
Temperature
Range
|
-29β~+200β
|
|
Medium
|
Oil,
Water, Gas
|
Related Knowledge
What is a top entry ball valve and its advantage?
A top entry ball valve is the valve which we assemble from the top side. It has a one single piece body. The less thread connection on the valve body means less weight and leakage paths. Plus, we could have access to the ball part without removing it from the pipeline. The top entry ball valves are often used in the pipeline with less maintenance for internal parts.
Inspection Reports
For each order, Dervos will provide inspection reports to show you the whole inspection process and results. Plus, we will provide material report to let you know that the material we provide is as per standards.
